184 Chapter 5 - 4 cm/14 cm Viewfinders
4 cm Viewfinder
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual

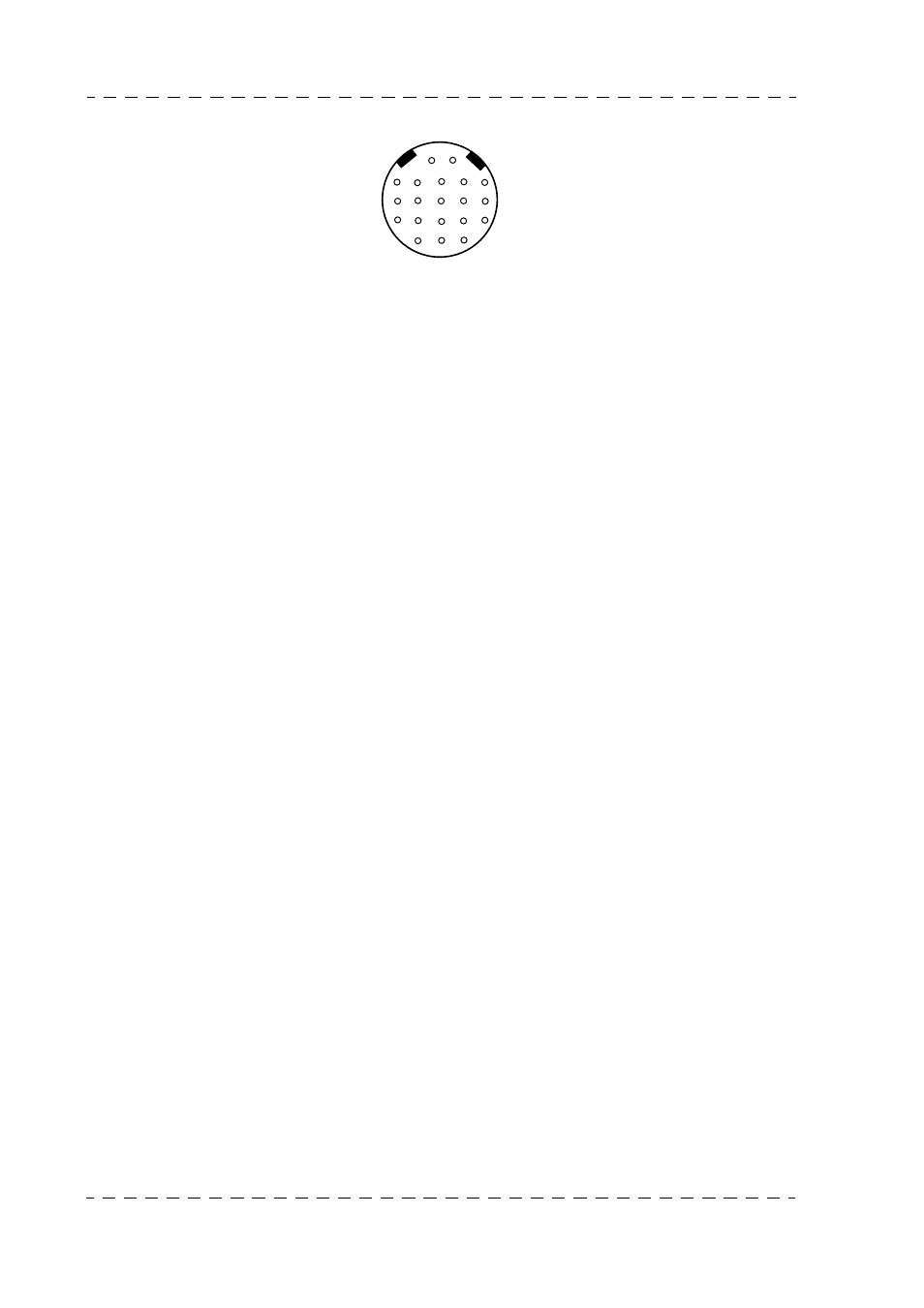

5.1.5 - Viewfinder plug wiring
12
17
20 19 18
13
8
14 15 16
11 10 9
7
2 1
3 6 5 4
1 : VF1 IN (Video)
2 : Video GND
3 : +9,1v IN
4 : GND
5 : Reserved
6 : Shield GND
7 : Audio Control VTR
(Not Used with 1707)
8 : Not connected
9 : MISO 1 OUT
10 : MOSI 1 IN 11 : SCK 1 IN
12 : ON AIR VF IN
13 : SS0 8 IN
14 : Not connected
15 : Not connected
16 : Not connected
17 : Not connected
18 : Not connected
19 : Not connected
20 : Not connected
Plug contact side
