Chapter 3 - Camera - DC/DC Converter 161
External DC-to-DC converter
THOMSON TTV1707 / CCU DT500
User manual
B1707M00LD
September 2000

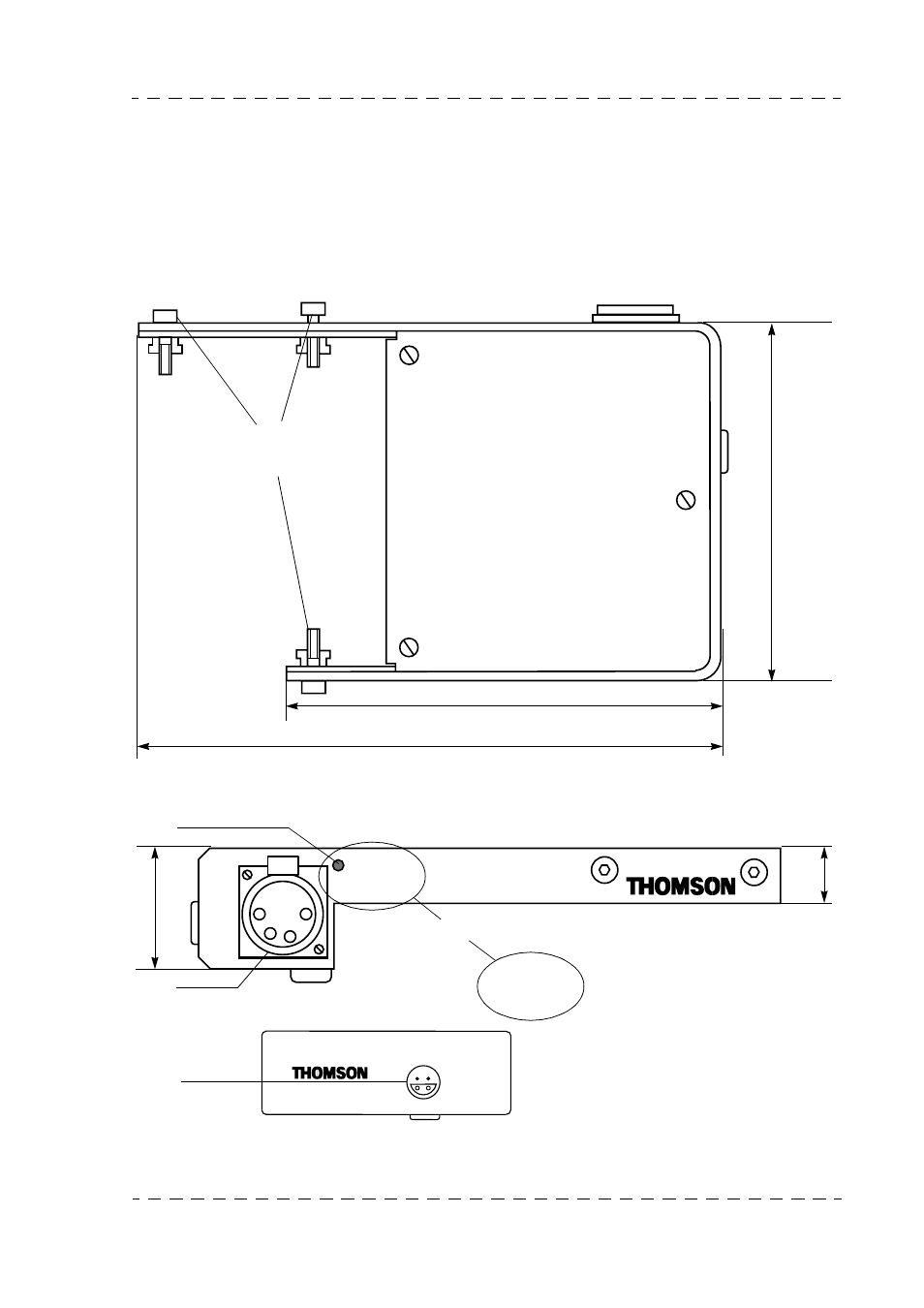

3.2 - EXTERNAL DC-TO-DC CONVERTER
This converter, which is available as an option, is attached to the camera baseplate. It
provides a regulated voltage of 13 V (or 24 V, depending on converter type) and a power of
50 W. The maximum power (50W) produced by the external converter connected on the
camera "DC OUT" is ensured with a maximum triaxial cable length detailed in the SPECI-
FICATIOB chapter.
Attaching screws on
camera baseplate
177
131
110
All dimensions in mm
1
2 3
4
DC OUT
13V / 50W
DC IN
DC OUT
24 V / 50 W
3
17
OR
37
1
2
