130 Chapter 2 - Installation
Mains power supply
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual
2.2 - MAINS POWER SUPPLY
ADAPTING THE EQUIPMENT TO THE MAINS VOLTAGE
According to equipement serial number, the power supplies equipping the Channel
Control Unit are:
• Bivoltage (fitted with an automatic switching system: 100 to 125 V AC and 200 to 240
V AC 50 or 60 Hz). In this case, no adaptations are required in terms of mains voltage.
• Or monovoltage 100 to 125V AC or 200 to 240V AC 50 or 60 Hz.
Before connect the CCU to the mains, to make sure of the equipement operation
voltage. This voltage is indicated on the label located on the CCU rear panel.

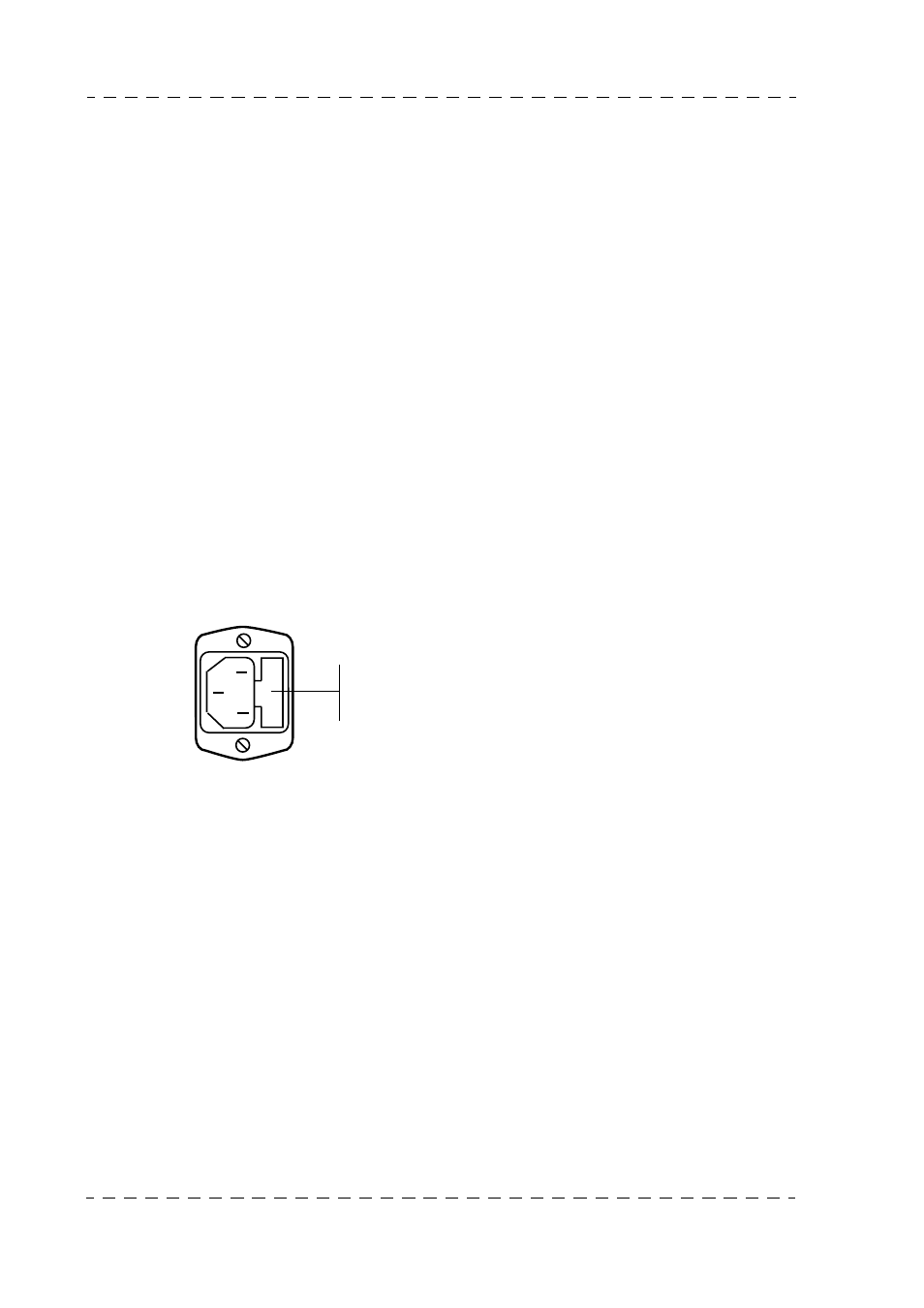

FUSE CHANGING
The fuse is located in the mains connector on the back of the Channel Control Unit.
Disconnect the mains plug for access to fuse.
This connector also contains a spare fuse.
Fuse type:
110V or 220V: Value T 6,3 AH 250V Fuse reference: T9000671
2 fuses:
• Equipment protection fuse.
• Spare fuse.
