140 Chapter 2 - Installation
Equipment phase alignment with a analog installation
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual
Front porch adjustment
Adjustment of the composite signal front porch width is made using the «FRONT
PORCH» thumbwheel.
Note: This setting has no effect on horizontal blanking width.
2.6.1.2 - External reference without blackburst
Link J92 on the «GENLOCK/VIDEO» board must be set to «OFF».
In this case, the output composite signal carrier is internally slaved with respect to the sync
signals.
The reference signal should be a black video signal and terminated with 75 Ohms
load.
With the Z160 soft version ≥ 47017011/D (identified 011/D on the circuit), S170 must
be set to high position (FINE) only.
With the Z160 soft version ≤ 47017011/C (identified 011/C on the Z160 circuit), S170
enable a bar pattern on all the Channel Control Unit outputs.
Horizontal phase alignment of the analog output signal
The horizontal phase of the composite signal with respect to the external reference signal
is adjusted using the «
ΦH COARSE» and «ΦH FINE» thumbwheels:
• « ΦH COARSE»: Adjustment in steps of 592 ns.
• « ΦH FINE»: Adjustment in steps of 37 ns.

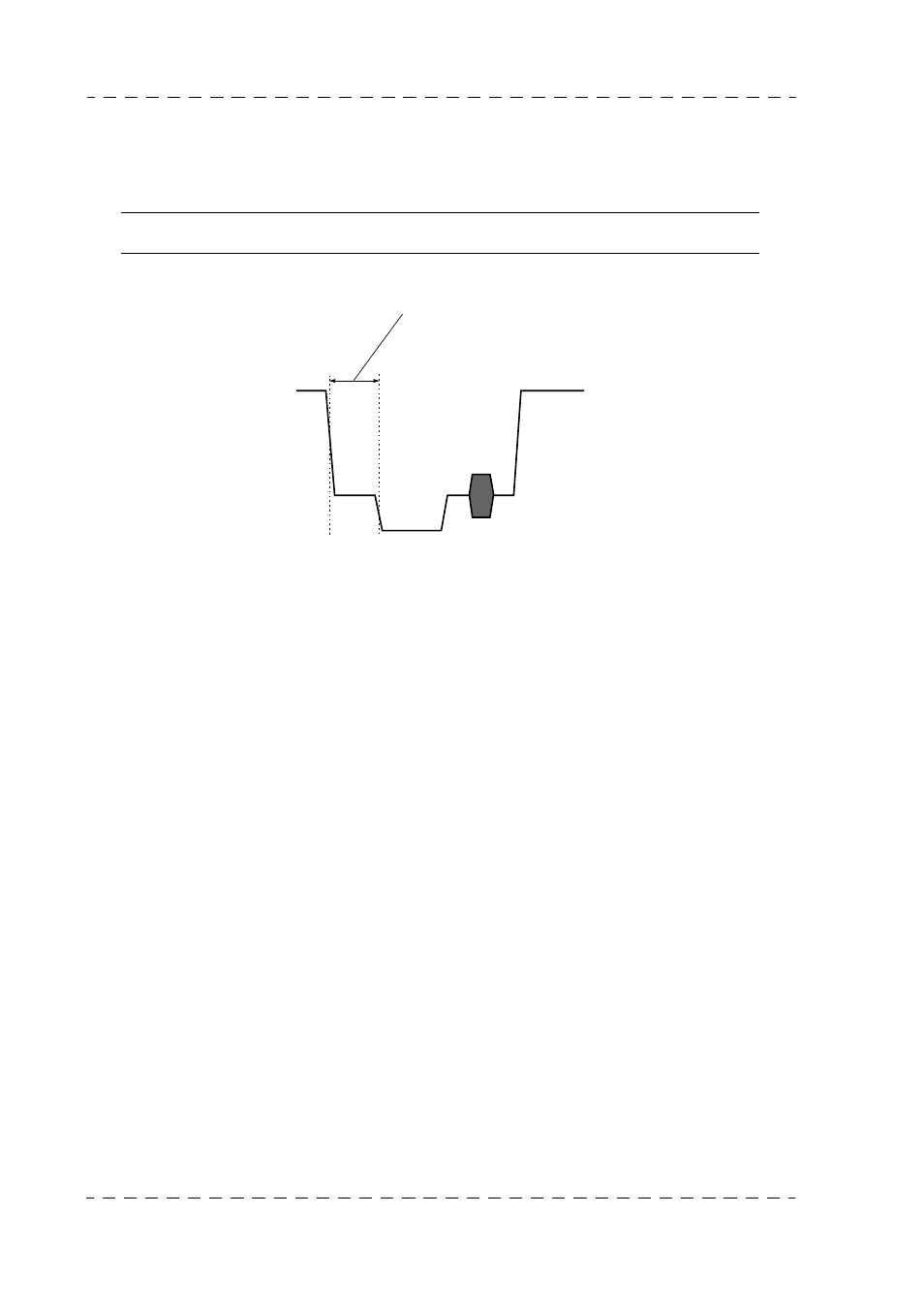

PAL 1,5 ±0,3 µs (1,65 µs ±0,1 µs PAL I)
NTSC 1,5 ±0,1 µs
Composite outputs 1 and 2
