Chapter 3 - Camera - DC/DC Converter
153
Camera Description
THOMSON TTV1707 / CCU DT500
User manual
B1707M00LD
September 2000

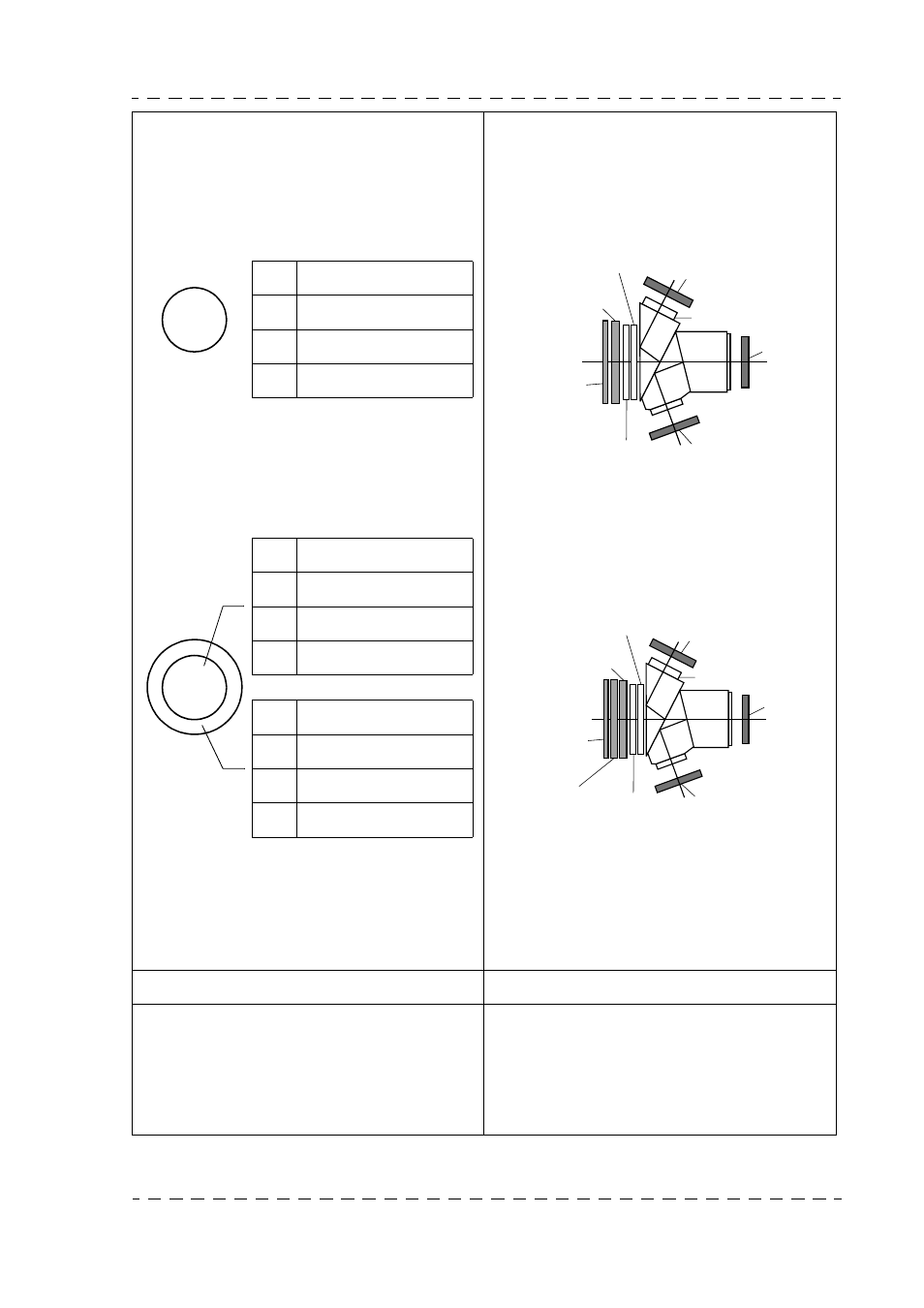

2. Filter wheel(s) control(s)
• If the camera is fitted with a filter
wheel:
The manual control is used to set one
of the following density filters:
• If the camera is fitted with two
filter wheels:
The motor-driven controls are used to
select one of the following filters:
The filter wheels can then be actuated by
the Cameraman’s operation functions or
from the control panel. However, manual
rotation remains possible and is
electrically assisted.
3. Carrying strap attachment
4. Camera identification
The camera is identified on installation by
means of figures delivered with the equip-
ment.
The camera is attached by means of a
magnetised fitting.
2
4
1
3
1 :
Clear
2 :
1/4 (T = 25 %)
3 :
1/16 (T = 6,3 %)
4 :
1/64 (T = 1,6 %)
2
4
1
3
1 :
Clear
2 :
1/4 (T = 25 %)
3 :
1/16 (T = 6,3 %)
4 :
1/64 (T = 1,6 %)
A
C
D
B
A :
Clear
B :
Star 4
C :
Strong Fog
D :
Light Fog
LOWPASS
FILTER
BLUE
CCD
GREEN
CCD
RED CCD
INFRARED
FILTER
PROTECTION
GLASS
DENSITY
FILTERS
LOWPASS
FILTER
BLUE
CCD
GREEN
CCD
RED CCD
INFRARED
FILTER
PROTECTION
GLASS
DENSITY
FILTERS
EFFECT
FILTERS
