164 Chapter 3 - Camera - DC/DC Converter
Camera Operation
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual
3.3.2 - Cameraman operating functions

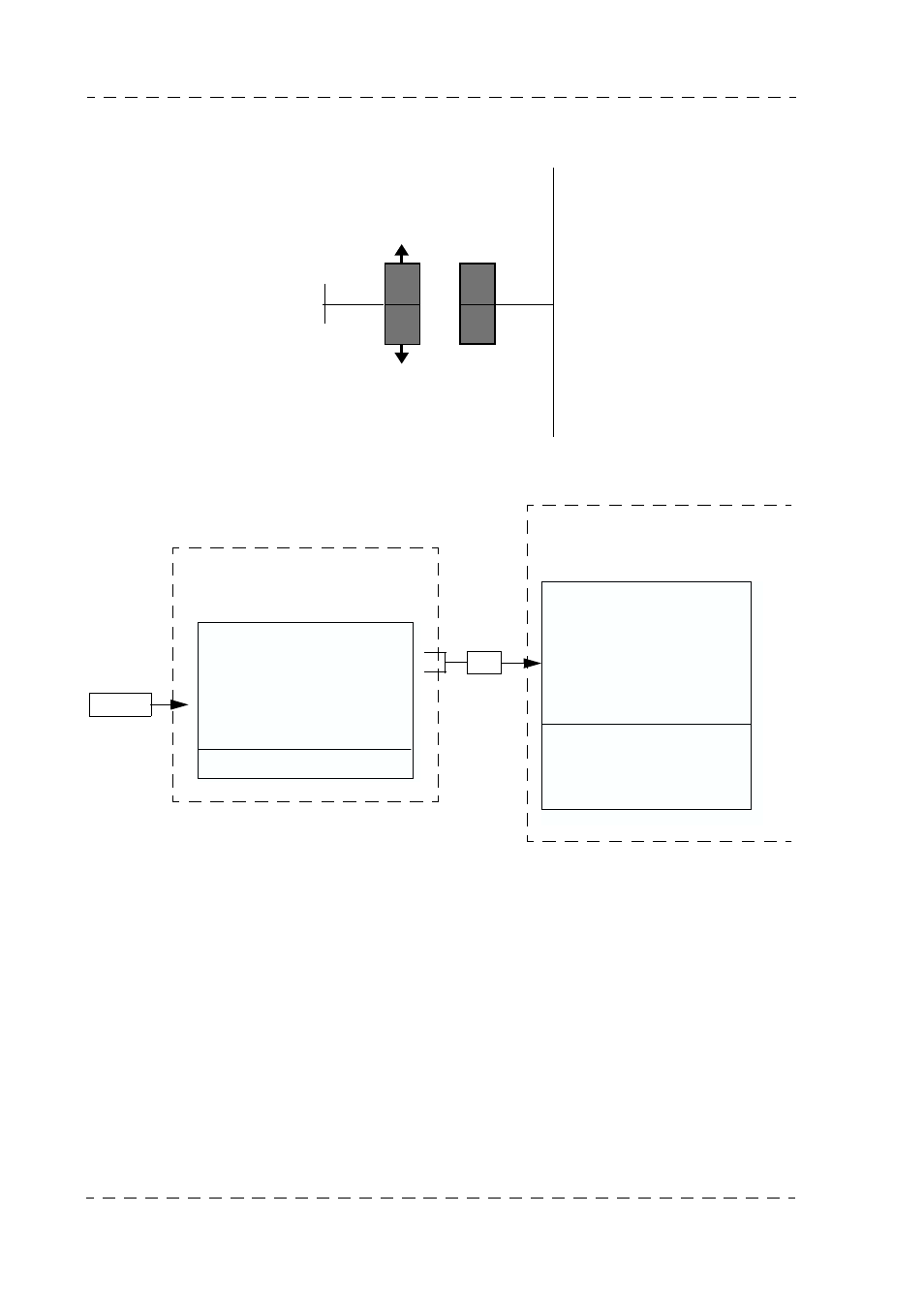

3.3.2.1 - Function tree structure
3.3.2.2 - Description of functions
EFFECT FILTER: Effect filter wheel electrical control
• Position A: Clear
• Position B: Star 4
• Position C: Strong fog
• Position D: Light fog
EXT SELECT: Lens «RET» button operating mode:
• PSH: The «RET1» or «RET2» video is displayed in the viewfinder while the «RET»
button is pressed down.
• Modification of selected
function value.
• Permanent selection
"MENU -" or momentary
selection "MENU +" of the
RET1 or RET2 video
displayed in the viewfinder
if the operating functions
are not displayed. The
"RET1" or "RET2" signal
selection is made by the
"VIDEO RET" switch. +
-
MENU
Display and selection of
operating functions
P R G M M A R K E R S
- - - - - - - - - - - - - - - - - - - - -
> E X I T
C R O S S C E N T E R : - - -
S A F E Z O N E : - - -
O P P O S I T E F O R M A T : - - -
T O P B A R G R . : - - -
B O T B A R G R . : - - -
B O X : - - -
H P O S B O X : - - -
V P O S B O X : - - -
W I D T H B O X : - - -
H E I G H T B O X : - - -
+, -
> S E L E C T M A R K E R : - - -
P R G M M A R K E R 1 : - - >
P R G M M A R K E R 2 : - - >
V F S E L E C T : - - -
M O N S E L E C T : - - -
E X T S E L E C T : - - -
E F F E C T F I L T E R : - - -
N E U T R A L F I L T E R : - - -
F ↑, F↓
Refer to 3.3.2.2 - Description
of functions paragraph
Refer to 3.3.2.3 - Marker func-
tions paragraph
