8 Microphone headset receptacle
(continued)

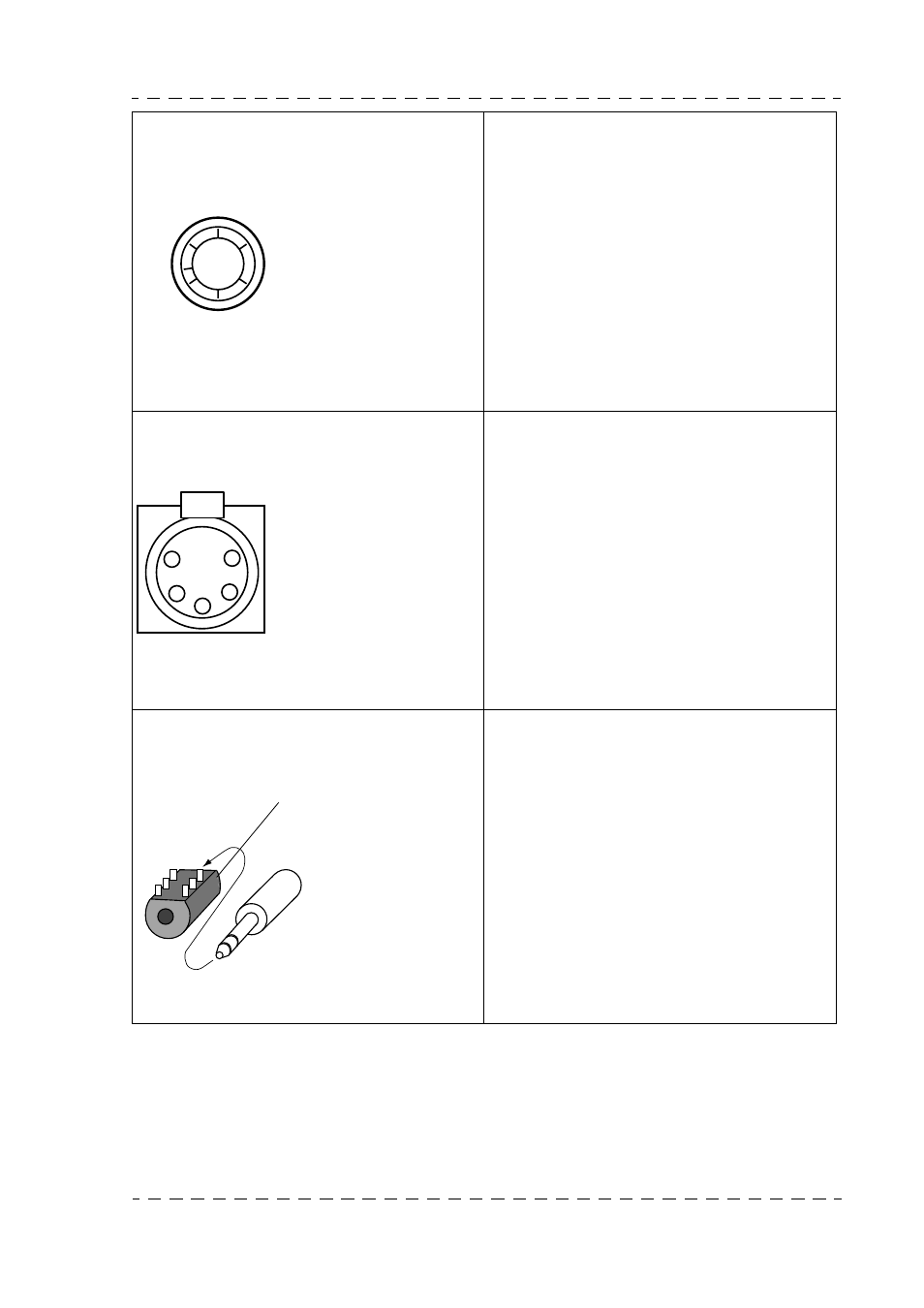

«TUCHEL» receptacle
8 Microphone headset receptacle
(continued)
«LR5» receptacle
8 Microphone headset receptacle
(continued)
«JACK» type receptacle
Pins 4, 5 and 6 of the receptacle are not con-
nected.
!
"
#
$
Receptacle
Type: T2121.000
P/N: 91941906
Corresponding socket
Type: T2120.001
P/N: T1000.071
1 : RIGHT EARPHONE
2 : MIC GND
3 : MIC X 4 : MIC Y
5 : LEFT EARPHONE
6 : EARPHONE GND
!
#
"
Receptacle
Type: EFD C05+ Z -XLR-A3
P/N: T9003628
Corresponding socket
Type: XLR-5-12C
P/N: T1000095
1 : MIC Y
2 : MIC X
3 : GND 4 : LEFT EARPHONE
5 : RIGHT EARPHONE
!
$
#
"
Receptacle
Type: JACK S2-BBB/BLK
P/N: 91616196
1 : EARPHONE- (GND)
MIC - (GND)
2 :EARPHONE+
3 :MIC +
Corresponding socket
Type: JACK FLJCN
P/N: T1004861
