152 Chapter 3 - Camera - DC/DC Converter
Camera Description
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual

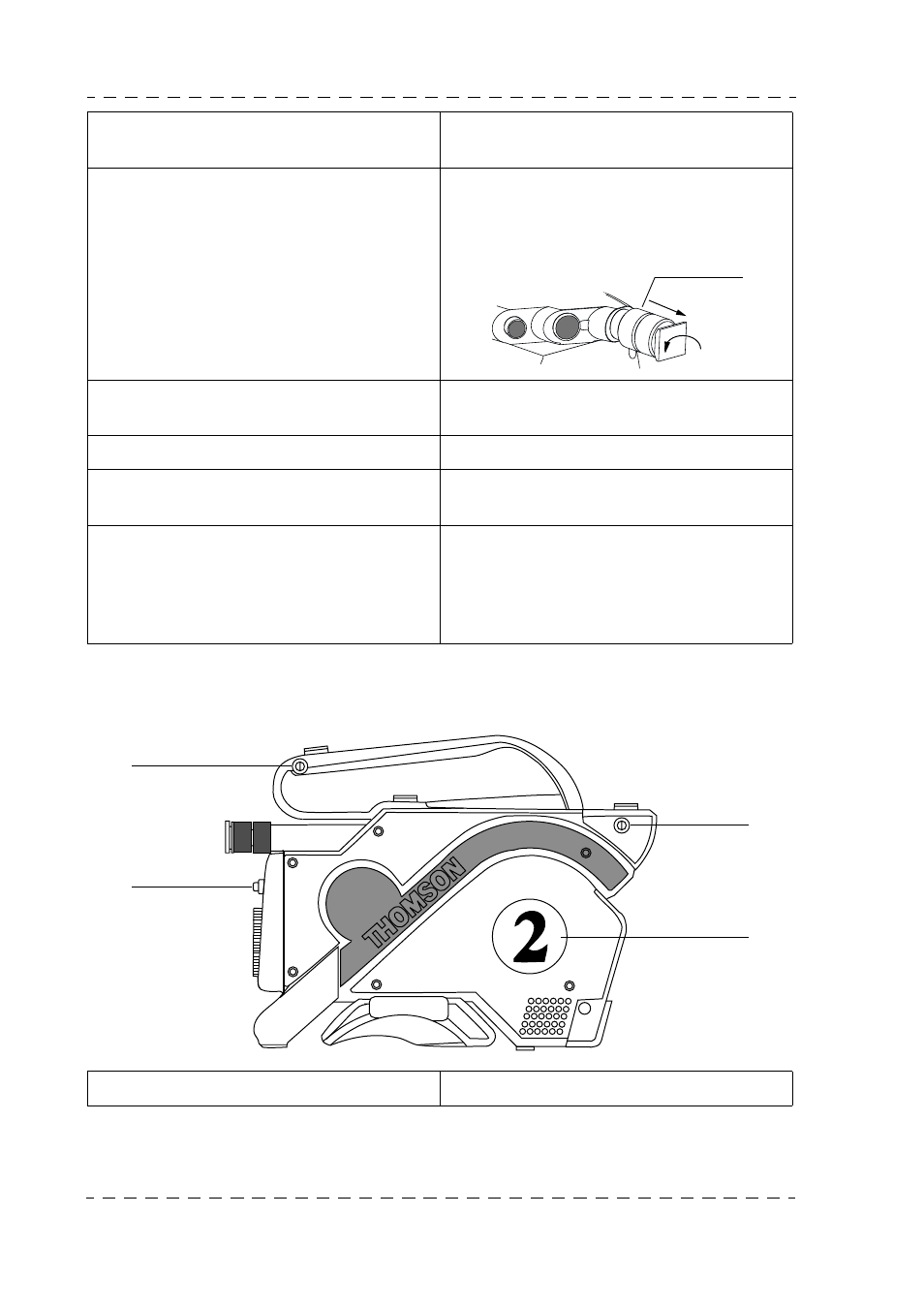

3.1.3 - Left-hand side
9. Viewfinder mounting pillar clamping ring Loosen this ring to adjust the visor longitu-
dinally.
10.Viewfinder mounting pillar To uncouple the pillar from the camera body,
loosen ring (9) and pull the pillar by pivoting
it one-quarter of a turn to the left (as shown
by arrow).
11.4 cm viewfinder clamping ring Unscrew this ring to enable lateral adjust-
ment of the viewfinder.
12.Lens clamping ring
13.Should strap locking pushbutton. To unlock the shoulder strap, press this but-
ton.
14. Sliding shoulder strap. To adjust the shoulder strap:
• Press pushbutton (13).
• Slide the shoulder strap.
• Release the pushbutton.
1. Carrying strap attachment.
9
1
3
2
4
