116 Chapter 1 - Specifications
Presentation
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual
1.2 - PRESENTATION
Wide aperture prism type optical separator (f/1.4)
The separator is fitted with:
• A 4-position density filter wheel.
• A 4-position effect filter wheel.
• 1 quartz filter, suppressing colorimetric errors due to reflected polarised light.
• 1 anti-aliasing optical filter.
• 1 infrared filter.
High performance video processing chain
Gain in steps of - 3 dB to + 21 dB.
Digital video processing over 12 bits consists mainly:
• Automatic Black Shading Correction.
• White Shading Correction.
• Automatic pixel correction:
Pixel correction is intended to reduce non-uniformity between pixels. This device
corrects the pixels which may have become defective with time.
• Automatic flare compensation.

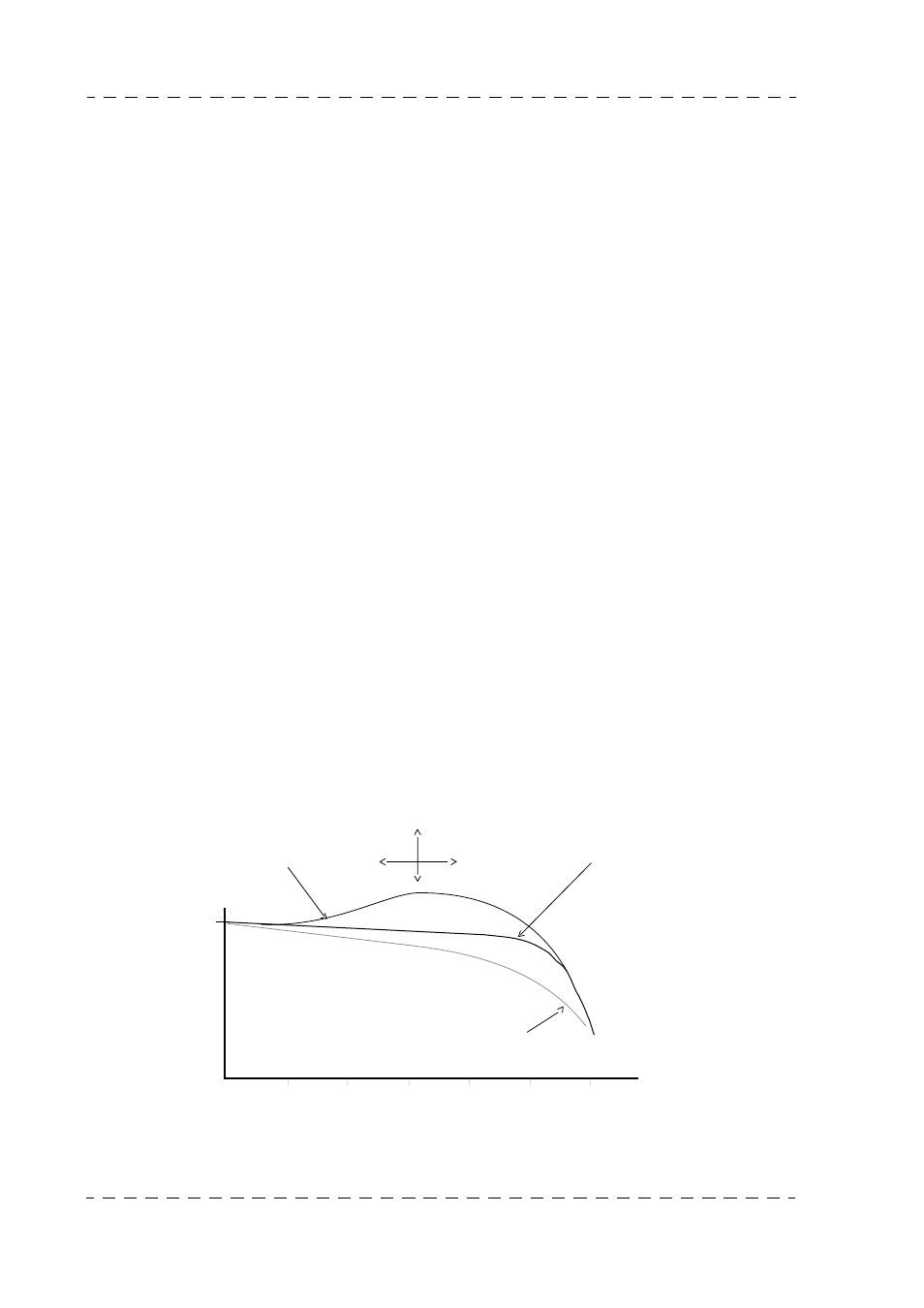

• Contour correction:
This correction includes a correction of “aperture” centred on 6-7 MHz intended to
compensate for the loss in modulation depth up to 6 MHz, and a “physiological”
correction centred on 3-4 MHz intended to provide image relief. This correction is
generated by the three R,G,B channels.
! " # $
Physiological
correction
detail
centring
Aperture
correction
MHz
100 %
Video signal with contour and lowpass optical filter
