128 Chapter 2 - Installation
Installation of ccu in rack
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual
8. Place the accessory in the accessory rack (accessory attachment is to be adapted
according to its type and brand).
9. Place the CCU DT500 + accessory assembly in the 19" rack at the location required
and attach it using both lugs.
2.1.2 - Fitting of two Channel Control Units in the rack
EQUIPMENT AND TOOLS REQUIRED:
• Reference kit BDT05700AA.
• One screwdriver.

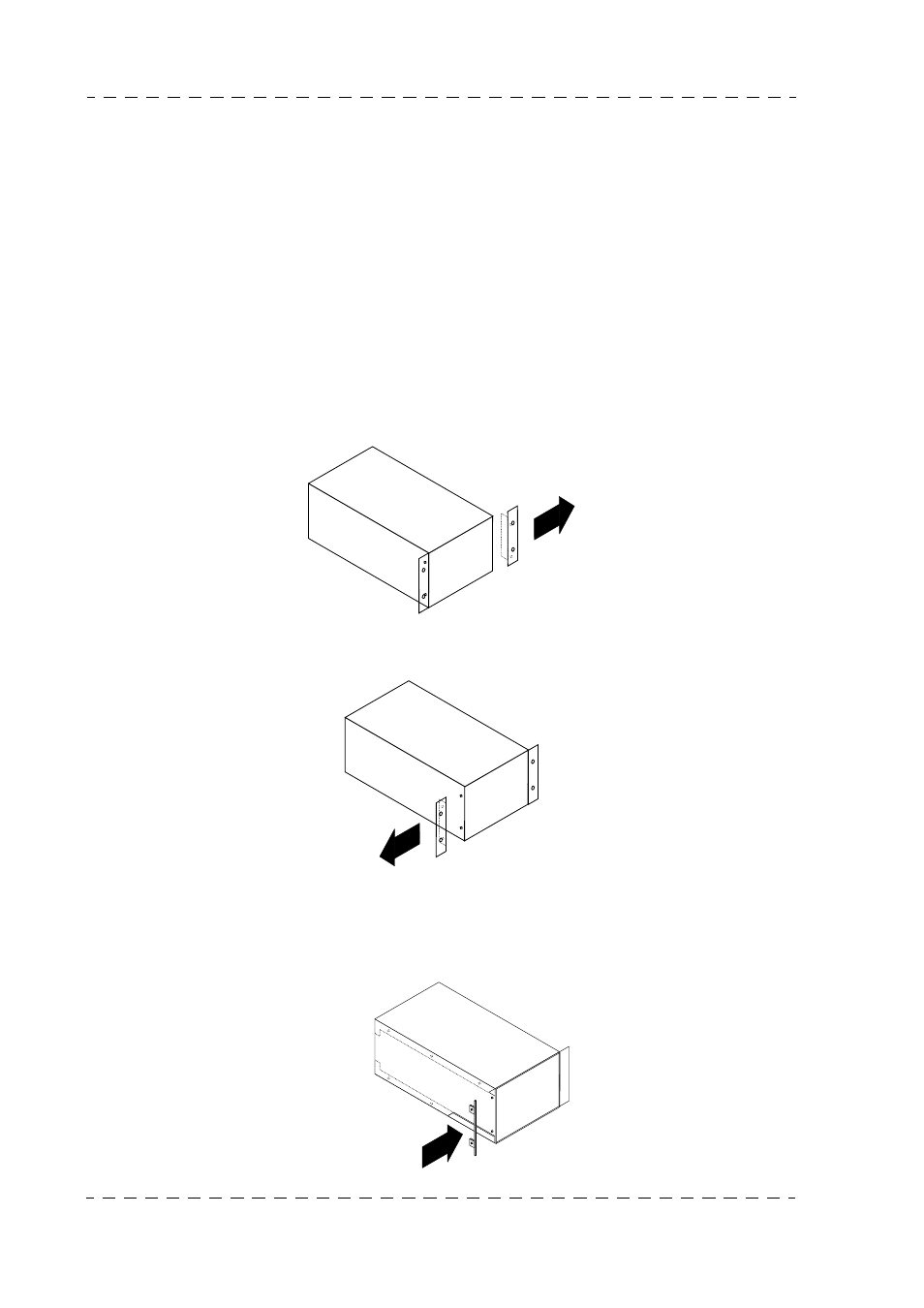

1. Remove the right-hand lug from the CCU DT500 located to the left by unscrewing
both the attaching screws.
2. Remove the left-hand lug from the CCU DT500 located on the right by unscrewing
both the attaching screws.
3. Remove the CCU DT500 power supply located to the left by unscrewing the 3
attaching screws.
4. Place the front cover against the left-hand side of the CCU DT500 located to the right
(only one position correct).
