162 Chapter 3 - Camera - DC/DC Converter
External DC-to-DC converter
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual

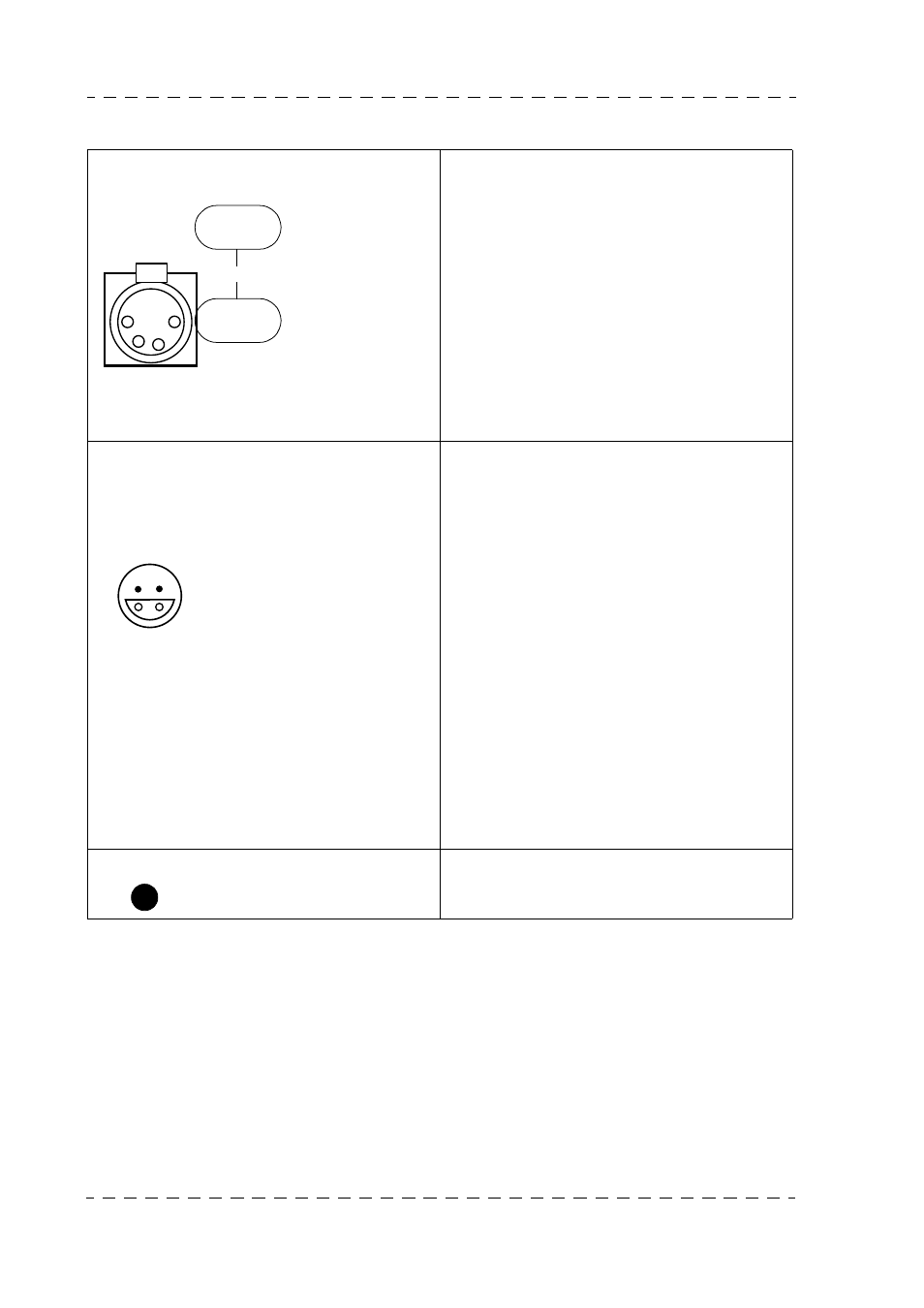

1. «13V/50W» or «24V/50W» receptacle
Regulated voltage output.
The voltage on output 4 of the connector is
13 or 24 V depending on the type of conver-
ter. The maximum power produced is 50
Watts.
Note:
The maximum power (50W) produced by
the external converter connected on the
camera "DC OUT" is ensured with a maxi-
mum triaxial cable length detailled in the
SPECIFICATION chapter.
2 «DC IN» receptacle
Connection of cable connecting the
converter to the camera.
Converter supply:
The voltage received on this receptacle
varies between 30 V DC and 52 V DC
depending on:
• The length and type of the triaxial cable
• The power consumed by the converter.
The - 5 V is used to delay starting of the con-
verter on camera power on to prevent the
Channel Control Unit power supply tripping
out.
If a DC-to-DC converter (even unloaded) is
connected to the camera while operating, the
safety system will cause the camera to trip
out.
The converter must be connected to the
camera with camera power off.
3 Light: the DC voltage is present on the con-
verter output.
1
2 3
4
DC OUT
13V / 50W
Receptacle
Type: XLR-4-31
P/N: 91538047
Corresponding socket
Type: XLR-4-12C
P/N: 91647565
DC OUT
24V / 50W
OR
1 : GND
2 : N.C. 3 : N.C.
4 : +V OUT
DC IN
1
3
2
4
Receptacle
Type: EMD04+Z-ERNC
P/N: T9003619
Corresponding socket
Type: FFA-1S-304-CLAC52
P/N: T9003618
1 : +48V IN
2 : -5V IN 3 : GND
4 : GND
