Chapter 3 - Camera - DC/DC Converter 163
Camera Operation
THOMSON TTV1707 / CCU DT500
User manual
B1707M00LD
September 2000
3.3 - CAMERA OPERATION
To operate the camera from the OCP40 or OCP42, refer to the «OCP40 / OCP42» manual.

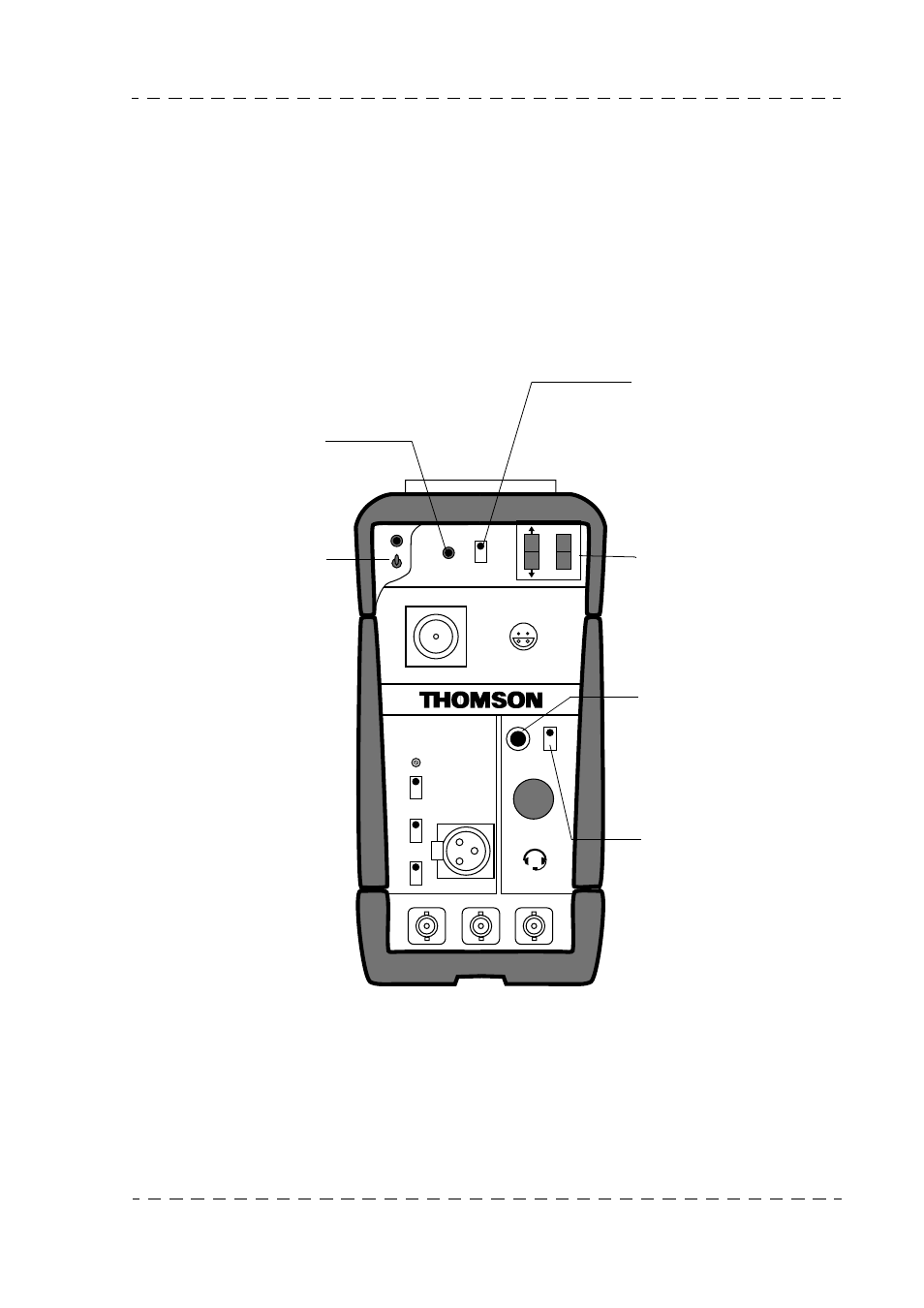

3.3.1 - Cameraman’s controls
CAM
CALL VIDEO RET
ON
OFF
1
2
+
- MENU
TRIAX DC OUT
SENSITIVITY
REAR CAM
SPLIT HEAD
-40dB
-60dB
48v
OFF
MIC IN
LEVEL (ON)
ON
REM
MONITOR RET. 1 PROMPTER / RET. 2
1
2
3
Call to panel operator
Camera on/off
Selection and modifica-
tion of operating func-
tions. Refer to 3.3.2 -
Cameraman operating
functions paragraph
External video number
selection, RET1 or
RET2, displayed in
viewfinder when the
external video is selected
using the «RET» button
on the lens. The display
is either permanent or
momentary. Refer to
3.3.2.2 - Description of
functions paragraph
Headset earphone
volume adjustment.
Microphone- headset on/
off:
• «ON»: The
microphone is in
service.
• «REM»: the camera is
placed in service
using the «VTR»
control on the lens.
• «(ON)»: the
microphone is in
service.
The «ON» and «REM»
positions are stable. The
«(ON)» position is unsta-
ble.
