126 Chapter 2 - Installation
Installation of ccu in rack
B1707M00LD
September 2000
THOMSON TTV1707 / CCU DT500
User manual

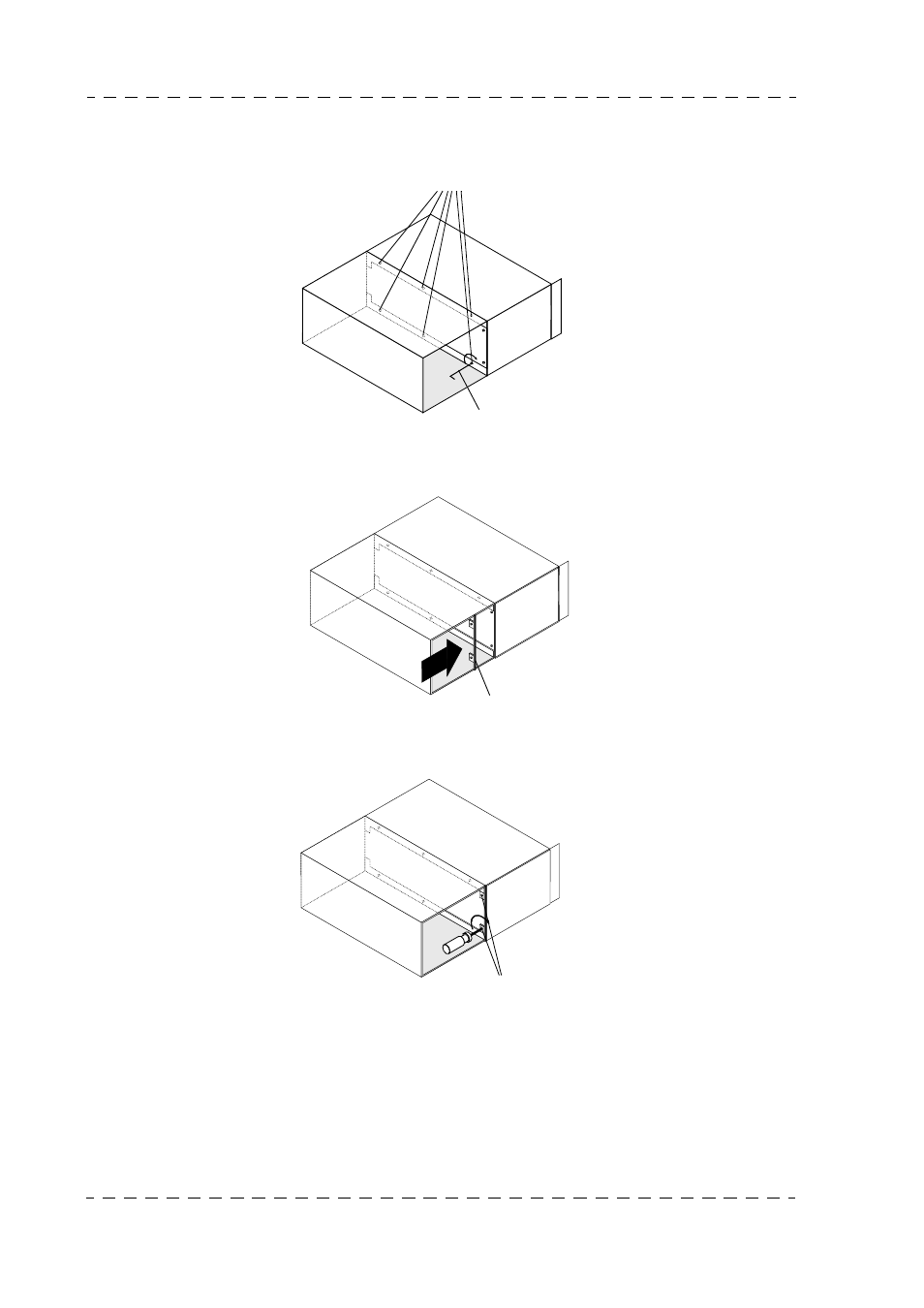

3. Tighten the six 4 mm dia. screws with the allen wrench from inside the accessory
rack to attach it to the CCU DT500.
4. Place the front cover panel against the left-hand edge of the CCU DT500 (only one
position is correct).
5. Tighten both the 3 mm dia. screws with the screwdriver from inside the accessory
rack to fit the front cover.
++7
6 screws F/90HC M4
allen wrench
++7
front cover panel
++7
2 screws F/90 M3x4
