Chapter 3 - Camera - DC/DC Converter 167
Camera Operation
THOMSON TTV1707 / CCU DT500
User manual
B1707M00LD
September 2000

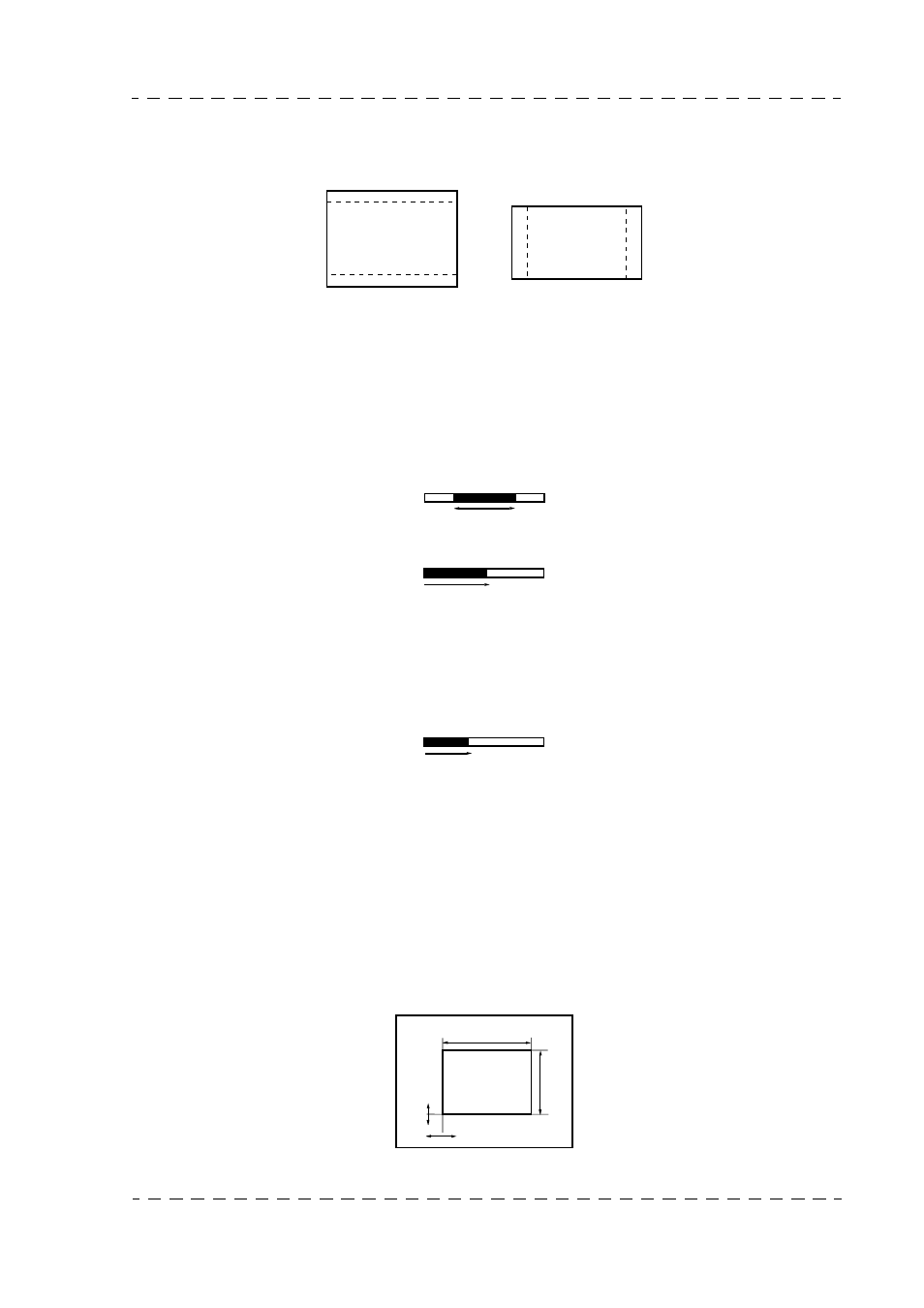

OPPOSITE FORMAT: Placing of two dotted lines in service.
• Vertical, format 4/3 marker if camera is 16/9.
• Horizontal, 16/9 format marker if camera is on 4/3.
TOP BARGR.: Top bargraph on/off.
• OFF: No bargraph.
• Z.CEN: Indicates zoom position in centre representation.
• Z.LEF: Indicates zoom position in LH representation.
BOT BARGR.: Bottom bargraph selection and on/off.
• OFF: No bargraph.
• FOCUS: Focusing ring position indicator (only if the lens is fitted with a position repeat
device):
BOX: Adjustable box on/off.
H. POS. BOX: Adjustment of horizontal position of bottom left-hand corner of adjustable
box.
V. POS. BOX: Adjustment of vertical position of bottom left-hand corner of adjustable
box.
WIDTH BOX: Adjustable box width adjustment.
HEIGHT BOX: Adjustable box height adjustment.
Opposite format Opposite format
4/3 16/9
HEIGHT
WIDTH
H. POS.
V. POS.
