224 Chapter 6 - Version SPORTCAM TTV1657D
Description
B1685902AC
September 2000
THOMSON EFP1685/CCU1686
User manual

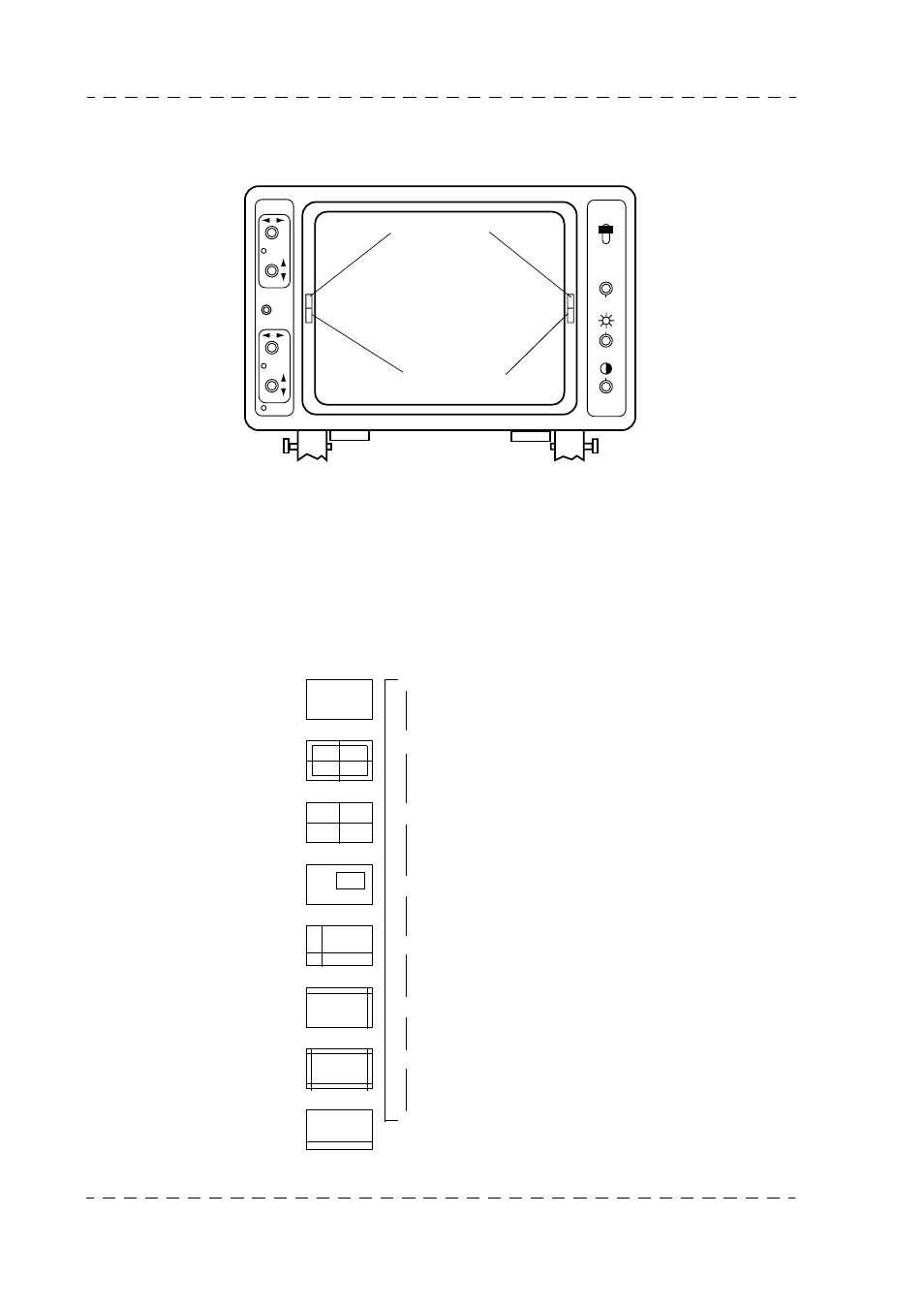

6.2.4 - B/W 17 cm viewfinder
6.2.4.1 - Graticle keyboard
The graticle is used to inlay horizontal and vertical lines in the video image.
Depending on the function selected, these lines are either preset or adjustable; to distin-
guish these more clearly, whatever the image content, they are composed of a black line
followed by a white line. Eight functions appear in the following sequence:
GRATICULE
ON2
SELECT
PRESET
ON1
ON
OFF
PEAKING
controls
graticle
keyboard
ON AIR1
ON AIR2
0 No lines on image
(graticule off position)
1 Commercial format + central
cross (preset -
"PRESET" light lit)
2 Centre cross (preset -
"PRESET" light lit)
3 Rectangle (adjustable)
4 Graticle 1 (adjustable)
5 Graticle 2 (adjustable)
6 Commercial format (preset -
("PRESET" light lit)
7 Subtitle (preset -
"PRESET" light lit)
0
1
Fixed
2
Fixed
3
Adjustable
4
Adjustable
5
Adjustable
6
Fixed
7
Fixed
- (preset - "PRESET" light lit)
