Chapter 6 - Version SPORTCAM TTV1657D 213
Installation
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000

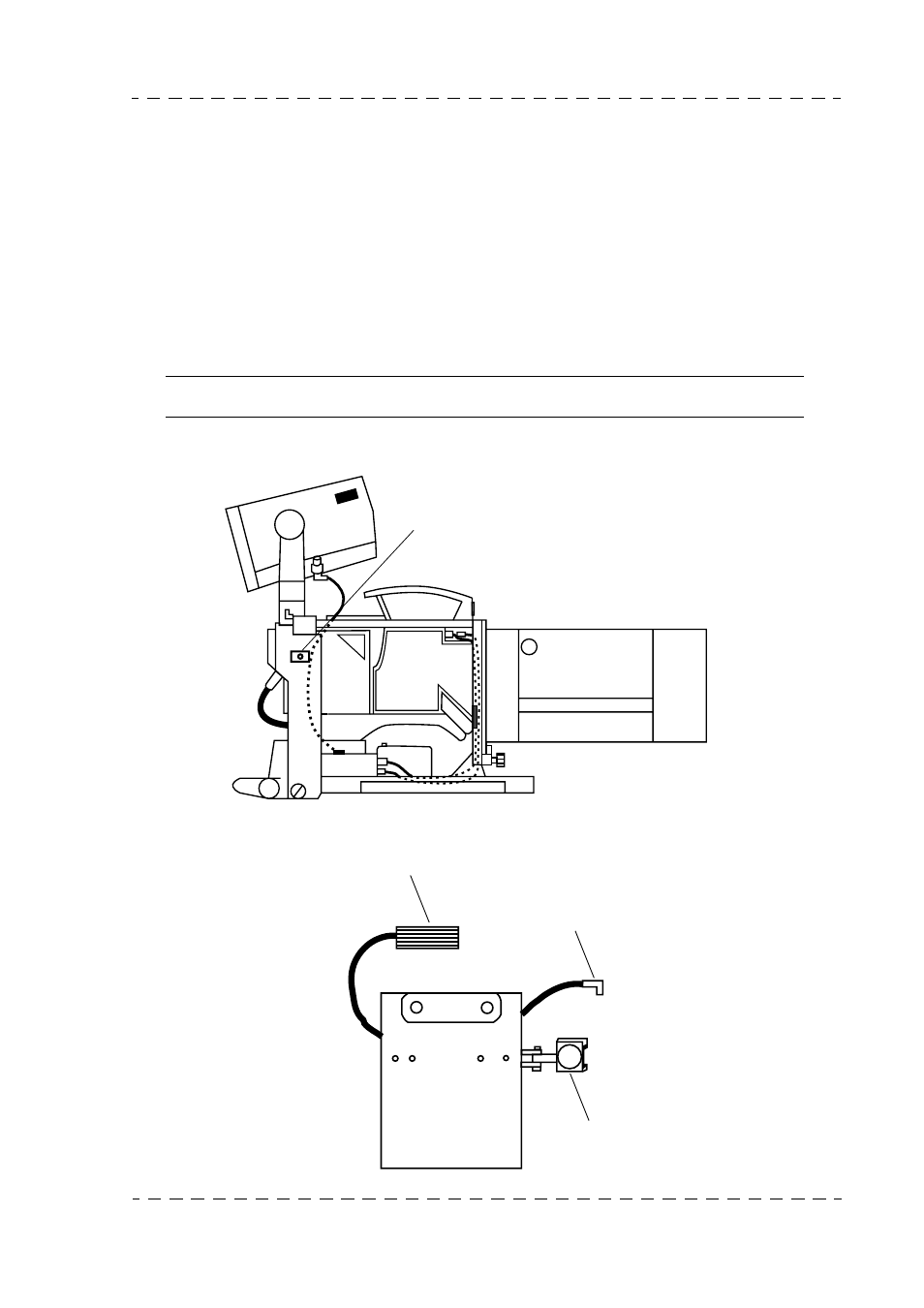

6.1.5 - Fitting the script-holder
1. Fit the holder on the accessory-holder clip on the left or right of the chassis.
Warning: As required, it is necessary to remove the holder arm and to fit it on the other
side.
2. Tighten the script-holder knurled ring.
3. Connect the plug to the «LIGHT» receptacle on the left-hand side of the casing.
NOTE: The lamp power must not exceed 5 W at 12 V.
LENS
CAM V/F
Accessory-holler clip
Dovetail
wheel
Plug
Lamp
