Chapter 6 - Version SPORTCAM TTV1657D 221
Description
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000
Lens receptacle

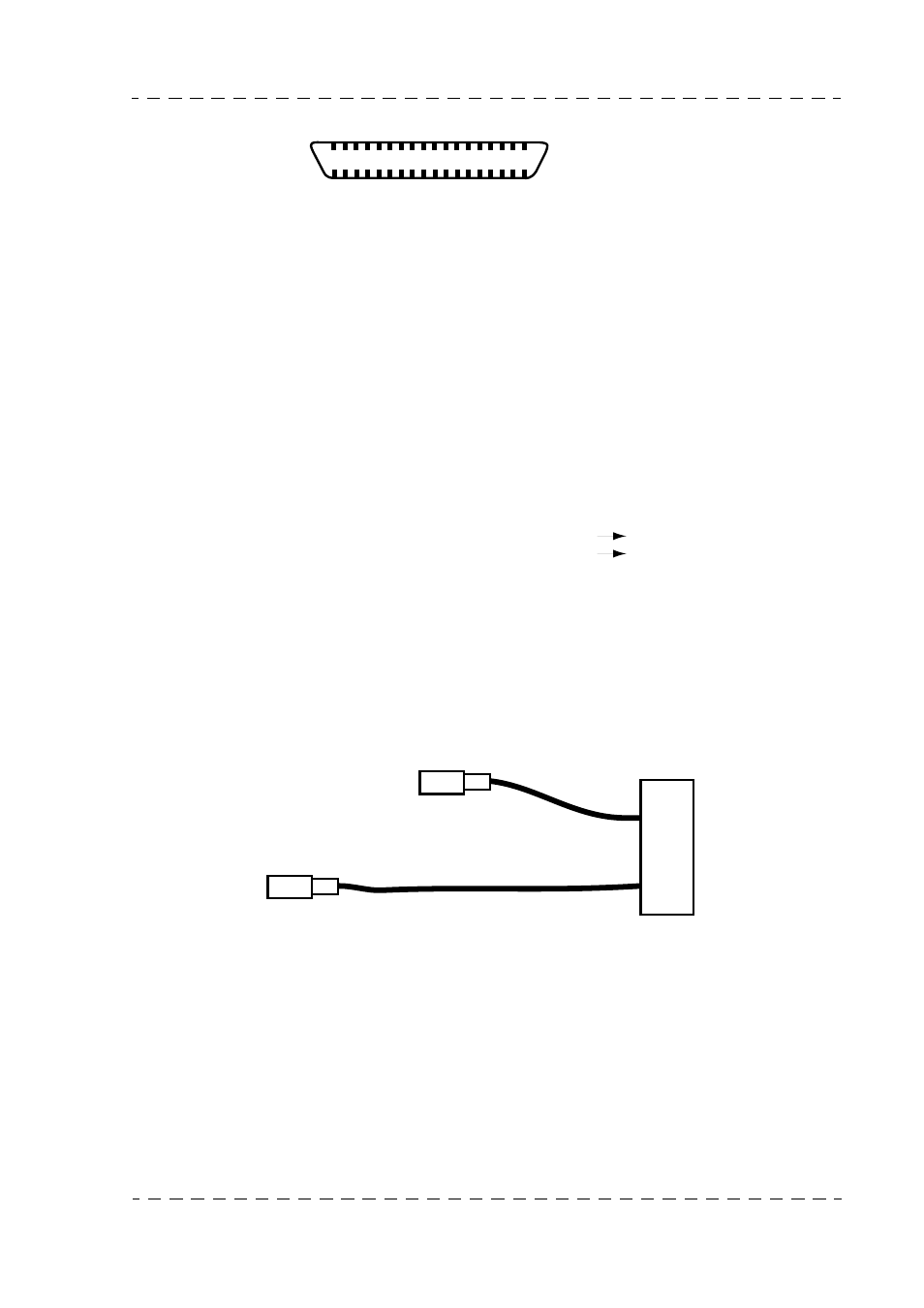

6.2.2.4 - Lens cable for "CANON" front side
Cable connected to the lens receptacle and to the bottom casing «LENS» receptacle and to
the camera «LENS» receptacle.
For the bottom casing end plug wiring, refer to the «LENS» receptacle described above.
Plug Type: HR10A-10P-10P
P/N: T1002784
For wiring of the plug at the camera end, refer to the camera manual.
Plug Type: HR10-10P-12P
P/N: 91582124
1 18
19 36
Type: CNEC 57-20360
Ref: T1005476
1: NC
2: NC
3: NC
4: +12V
5: GND
6: GND
7: NC
8: EXTENDER IN
9: EXTENDER MODE B (NU)
10: EXTENDER MODE C (NU)
11: SW 16/9 4/3 OUT
12: IRIS POSITION IN
13: ZOOM POSITION IN
14: SW1 (EXT. VIDEO) IN
15: SW2 (MIX. VIDEO) IN
16: FOCUS POSITION IN
17: IRIS CONTROL (Lens iris) OUT
18: IRIS MODE (Lens Iris Auto) OUT 19: NC
20: NC
21: ON AIR 1 OUT
22: NC
23: NC
24: LENS CODE A (NU)
25: LENS CODE B (NU)
26: LENS CODE C (NU)
27: LENS CODE D (NU)
28: NC
29: NC
30: NC
31: INCOM 1 ENG/PRD (NU)
32: INCOM 2 ENG/PRD (NU)
33: CAM ENG IN
34: CAM
PROD IN
35: NC
36: NC
To camera
"LENS"
Lens
receptacle
To bottom
casing "LENS"
