Chapter 3 - 1685/1686 Channel Control Unit 165
CCU1685
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000
3.1 - CCU1685

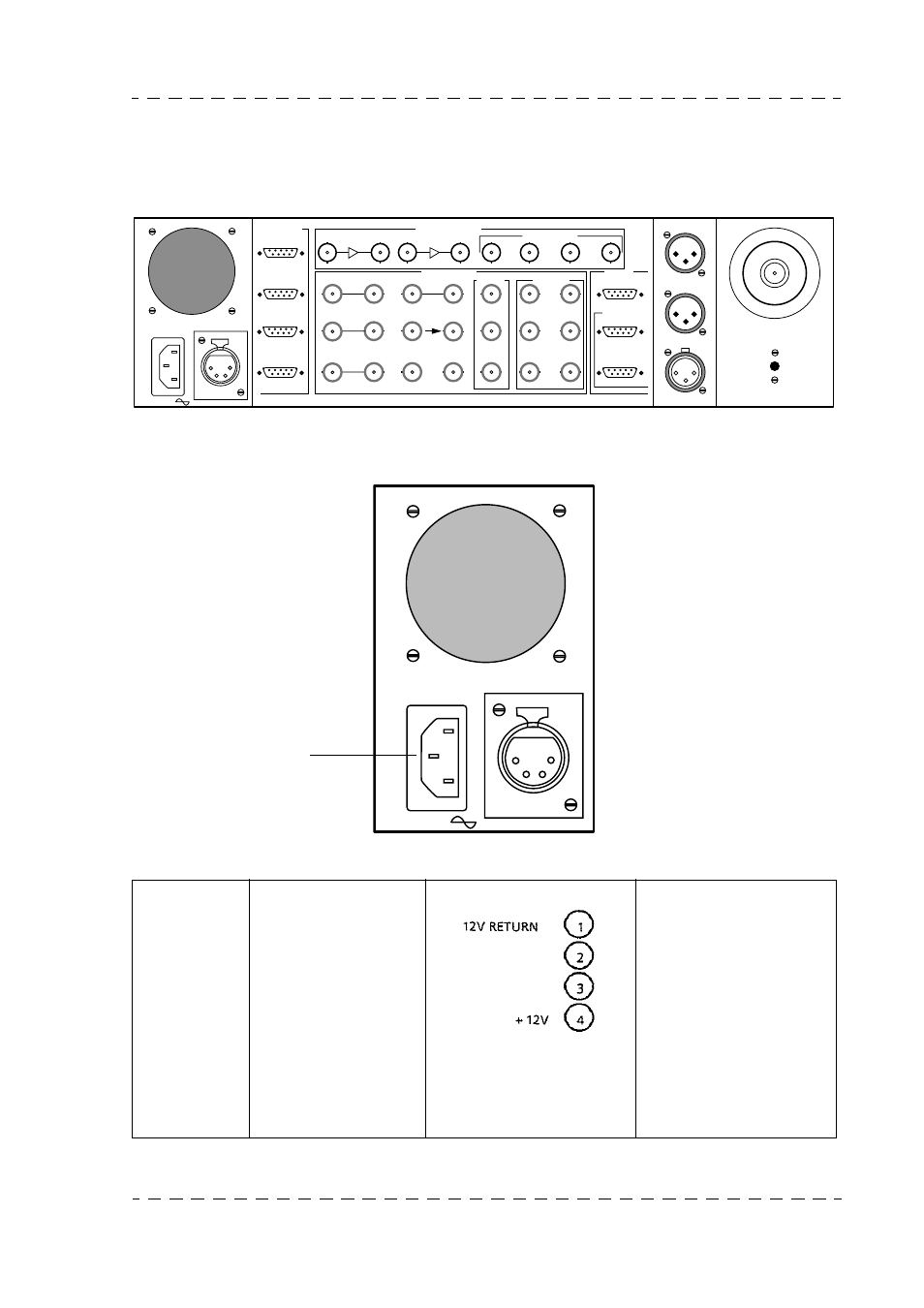

3.1.1 - Back panel
3.1.1.1 - Power supply module
RCP
POWER
+ 12 V OUT
Control panel power
connector.
Socket Type: XLR-4-31
P/N: 91.538.047
Plug Type: XLR-4-12C
P/N: 91.647.565
DIGITAL VIDEO
ANALOG I / O AUDIO
CONTROL
MCP
RCP
ON AIR
AUX.PORT
RET 3 RET 4
RET 1 RET 2
PROMPTER MIX VIDEO OUT IN
SYNC. OUT PIX GEN - LOCK
110/220/240 V
RCP POWER
+12 V OUT
AC
ENC. OUT VIDEO OUT
1 2
R
R - Y
G
Y
B
B - Y
SERIAL OUTPUT
MIC REM
INTERCOM
PROD
ENG
MIC 1 OUT
MIC 2 OUT
PGM IN
110/220/240 V
RCP POWER
+12 V OUT
AC
Mains input
connector
