134 Chapter 2 - Installation
Mains supply
B1685902AC
September 2000
THOMSON EFP1685 / CCU1686
User manual
2.2.2 - CCU1686
To adapt the equipment to the mains voltage:
1. Disconnect the mains cord.
2. Remove the upper trap of the CCU.
3. Using a screwdriver, set switch S1 placed on the "MAIN RECTIFIER" to 115 V or
220 V, 230 V or 240 V, corresponding to the rated mains voltage.

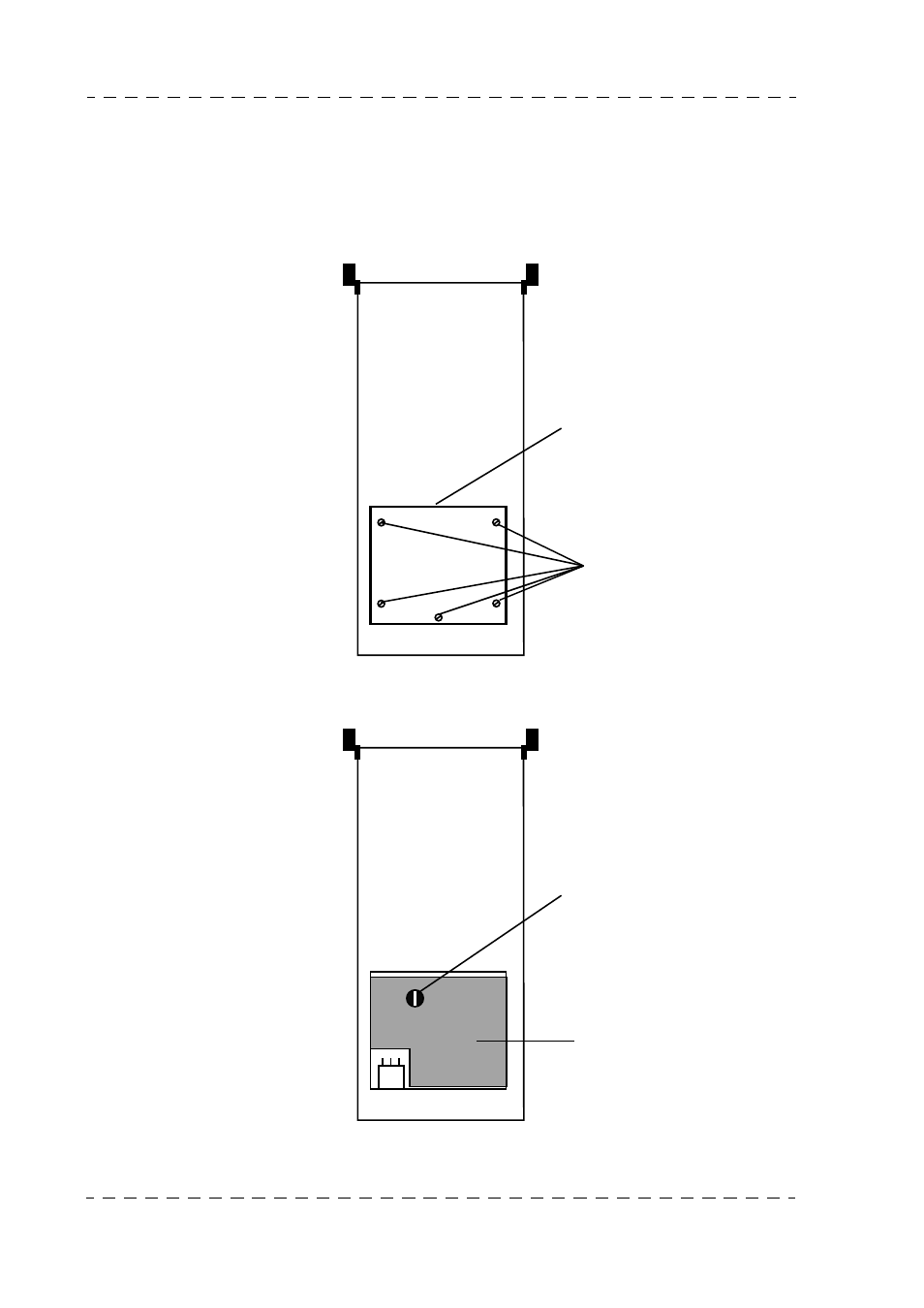

Upper trap
Attaching screws
S1
MAINS RECTIFIER
PCB
