182 Chapter 3 - 1685/1686 Channel Control Unit
CCU1686
B1685902AC
September 2000
THOMSON EFP1685/CCU1686
User manual

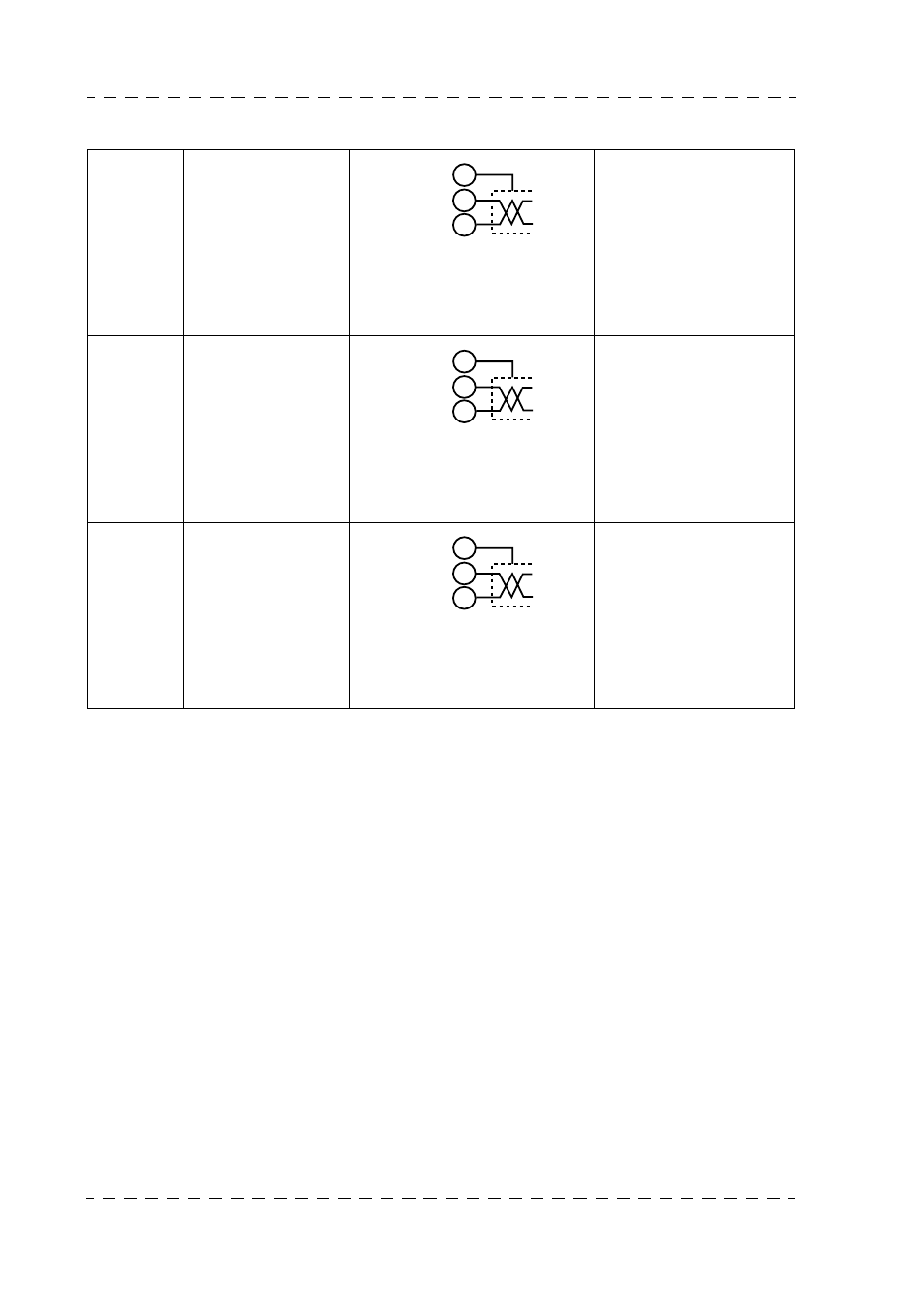

3.2.1.8 - "AUDIO" section
MIC 1
OUT
Audio Output from
Camera Mic. The output level specified
is 0 dB; however, it is pos-
sible to change this level
value.
Refer to chapter 2 "Instal-
lation".
Socket Type: NC3MK-V
P/N: T1002568
Plug Type: XLR-3-11C
P/N: 91.355.160
MIC 2
OUT
Audio Output from
Mic connected to
CA85. The specified audio output
level is 0 dB. However, it
is possible to change this
level value.
Refer to chapter 2 "Instal-
lation".
Socket Type: NC3MK-V
P/N: T1002568
Plug Type: XLR-3-11C
P/N: 91.355.160
PGM IN PROGRAM Sound
Input. Normally the equipment is
set to receive a 0 dB level
signal. However, it is pos-
sible to adapt the equip-
ment to signals of other
levels.
Refer to chapter 2 "Instal-
lation".
Socket Type: NC3FK-V
P/N: T1002569
Plug Type: XLR-3-12C
P/N: 91.355.162
1
2
3
(X)
GND
(Y)
1
2
3
(X)
GND
(Y)
1
2
3
(X)
GND
(Y)
