Chapter 4 - Rear adapter 189
Rear panel
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000

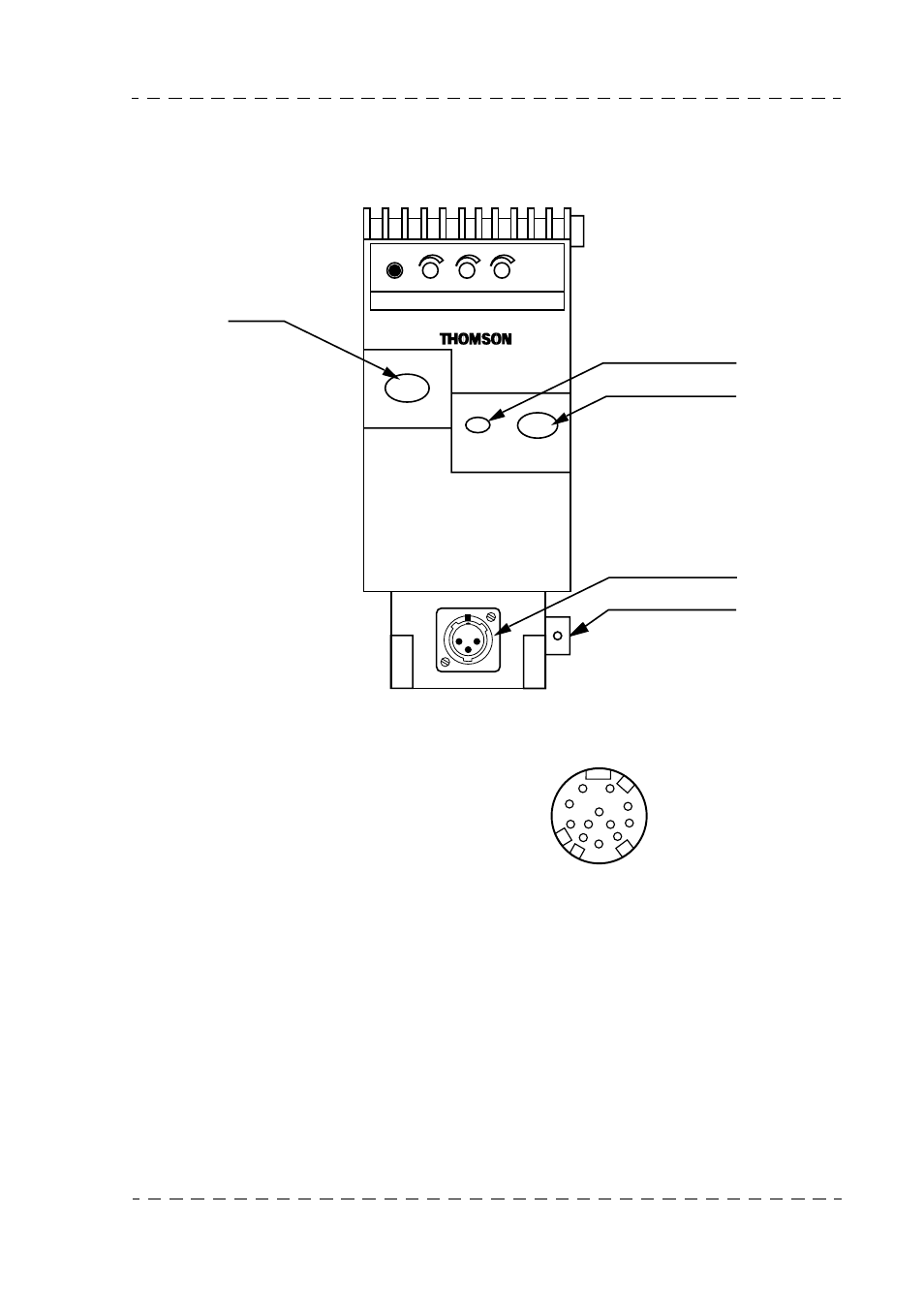

4.1 - REAR PANEL
4.1.1 - Receptacles
1. TRACKER receptacle
2. Cameraman’s headset-microphone socket
Refer to the description of the "MICRO ENG/REMOTE/PROD" control.
ENG
REMOTE
PROD
PROD ENG PRG
MIX
TRACKER
1
2
3
1
2
3
5
4
10
12 11
5
6 4
3
2
1
9
8
7
1 : INCOM 1 (Prod)
2 : INCOM 1 Gnd
3 : GND
4 : NC
5 : NC
6 : +12v (0.5A) 7 : INCOM 2 (Eng)
8 : NC
9 : INCOM 2 Gnd
10 : MIC Cameraman
11 : MIC Cameraman Gnd
12 : On Air (=GND via 100 Ohms)
Receptacle (external view)
HR-10-10R-12S
P/N : 91.553.055
Corresponding plug HR-10-10P-12P
P/N : 91.582.124
