Chapter 6 - Version SPORTCAM TTV1657D 217
Description
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000

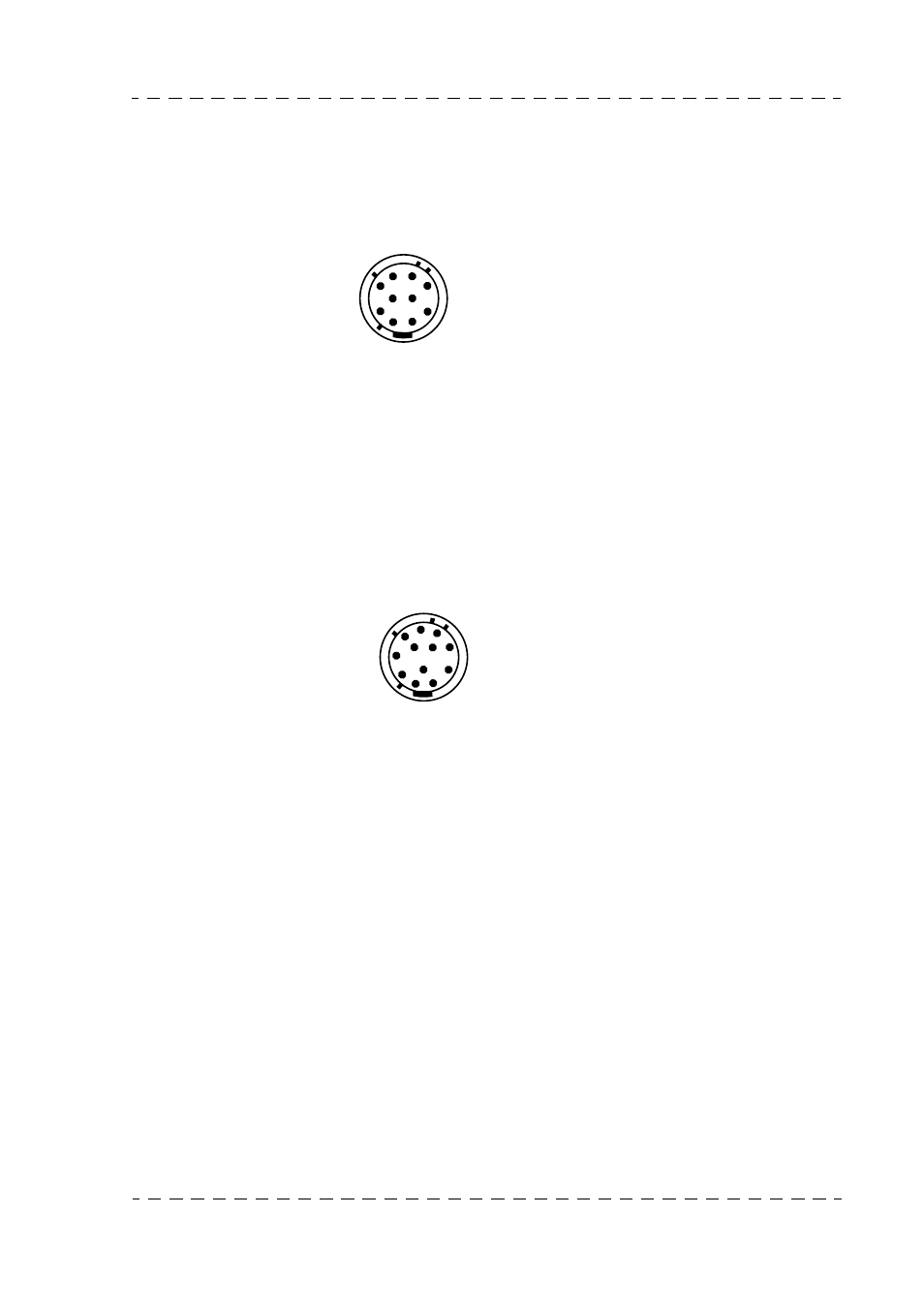

6.2.1.3 - Front panel
"LENS" receptacle
Connection of cable from the lens receptacle on the front of the SPORTCAM frame.
"VF IN" receptacle
Connection of cable from camera VIEWFINDER receptacle.
"CCU" triaxial receptacle
Connection of triaxial cable from channel control unit.
2
1
6
3
4
5
8
7
9 10
1: +12V OUT
2: NC
3: GND
4: NC
5: SWITCH VID. EXT IN
6: SWITCH VID. MIX IN
7: SWITCH CAM to PROD IN
8: SWITCH CAM to ENG IN
9: SWITCH 16/9 4/3 IN
10: ON AIR 1 OUT
Type: HR10-10R-10S
Ref: T1002872 RECEPTACLE
2
1
6
3
4 5
8
7
9
10
11 12
1: Y/G VIDEO
2: Y/G VIDEO GND
3: GND
4: R VIDEO
5: R VIDEO GND
6: B VIDEO
7: B VIDEO GND
8: MISO
9: MOSI
10: SSO
11: SCK
12: SS1
Type: HR10-10R-12S
Ref: 91553055
RECEPTACLE
