6.2.1.4 - Face supérieure

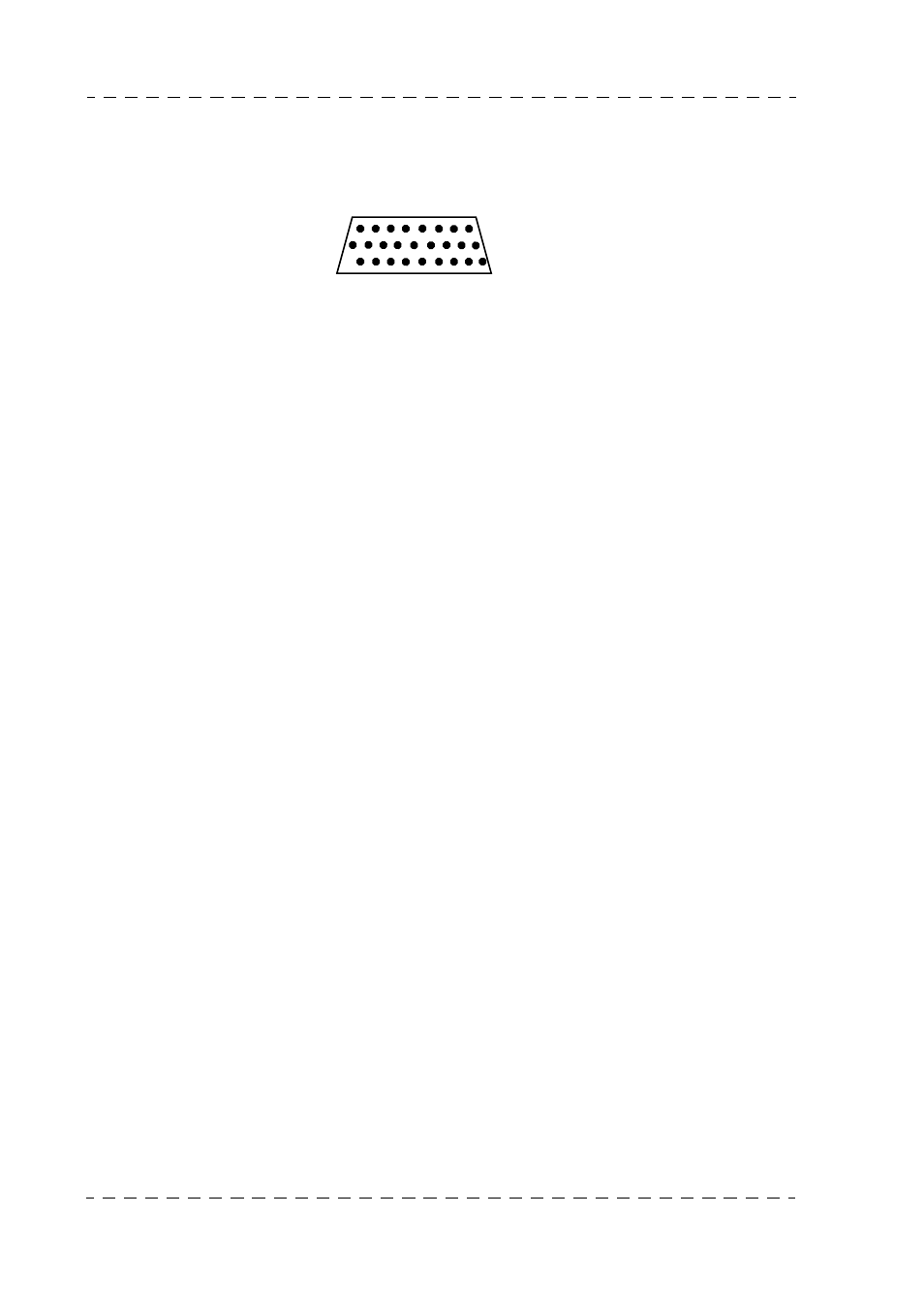

Embase "V/F OUT"
Raccordement du câble viseur.
1 9
10 18
19 26
EMBASE Type: CNEC ADF26HD-CS
Ref: T1002896
14: R VIDEO GND
15: Y/G VIDEO
16: Y/G VIDEO GND
17: B VIDEO
18: B VIDEO GND
19: 6,3V OUT
20: NC
21: NC
22: NC
23: NC
24: NC
25: NC
26: NC 1: GND
2: +12V ON AIR 1 OUT
3: 4/3 16/9 OUT
4: ON AIR 1 OUT
5: ON AIR 2 OUT
6: SS0
7: SCK
8: MOSI
9: MISO
10: -9V OUT
11: +12,6V OUT
12: SW ON AIR 1
13: R VIDEO
