Chapter 3 - 1685/1686 Channel Control Unit 179
CCU1686
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000
3.2.1.3 - "SERIAL DIGITAL OUTPUT" section
3.2.1.4 - "VIDEO OUTPUT" section

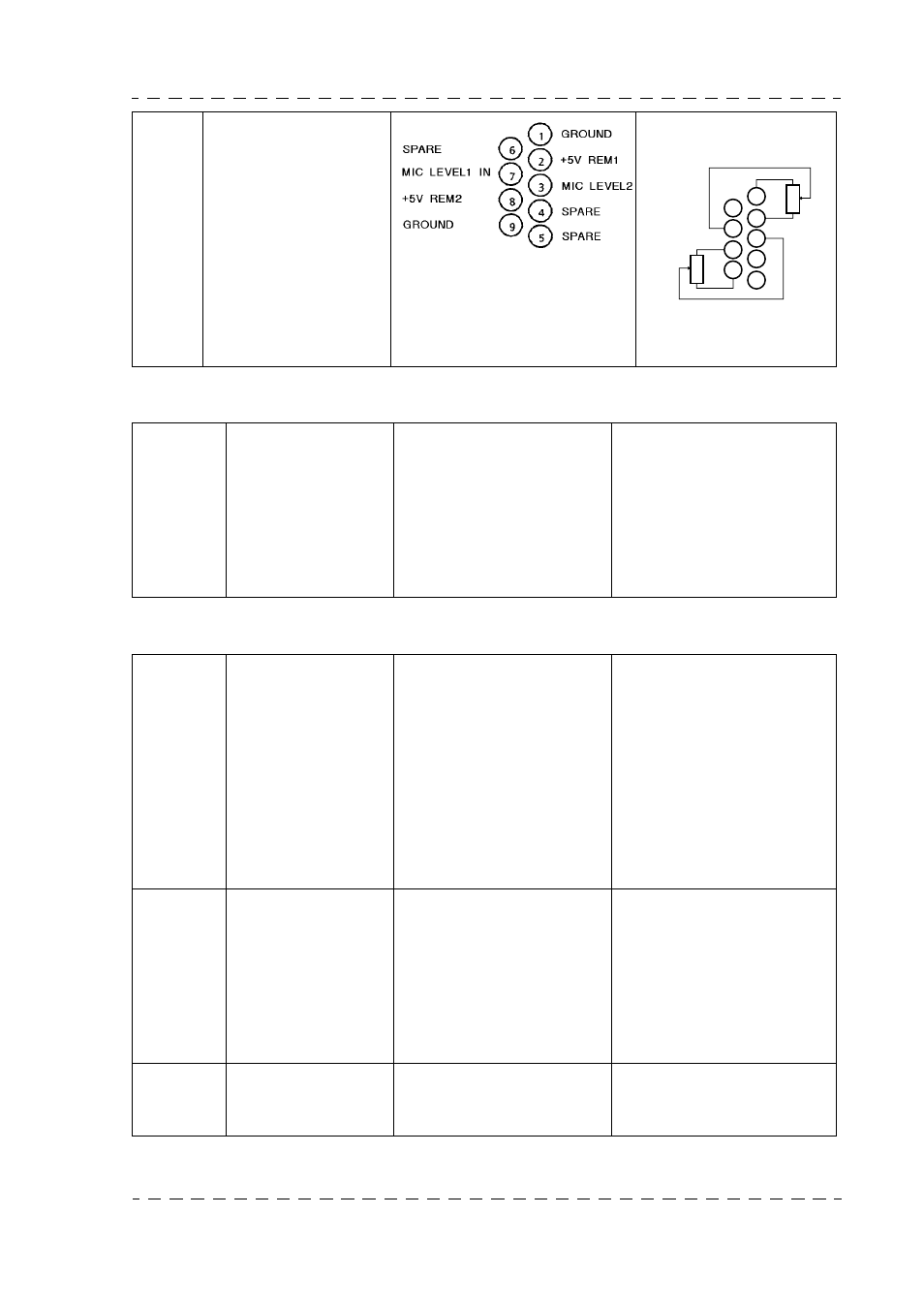

MIC.
REM Connection of 2 poten-
tiometers (10 to
50 kOhms) for:
• ambience microphone
sensitivity remote
control, microphone
connected to camera
head,
• microsensitivity
remote control for
microphone connec-
ted to CA85.
Connection
Socket Type: HE501F09KS3E
P/N: T9000678
Plug Type: HE501N09AS
P/N: 99.027.194
SERIAL
OUTPUT
4 serial 270 Mbit
digital outputs (with
digital encoder
option). 4 Sockets P/N: T6000047 It is recommended to termi-
nate unused outputs with
75 Ohms.
NOTE: In BAR and SAW-
TOWTH synthetised position,
the CCU running number is
displayed on the bottom left
of the picture.
R (R-Y)
G (Y)
B (B-Y)
Output video signals. 3 Sockets
Type: BNC50-EFDPEI-Y3
P/N: T9001518 The outputs can be R,G,B or
Y, R-Y, B-Y component con-
figured. Sync signals can be
added to the green video
(common to OUT 2 VIDEO).
Refer to chapter 2 «Installa-
tion».
Level 700 mV/75 Ohms
unless 1 V/75 Ohms on green
video if sync signal present.
PIX Video output with
sync intended for PM
monitor. Socket
Type: BNC50-EFDPEI-Y3
P/N: T9001518 Level 1 V/75 Ohms.
The output video is selected
at the control panel.
Various displays may be
inlaid in the monitor video
(refer to chapter 2 «Installa-
tion» and to chapter 5 «Ope-
ration»).
ENC.
OUT
Encoded video out-
puts. 2 Sockets
Type: BNC50-EFDPEI-Y3
P/N: T9001518 Level 1 V/75 Ohms.
1
2
3
4
5
6
7
8
9
GND
GND
+5V
+5V
Tel. MIC 1
Tel. MIC 2
