Chapter 3 - 1685/1686 Channel Control Unit 181
CCU1686
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000

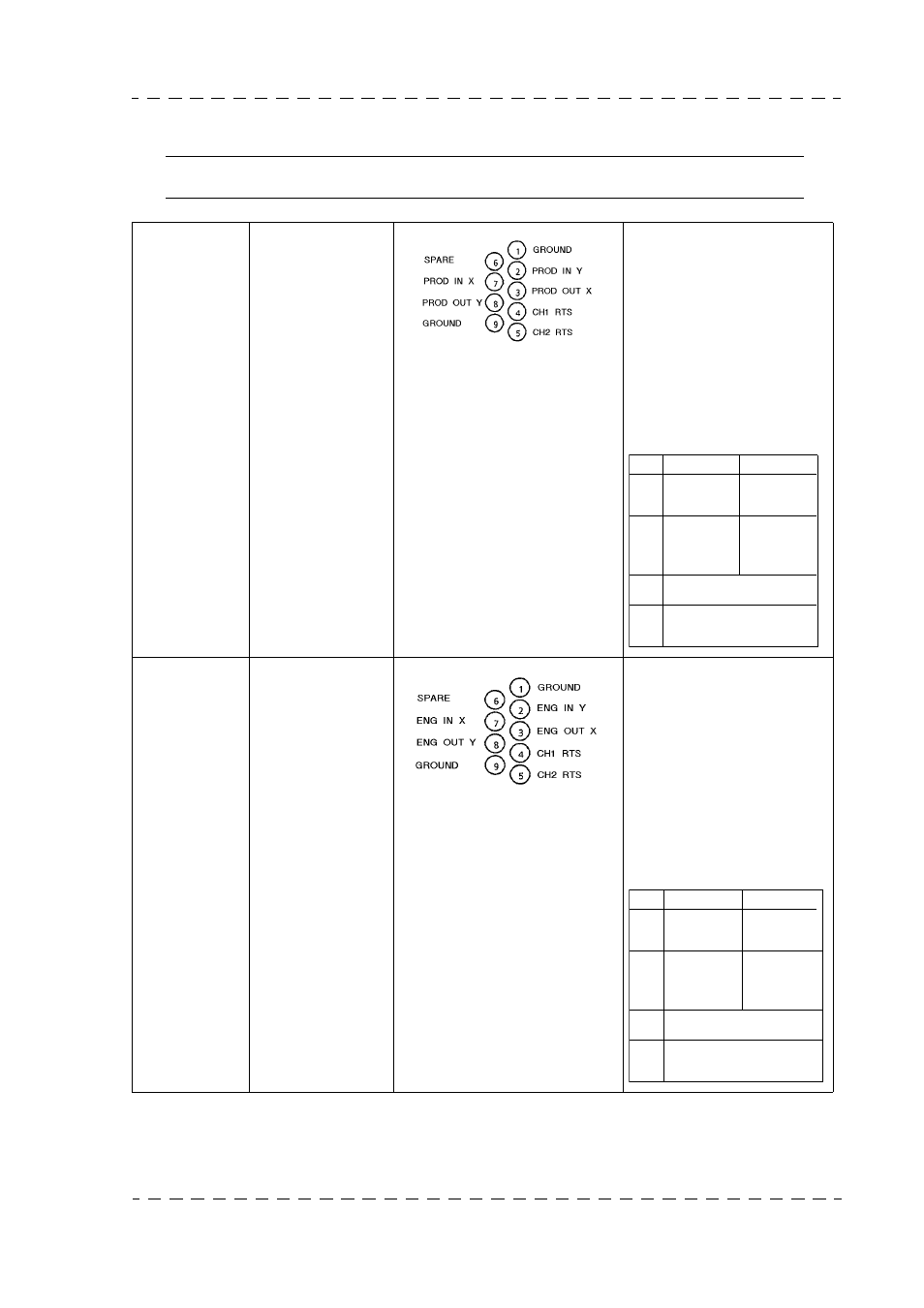

3.2.1.7 - "INTERCOM" section
NOTE : The sockets are represented wiring side.
PRODUCER Intercom Audio
Input/Output
between Camera-
man and Producer.
Depending on the position of
the straps on the «INTER-
COM» board, the intercom
link with the control room
can be a 2-wire or 4-wire
link.
The audio input and output
levels specified are 0 dB.
However it is possible to
change these levels.
Refer to chapter 2 «Installa-
tion».
Socket Type:
HE501F09KS3E
P/N: T9000678
Plug Type: HE501N09AS
P/N: 99.027.194
ENGINER Intercom Audio
Input/Output
between Camera-
man and Technical
control room.
Depending on the position of
the straps on the «INTER-
COM» board, the intercom
link with the control room
can be a 2-wire or 4-wire
link.
The video input and output
levels specified are 0 dB.
However it is possible to
change these levels.
Refer to chapter 2 «Installa-
tion»
Socket Type:
HE501F09KS3E
P/N: T9000678
Plug Type: HE501N09AS
P/N: 99.027.194
No 4-WIRE 2-WIRE
3 - 8
To control
room
Not
connected
2 - 7
From
control
To and from
control
room
4 Producer’s RTS channel
5
Technical room
RTS channel
room
No 4-WIRE 2-WIRE
3 - 8
To control
room
Not
connected
2 - 7
From
control
To and from
control
room
4 Producer’s RTS channel
5
Technical room
RTS channel
room
