220 Chapter 6 - Version SPORTCAM TTV1657D
Description
B1685902AC
September 2000
THOMSON EFP1685/CCU1686
User manual
Plug Type: HR10A-10P-10P
P/N: T1002784
For wiring of the plug at the camera end, refer to the camera manual.
Plug Type: HR10-10P-12P
P/N: 91582124
Lens receptacle

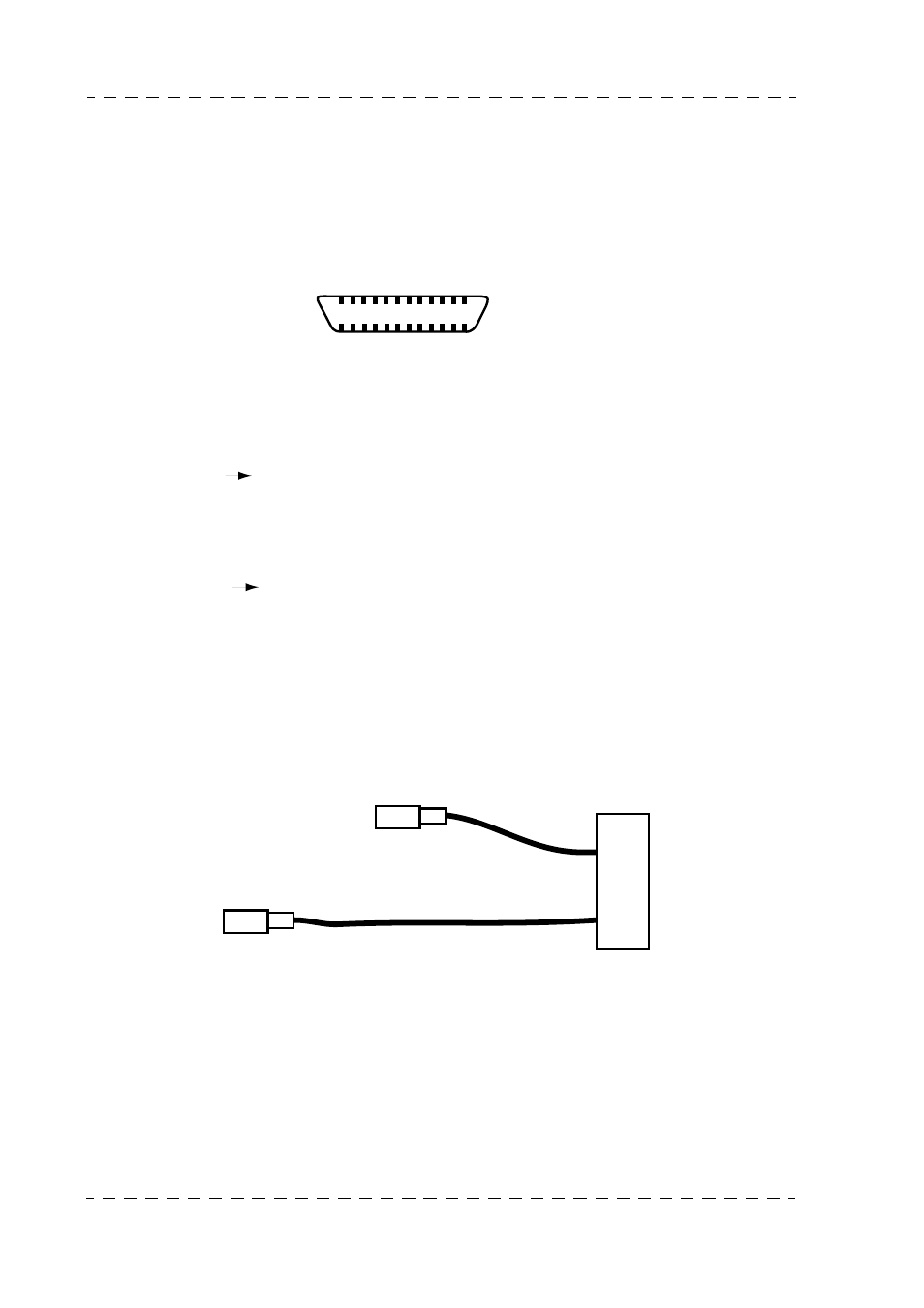

6.2.2.3 - Lens cable for "SONY" front side
Cable connected to the lens receptacle and to the bottom casing «LENS» receptacle and to
the camera «LENS» receptacle.
For the bottom casing end plug wiring, refer to the «LENS» receptacle described above.
Plug Type: HR10A-10P-10P
P/N: T1002784
For wiring of the plug at the camera end, refer to the camera manual.
Plug Type: HR10-10P-12P
P/N: 91582124
1 12
13 1 24
1: SW1 (EXT. VIDEO) IN
2: SW2 (MIX. VIDEO) IN
3: GND
4: CAM PROD IN
5: IRIS CONTROL (Lens iris) OUT
6: +12V
7: IRIS POSITION IN
8: DV SHUTTER (NU)
9: +12V
10: CAM ENG IN
11: NC
12: SW 16/9 4/3 OUT 13: IRIS MODE (Lens Iris Auto) OUT
14: EXTENDER IN
15: ZOOM POSITION IN
16: FOCUS POSITION IN
17: PROJECTOR CONTROL (NU)
18: LENS CODE A0 (NU)
19: LENS CODE A1 (NU)
20: LENS CODE A2 (NU)
21: ON AIR 1 OUT
22: GND (NU)
23: ON/OFF 230VDC (NU)
24: 230VDC (NU)
Type: CNEC 57-20240
Ref: T1000207
To camera
"LENS"
Lens
receptacle
To bottom
casing "LENS"
