6.2.2 - Cables delivered with the "SPORTCAM" chassis
6.2.2.1 - 17 cm viewfinder cable
Cable connected between the «V/F OUT» receptacle on the bottom casing and the 17 cm
viewfinder.
For wiring of the plug on the bottom casing end, refer to the «V/F OUT» receptacle.
6.2.2.2 - Lens cable for "THOMSON" front side
Cable connected to the lens receptacle and to the bottom casing «LENS» receptacle and to
the camera «LENS» receptacle.
For the bottom casing end plug wiring, refer to the «LENS» receptacle described above.

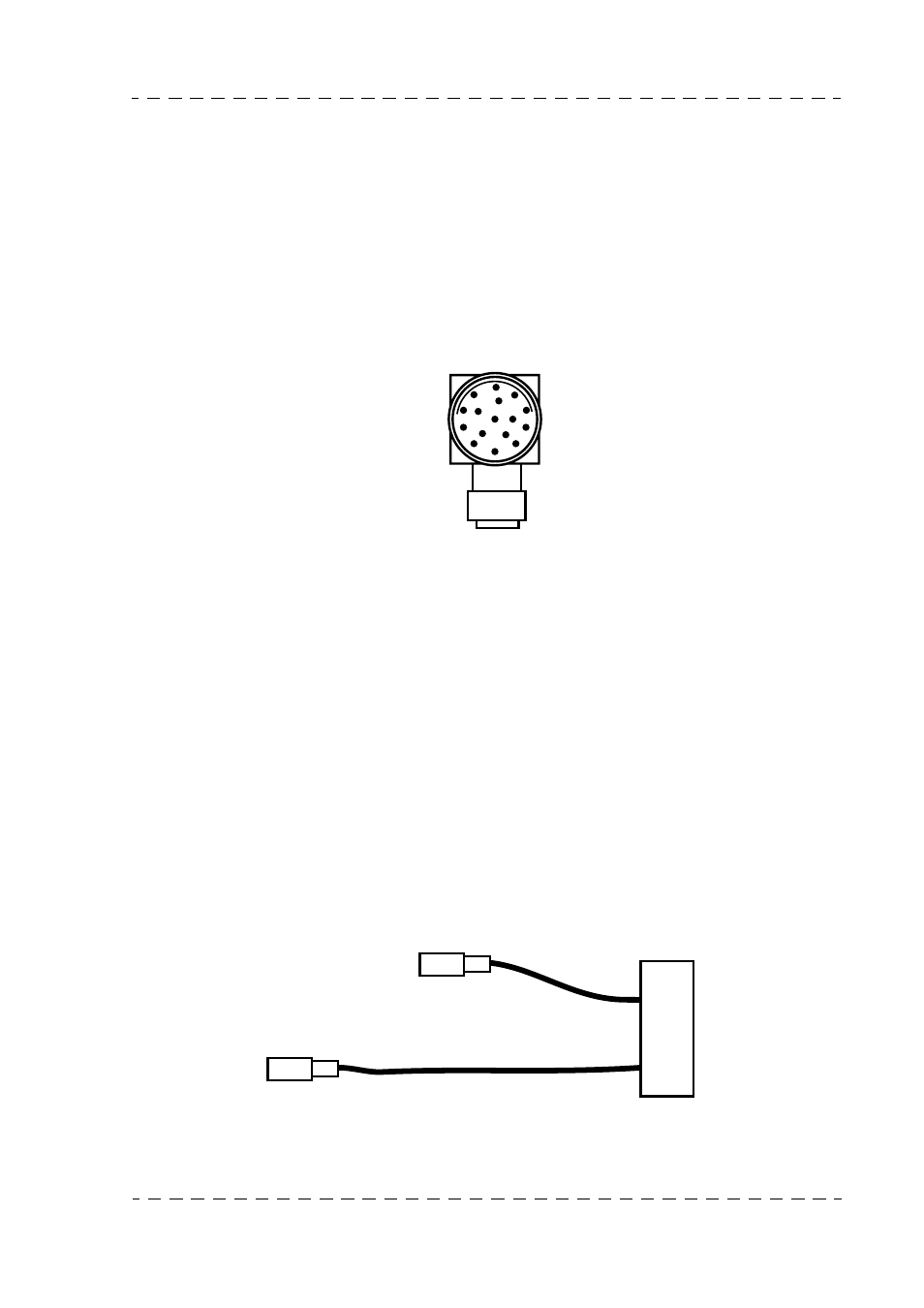

1
12
4 3
2
14
16 5
7
6
9
1: ON AIR 1
2: ON AIR 2
3: +6,3V
4: GND
5: SW ON AIR 1
6: +12V ON AIR 1 IN
7: SS0
8: SCK
9: MISO
10: MOSI
11: NC
12: -9V
13: VIDEO GND
14: Y VIDEO
15: +12,6V
16: 4/3 16/9 IN
Plug Type: CNEC ADM26HD-CS
P/N: T1002897
Plug Type: WS104-A086-26P
P/N: T1001417
17 cm viewfinder
To camera
"LENS"
Lens
receptacle
To bottom
casing "LENS"
