Chapter 6 - Version SPORTCAM TTV1657D 207
Installation
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000
6.1 - INSTALLATION

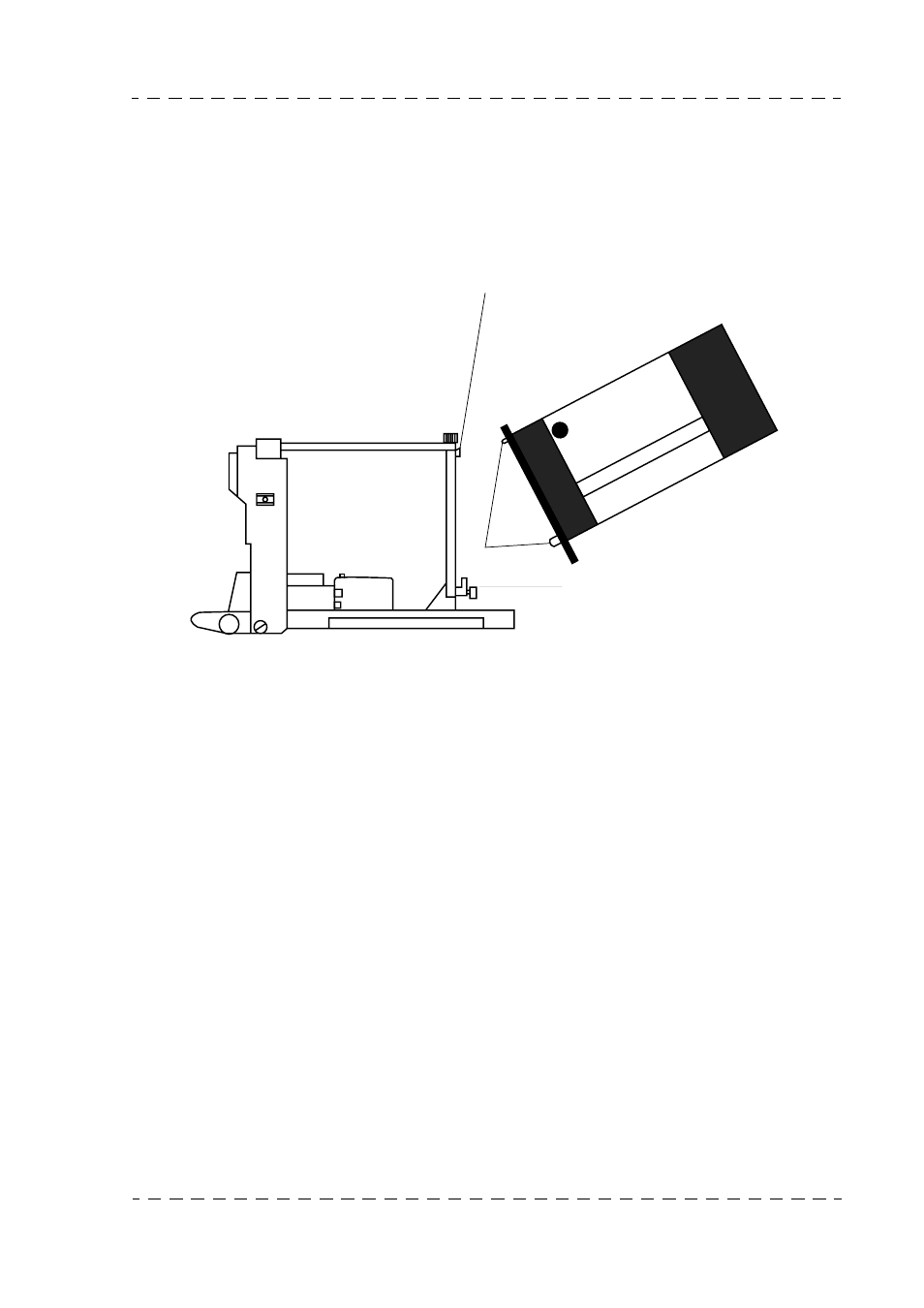

6.1.1 - Fitting the heavy lens
1. Tilt the lens to couple it to the attaching dovetail. Two guides are used to align the
lens with the camera.
2. Fit the lens locking mechanism and tighten the knurled knob.
Attaching dovetail
Guides
Lens locking
mechanism
