6.2.2.5 - Viewfinder to "SPORTCAM" camera casing cable
Cable connected to «VF» plug on camera and to the «»V/F IN» receptacle on the casing.
For the camera end plug wiring, refer to the camera manual.
Plug Type: EJ212 J H 87
For wiring of the bottom casing end plug, refer to the «V/F IN» receptacle described
above.

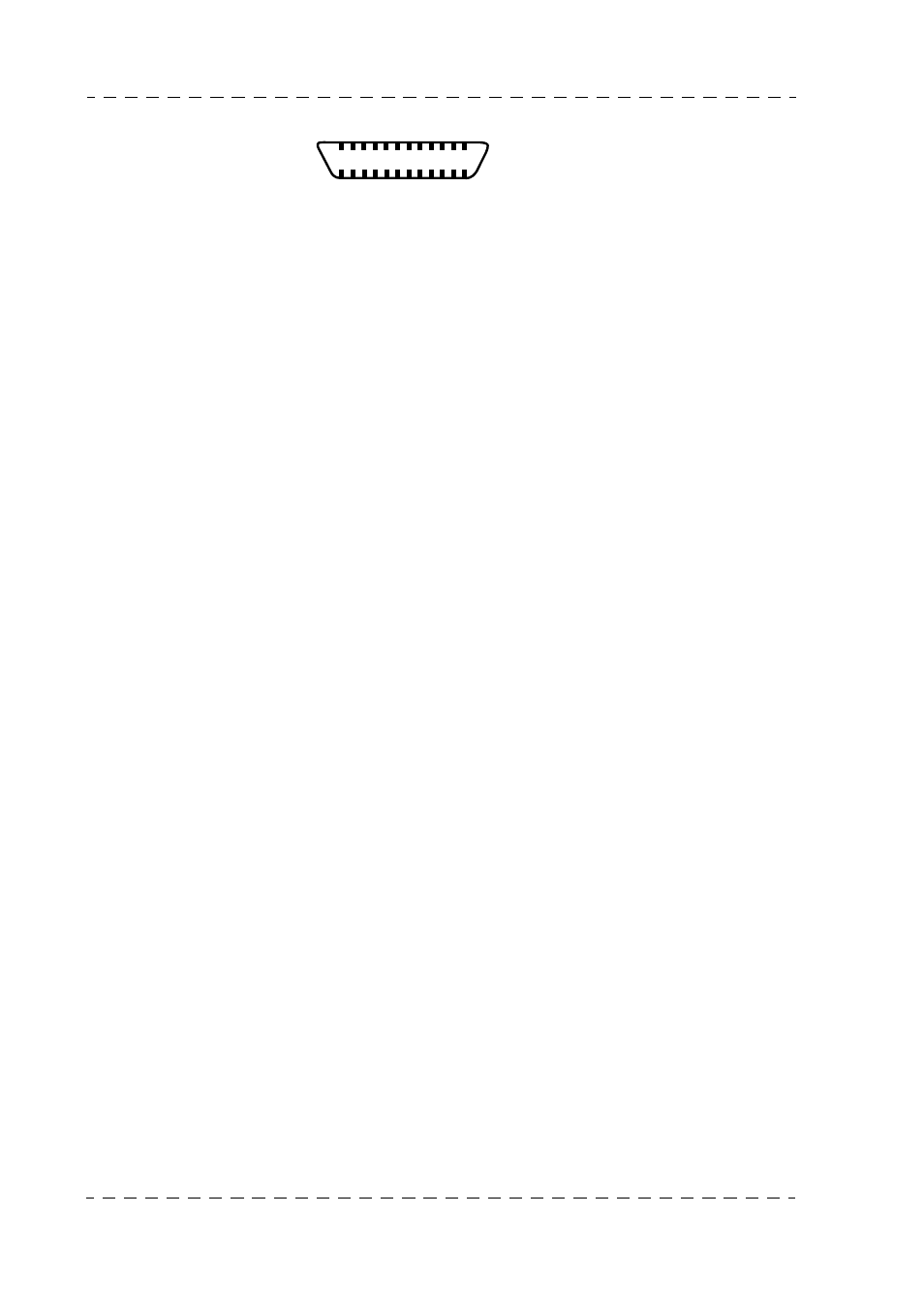

Plug Type: HR10-10P-12P
P/N: 91582124
1 12
13 1 24
1: NC
2: NC
3: +12V
4: +12V
5: BODY GND
6: GND
7: SW1 (EXT. VIDEO) IN
8: IRIS POSITION IN
9: ZOOM POSITION IN
10: FOCUS POSITION IN
11: ON AIR 1 OUT
12: PROJECTOR CONTROL (NU)
13: NC
14: NC
15: NC
16: NC
17: GND
18: SW2 (MIX. VIDEO) IN
19: ENFORCED AUTO (NU)
20: IRIS MODE (Lens Iris Auto) OUT
21: NC
22: IRIS CONTROL (Lens iris) OUT
23: NC
24: EXTENDER IN
Type: CNEC 57-20240
Ref: T1000207
