190 Chapter 4 - Rear adapter
Rear panel
B1685902AC
September 2000
THOMSON EFP1685/CCU1686
User manual

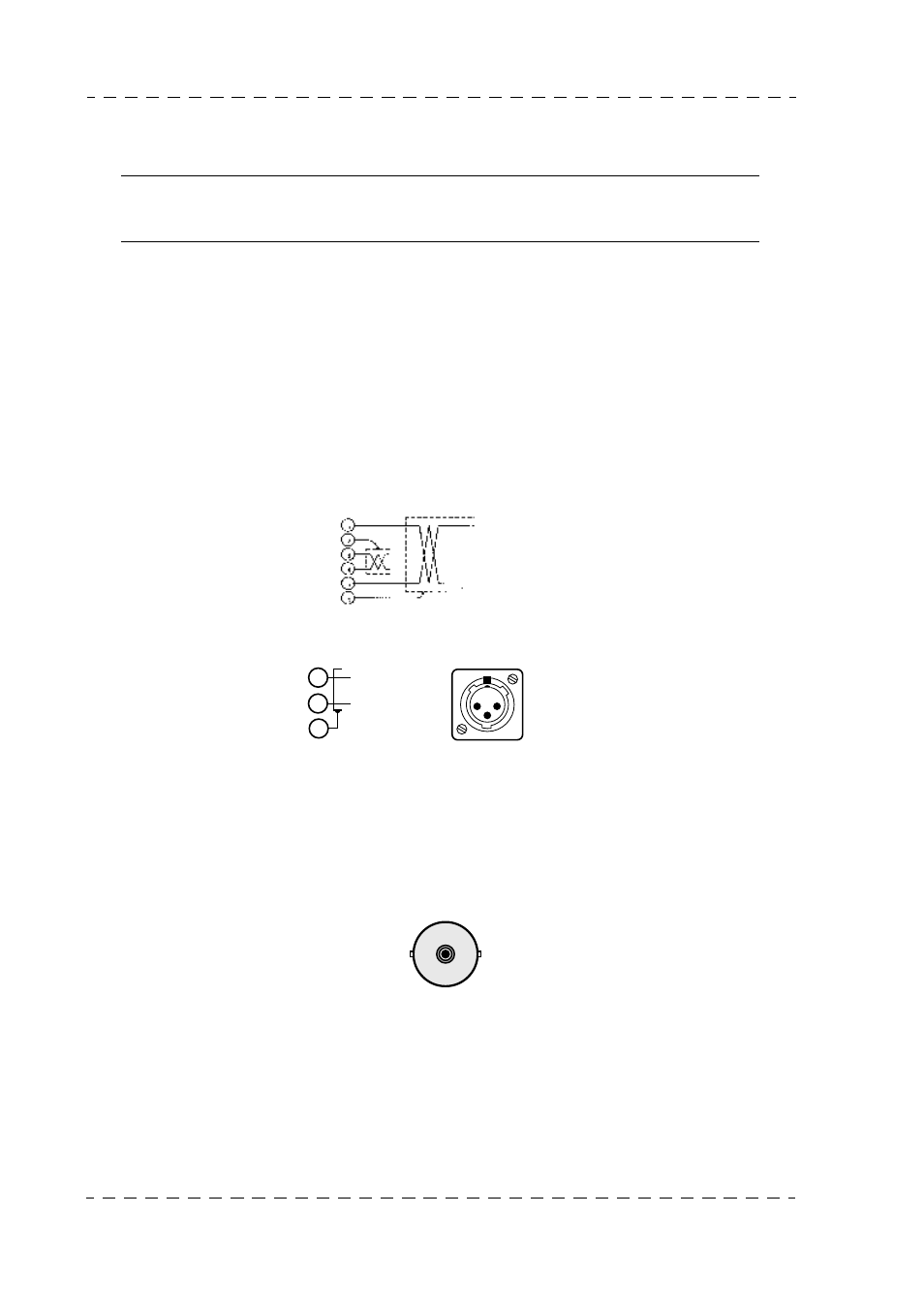

The camera head provides a voltage of + 9 V on this receptacle to supply the Came-
raman’s microphone.
NOTE : Refer to the INSTALLATION chapter for the types of microphone that may
be connected.
1 : Right earphone
2 : Mic. ground
3 : Mic (X)
4 : Mic (y)
5 : Left earphone
6 : Earphone ground
3. Ambience mic connection socket
4. Return video BNC socket
In connection with Video selection switches on the left of the CA85, THE Return video
on this BNC is:
• external video (RET1 or RET2 or RET3 or RET4),
• MIX video ( Y Camera video+ External video)
Embase :
Type : T2121.000 Réf : 91.491.906
Prise :
Type : T2120.001 Réf : T1000.071
3
2
1
SOCKET : Type XLR-3-31 Ref : 91.355.163
PLUG : Type XLR-3-12C Ref : 91.355.162
1
2
3
BNC
