210 Chapter 6 - Version SPORTCAM TTV1657D
Installation
B1685902AC
September 2000
THOMSON EFP1685/CCU1686
User manual

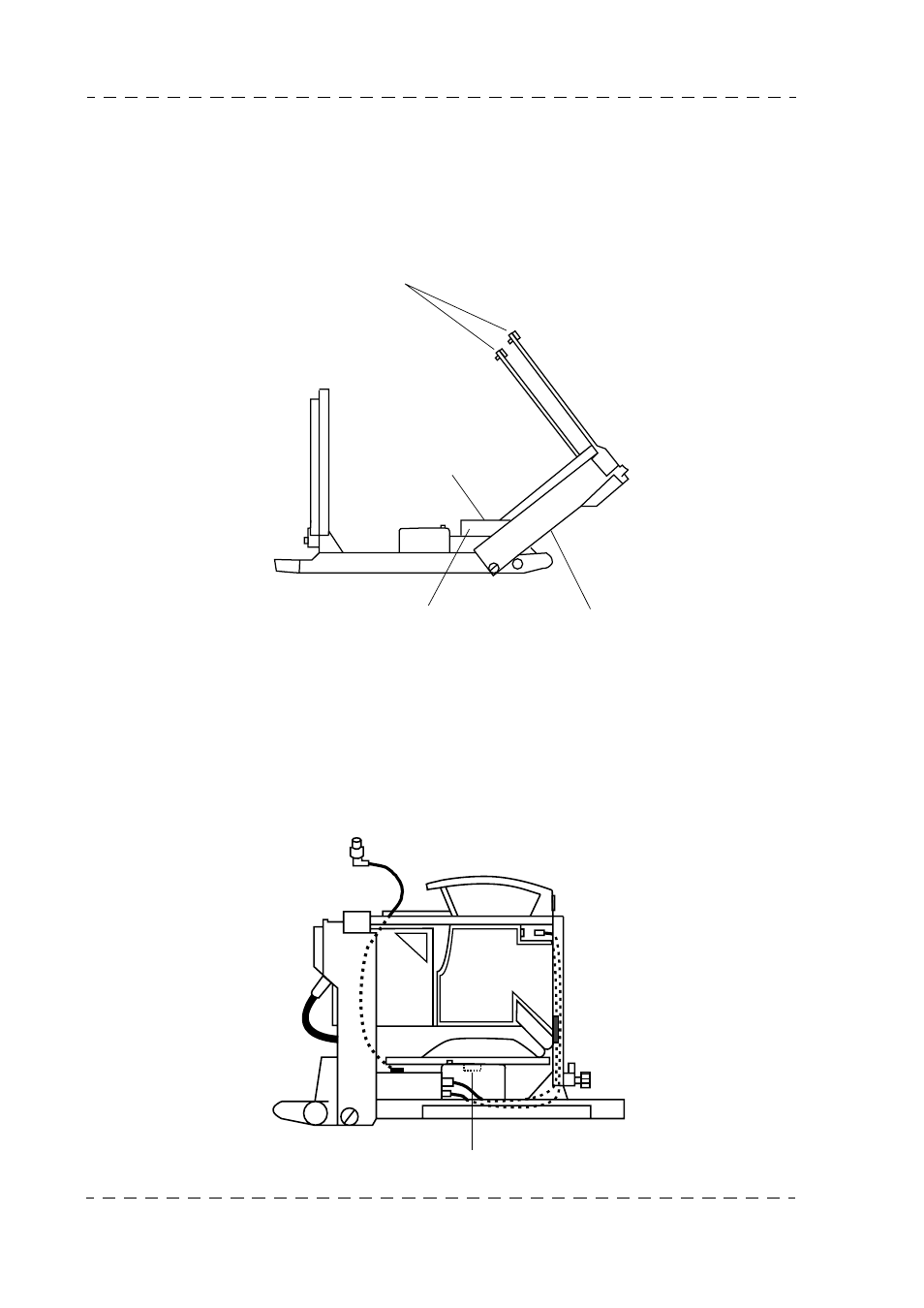

6.1.3 - Fitting with a light lens
1. Tilt back the mobile assembly after having loosened the lockscrews on the ends of
the two bars.
2. Unscrew the screen attaching the flexible mounting and remove it.
3. Fit the camera tripod attachment by means of the screw bolt delivred with the
equipement.
4. Fit the camera on the tripod attachement.
5. Place the mobile assembly in the down position and tighten the two top attaching
screws.
Lockscrews
Flexible mounting
lockscrew
Flexible mounting Chassis moving assembly
LENS
CAM V/F
Screw bolt tripod attachment
