Chapter 2 - Installation 135
Mains supply
THOMSON EFP1685 / CCU1686
User manual
B1685902AC
September 2000
4. In the mains receptacle, put the fuse:
• F1 = T 2.5 A for a 220 V to 240 V mains voltage.
(Fuse P/N T9000667).
• F1 = T 4 A for a 110 V mains voltage.
(Fuse P/N T9000669).
5. Replace the upper trap of the CCU.
MCP
RCP
ON AIR
VIDEO OUTPUT
MIC REM
INTERCOM
ENGINER
MIC 2 OUT
PGM IN
PIX
ENC. OUT
R
R-Y
B
B-Y
G
Y
1
2
I
N
P
U
T
C
O
N
T
R
O
L
MIX VIDEO
PRODUCER
OUT
IN
RET 4
RET 2
RET 3
RET 1
GEN LOCK PROMPTER
AUDIO
MIC 1 OUT
N
SERIAL DIGITAL OUTPUT
1 2
3 4

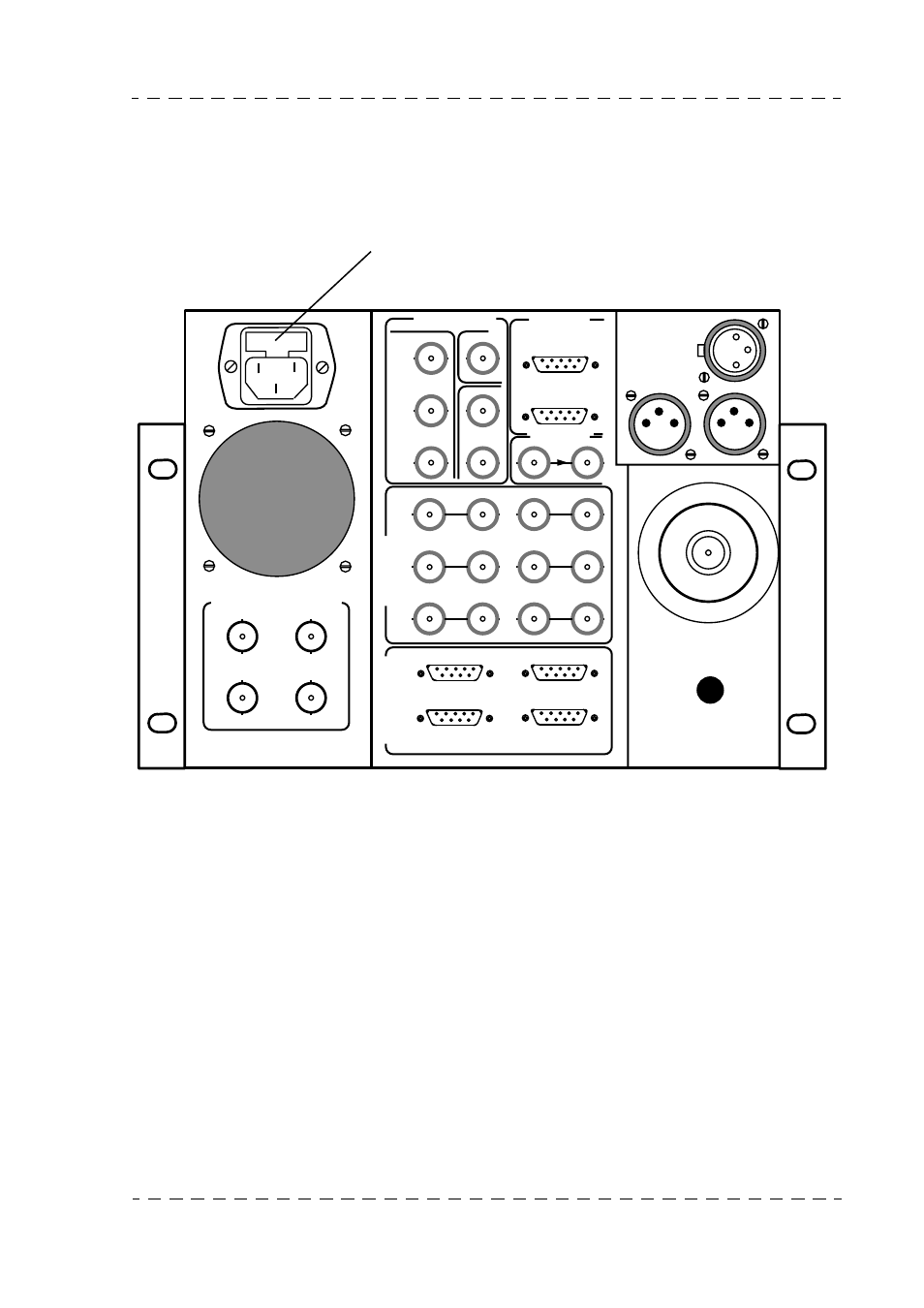

Fuse F1
