Channel control unit numbering (use with a MCP)
THOMSON EFP1685 / CCU1686
User manual
B1685902AC
September 2000
2.7.2 - APCM board version 1

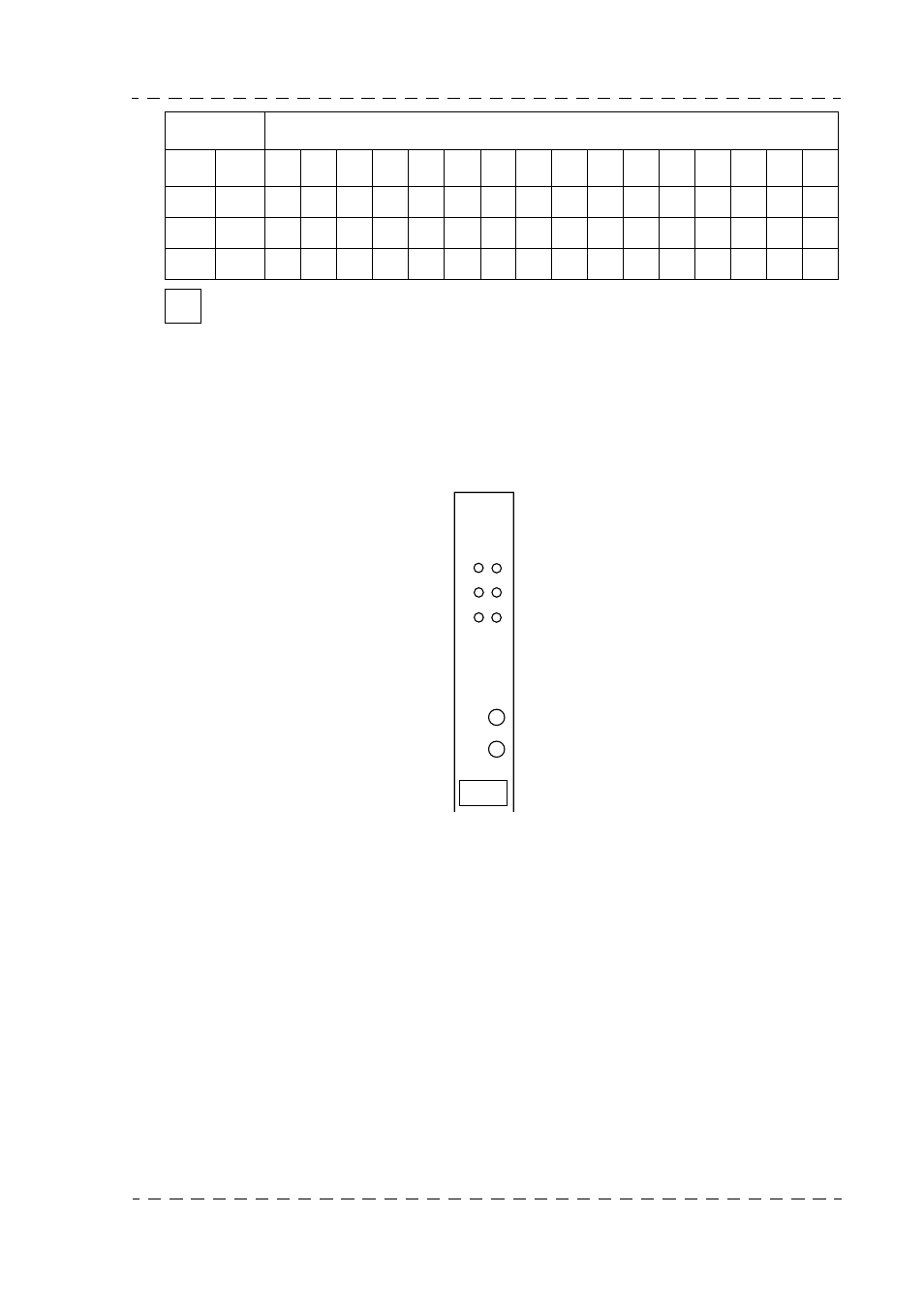

This address is allocated using thumbwheel RC10 and RC1 on the front of the APCM
board.
APCM version 1 PCB
Numbering (1 to 24):
• The RC10 thumbwheel permit the ten numbering (0 to 2).
• The RC1 thumwheel permit the unity numbering (0 to 9).
Example: If the CCU is the 14 number: RC10 = 1 and RC1 = 4.
ON
OFF 10
11
12 13 14
15 16 17
18
19 20 21
22 23 24
OFF
ON
20
21
22 23 24
ON
ON
Forbidden position
S250
Thumbwheel position
5
6
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
RC10 thumbwheel
APCM
ON AIR
STATUS
ON LINE
1
2
CAM BUSY
RCP
MCP
NUMBER
MCP
RC1 thumbwheel
