166 Chapter 3 - 1685/1686 Channel Control Unit
CCU1685
B1685902AC
September 2000
THOMSON EFP1685/CCU1686
User manual

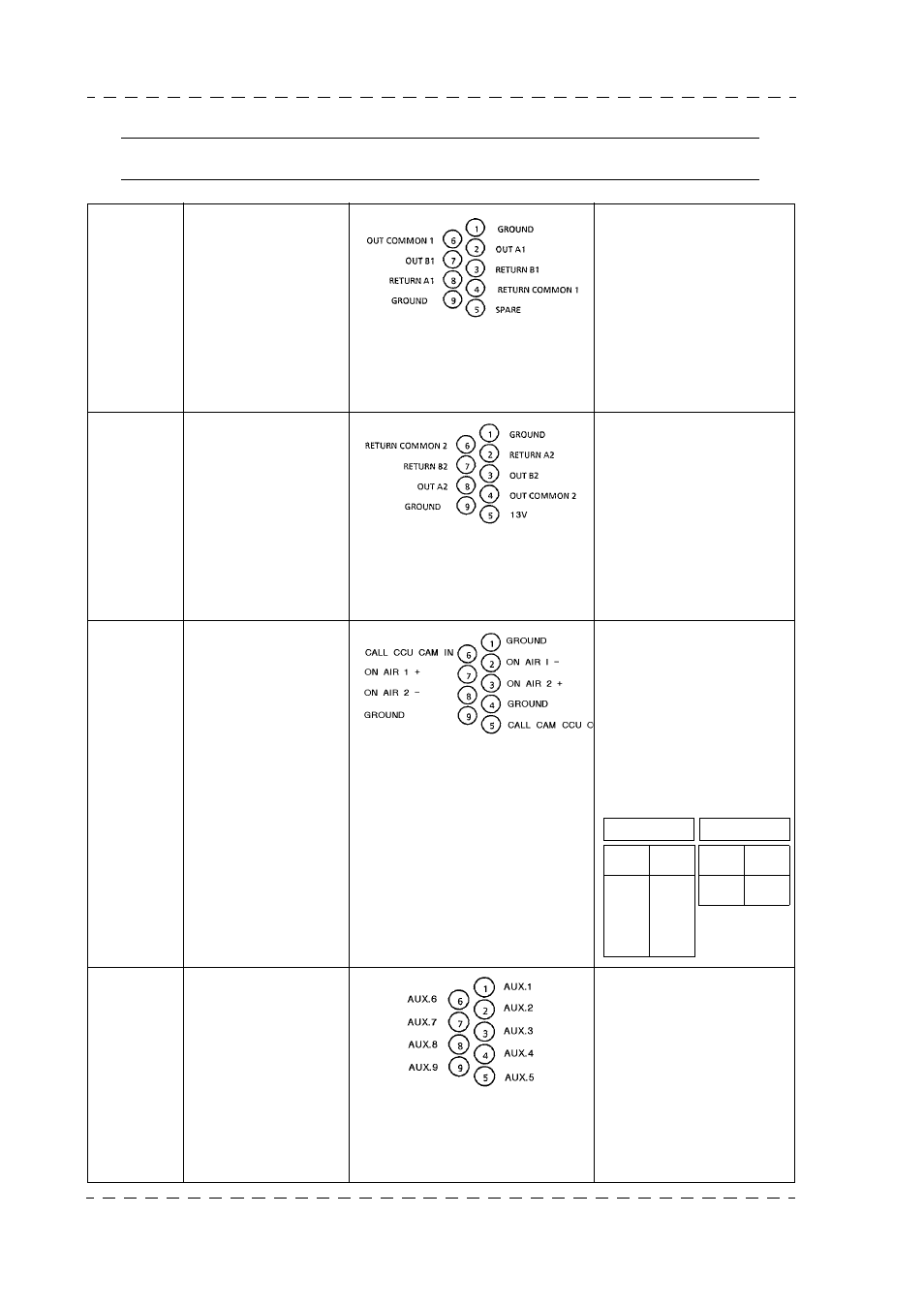

3.1.1.2 - "CONTROL" section
NOTE : The sockets are represented wiring side.
MCP Connector for cen-
tralised MCP.
Socket Type: HE501F09KS3E
P/N: T9000678
Plug Type: HE501N09AS
P/N: 99.027.194
RCP Connector for
OCP(s). Only the most distant con-
trol panel is to be termina-
ted with 150 Ohms.
Socket Type: HE501F09KS3E
P/N: T9000678
Plug Type: HE501N09AS
P/N: 99.027.194
ON AIR "ON AIR 1" and
"ON AIR 2" (Main
antenna - Secondary
antenna) signalling
inputs
"CALL" signal input
for camera.
"CALL" signal out-
put from camera. The ON AIR 1 and ON
AIR 2 (Main/Secondary)
switching functions can be
controlled by a closed
loop or a voltage of
between 12 and 48 V DC
(refer to chapter 2, "Instal-
lation").
CALL
Socket Type: HE501F09KS3E
P/N: T9000678
Plug Type: HE501N09AS
P/N: 99.027.194
AUX.
PORT
Auxiliary port con-
nector
Not used.
Socket Type: HE501F09KS3E
P/N: T9000678
Plug Type: HE501N09AS
P/N: 99.027.194
Call IN Call OUT
ON 0 V ON 0 V
OFF
OFF + 5 V OPEN
or
4 V to
12 V
