Description
THOMSON EFP1685/CCU1686
User manual
B1685902AC
September 2000
6.2.1 - Connectors and selector switches located on the bottom
casing of the "SPORTCAM" chassis
6.2.1.1 - Right-hand side

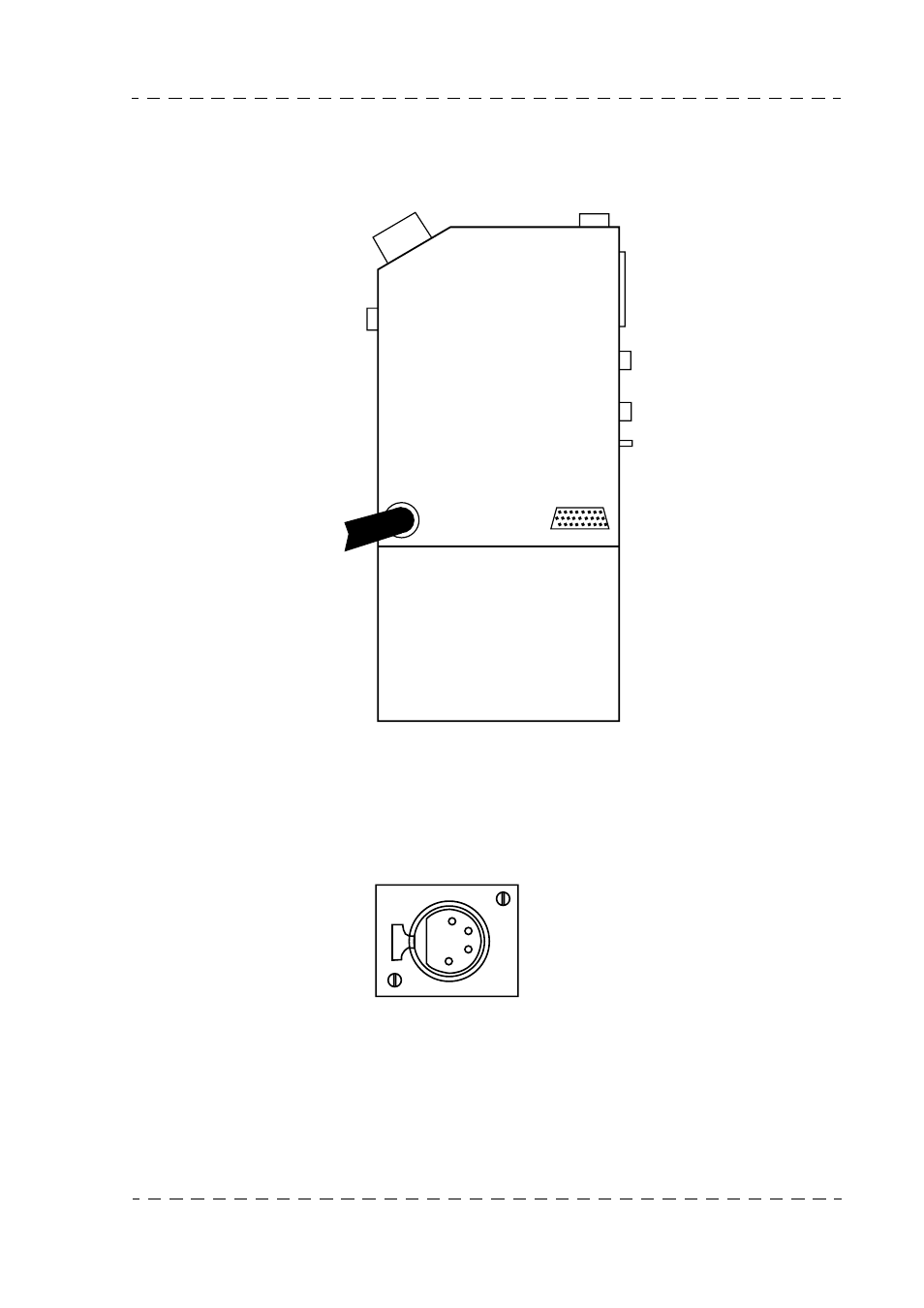

"POWER UTILITY +12V" receptacle
Output of + 12 V supply, maximum power 45 W. This power supply is protected by fuse
F01 on the back panel (4 amperes).
V/F IN
LENS
CCU
LIGHT
CABLE
V/F OUT
ON AIR ON/OFF
EXT ON AIR
PROMPTER OUT
POWER UTILITY
1
2
3
4
RECEPTACLE Type: XLR4-31
Ref: 91647561
PLUG XLR4-12C
Ref: 91647565
1: GND
2: NC
3: NC
4: +12V OUT
