Di-VentiX™
Chapter 1 : INTRODUCTION (continued)
PAGE 9

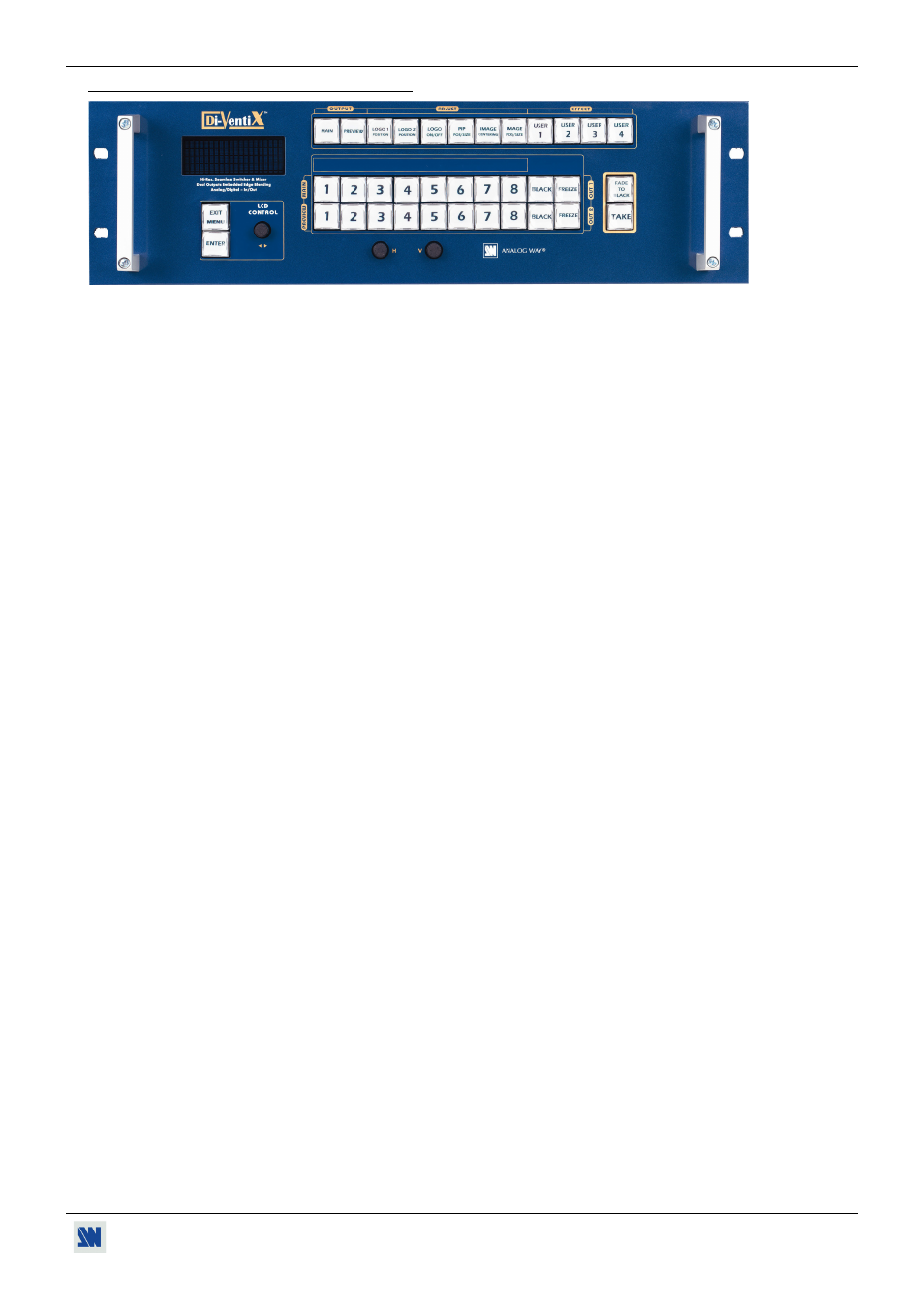

1-6. Di-VentiX FRONT PANEL DESCRIPTION
Figure
2
OUTPUT
MAIN / OUT 1:
MAIN / OUTPUT 1 selection for adjustments.
PREVIEW / OUT 2:
PREVIEW / OUTPUT 2 selection for adjustments.
ADJUST
LOGO 1 position:
Horizontal & Vertical logo #1 position adjustment. Adjust with H & V knobs.
LOGO 2 position:
Horizontal & Vertical logo #2 position adjustment. Adjust with H & V knobs.
LOGO ON/OFF:
Display ON or OFF the assigned logos of the displayed input.
PIP pos. / size:
PIP position & size adjustment.
• First push: position adjustment. Adjust with H & V knobs.
• Second push: size adjustment. Adjust with H & V knobs.
IMAGE centering:
Automatically position the selected source in the centering pattern.
IMAGE pos. / size:
IMAGE position & size adjustment.
• First push: position adjustment. Adjust with H & V knobs.
• Second push: size adjustment. Adjust with H & V knobs.
EFFECT
USER 1:
USER 1 effect selection.
USER 2:
USER 2 effect selection.
USER 3:
USER 3 effect selection.
USER 4:
USER 4 effect selection.
MAIN / OUT 1
Row of selection buttons for the MAIN output.
1 to 8:
Input source selection.
BLACK:
Black screen selection.
FREEZE: Image
freeze.
PREVIEW / OUT 2
Row of selection buttons for the PREVIEW output.
1 to 8:
Input source selection.
BLACK:
Black screen selection.
FREEZE: Image
freeze.
TAKE
Switch the pre-selected input on the MAIN output with the selected EFFECT.
FADE TO BLACK:
Switch the MAIN output to the BLACK with a fading.
H: Horizontal
adjustment.
V: Vertical
adjustment.
LCD CONTROL
EXIT / MENU:
Switches between Status and Control mode.
ENTER:
Validates a selected item.
:
Allows scrolling thru the different menus.
