Di-VentiX™ Chapter 3 : OPERATING MODE (continued)
PAGE 21
3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE (continued)
3-1-3. OPERATING IN MIXER MODE (continued)
Title effect (or shadow title):
The TITLE effect allows displaying a text onto the MAIN image. For a better readability you also can display a
shadow bar onto your text.
• Create the text to be displayed with a computer using software such as PowerPoint®: the text should be bright
(yellow, white...) on a black background.
• Display on the MAIN output the source to titling (INPUT #2 in the example below), then pre-select the source
used to display the text file create above: the image appears on the PREVIEW output (INPUT #1 in the example
below).
• Click on the Effects tab.
• Assign the TITLE effect to one of the EFFECT buttons: Click on the arrow of an EFFECT button and select
title or shadow title, then do all the needed adjustments (duration...) in the Effects windows.
• Press the TAKE button to activate the effect (ACTION 1): the text is now displayed onto the image of the MAIN
output.
NOTE: You can change the background image (MAIN image) by selecting another input of the MAIN output
(ACTION 2): Press the SWITCH MAIN button and select the needed input (the transition operates with a
fading to black). To remove the TITLE effect, press the TAKE button (ACTION 3).

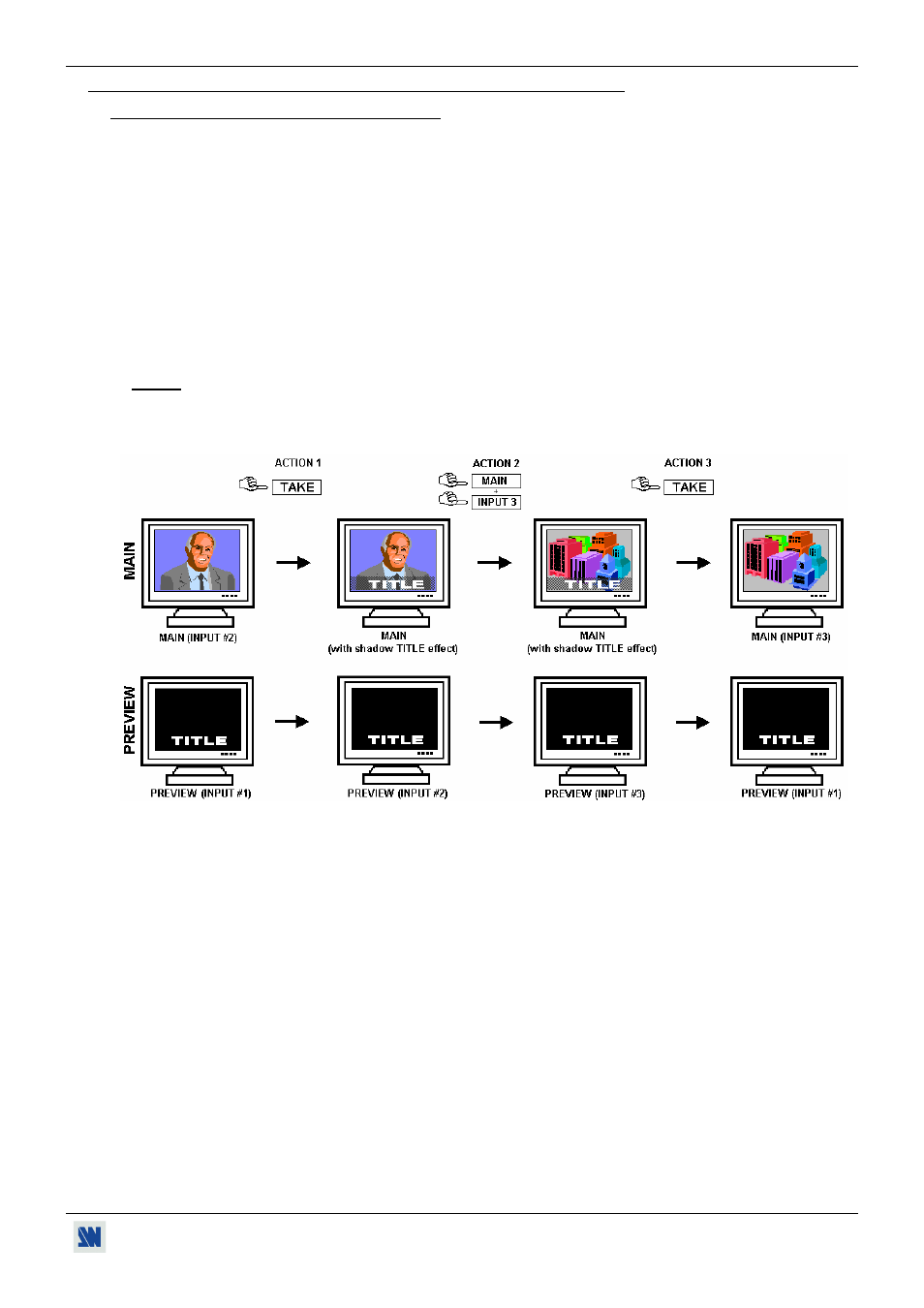

Figure 22: Title effect.
