Chapter 3 : OPERATING MODE (continued) Di-VentiX™
PAGE 36
3-2. OPERATING WITH THE FRONT PANEL OF THE Di-VentiX (continued)
3-2-2. OPERATING IN MATRIX MODE
• SETTINGS
We recommend resetting the Di-VentiX device to its default values, with the screen menu (CONTROL >
default value > yes) before proceeding.
Set the Di-VentiX in MATRIX MODE with the screen menu (MODE > matrix mode).
Select the input type connected to the inputs with the screen menu (INPUT > input type).
Do the following adjustments for the display device connected to the OUTPUT 1:
• Select the output sync according to your display device with the screen menu (OUTPUT X > output sync).
• Select the output rate mode with the screen menu (OUTPUT X > output rate).
• Select one of the output formats with the screen menu (OUTPUT X > output format).
NOTE: For fixed pixels display device (DMD, LCD, PLASMA…), always select the output format
corresponding to the native resolution of your display device. Thus, the display device will not have to
scale the image and the result will be better.
• Select the type of screen (4/3 or 16/9) with the screen menu (OUTPUT X > type of screen > 4/3 or 16/9),
according to your wall mounted projection screen shape.
Then renew the adjustments of the step for the display device connected to the OUTPUT 2.
• INPUT SELECTION
Pre-select an input on the OUT 1 or OUT 2 row. The button starts blinking.
Press on TAKE to display the pre-selected input onto the corresponding output. The transition operates with a
fading to black.
NOTE: You can switch simultaneously on the OUTPUT 1 & 2: do the operations for the OUTPUT 1, then do
the operations for the OUTPUT 2, finally press the TAKE button.
NOTE: To switch directly from the input select button (without pressing the TAKE button), you should activate the
auto TAKE function (CONTROL > auto TAKE: ON).

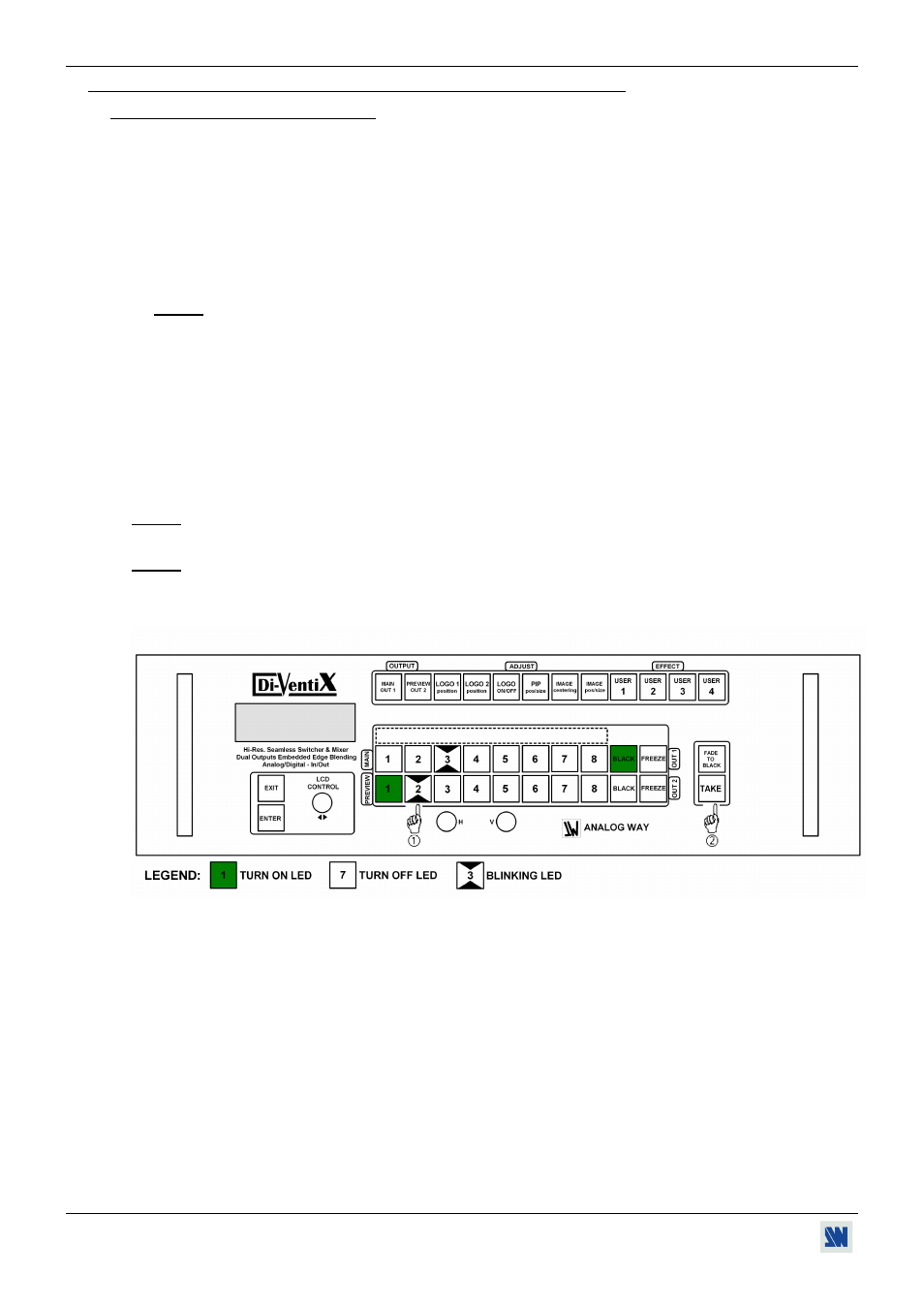

Figure 41
