Di-VentiX™ Chapter 3 : OPERATING MODE (continued)
PAGE 31
3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE (continued)
3-1-5. EMBEDDED EDGE BLENDING MODE (continued)
13) Using the PIP & double PIP effects in edge blending mode:
13-1) Store the frames (up to 3). The sources used for storing the frame should be Extend (use the freeze for
motion picture). For more details about storing a frame: see section 5-2.
13-2) Select a User effect button (PIP or double PIP).
13-3) Presses TAKE: the frame 1 is displayed, and the 2 BLACK buttons are switch ON. To change the frame:
click on the effect tab then click on the Background & inlay button, and select the needed frame.
13-4) To display PIPs: pre-select a source on the main and/or preview input rows and press TAKE: the sources
are displayed into PIPs onto the frame displayed in background. Do the PIP adjustments (size, position...)
in the Effects tab.
NOTE: To change a source into a PIP: pre-select a source on the corresponding row and press TAKE.
To switch off a PIP: pre-select the black button of the corresponding row and press TAKE.
13-5) Press TAKE to stop the effect: the device displays the last source which was displayed before doing this
effect.

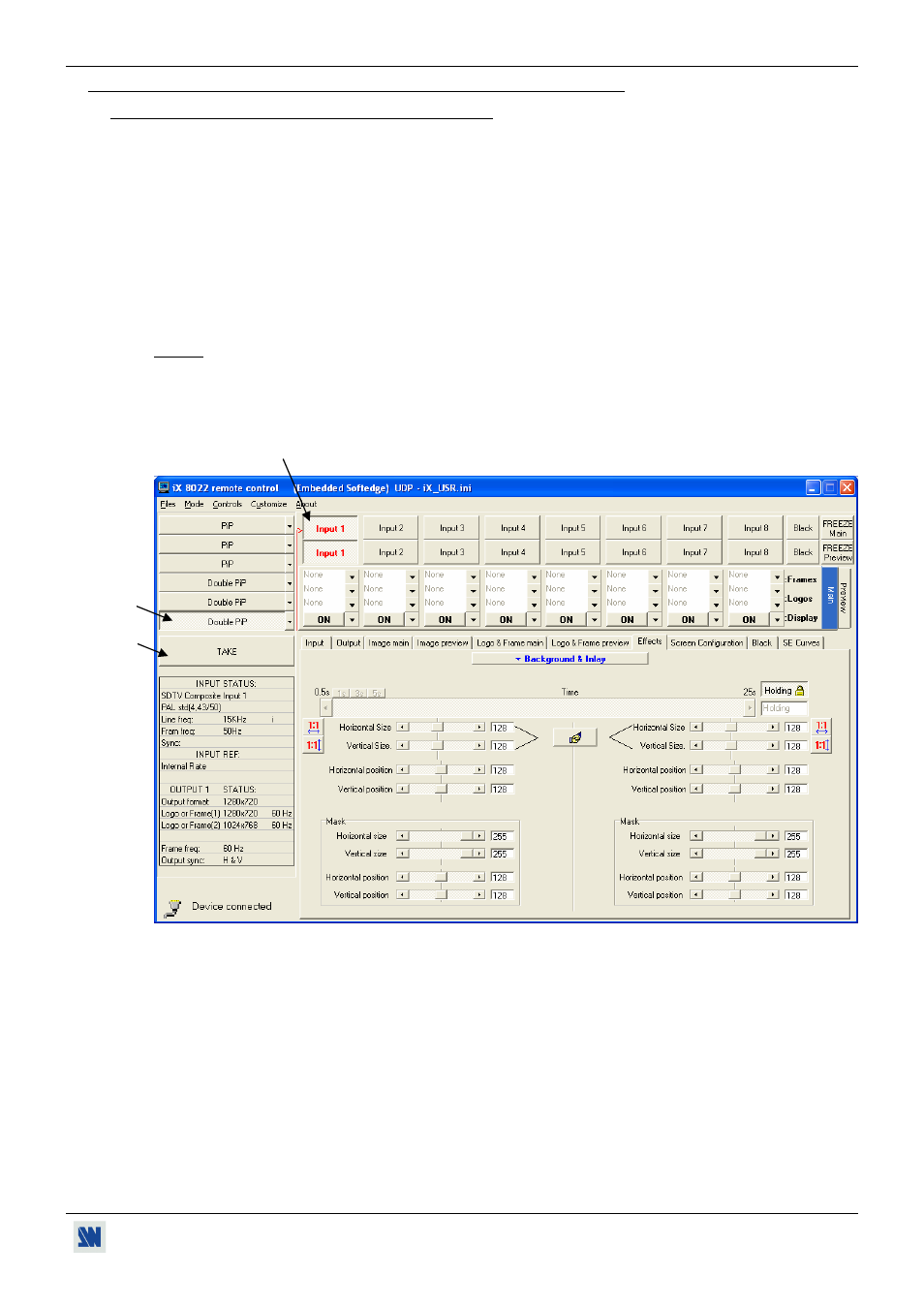

Figure 39
13-2
13-3
13-4
