Di-VentiX™
PAGE 48

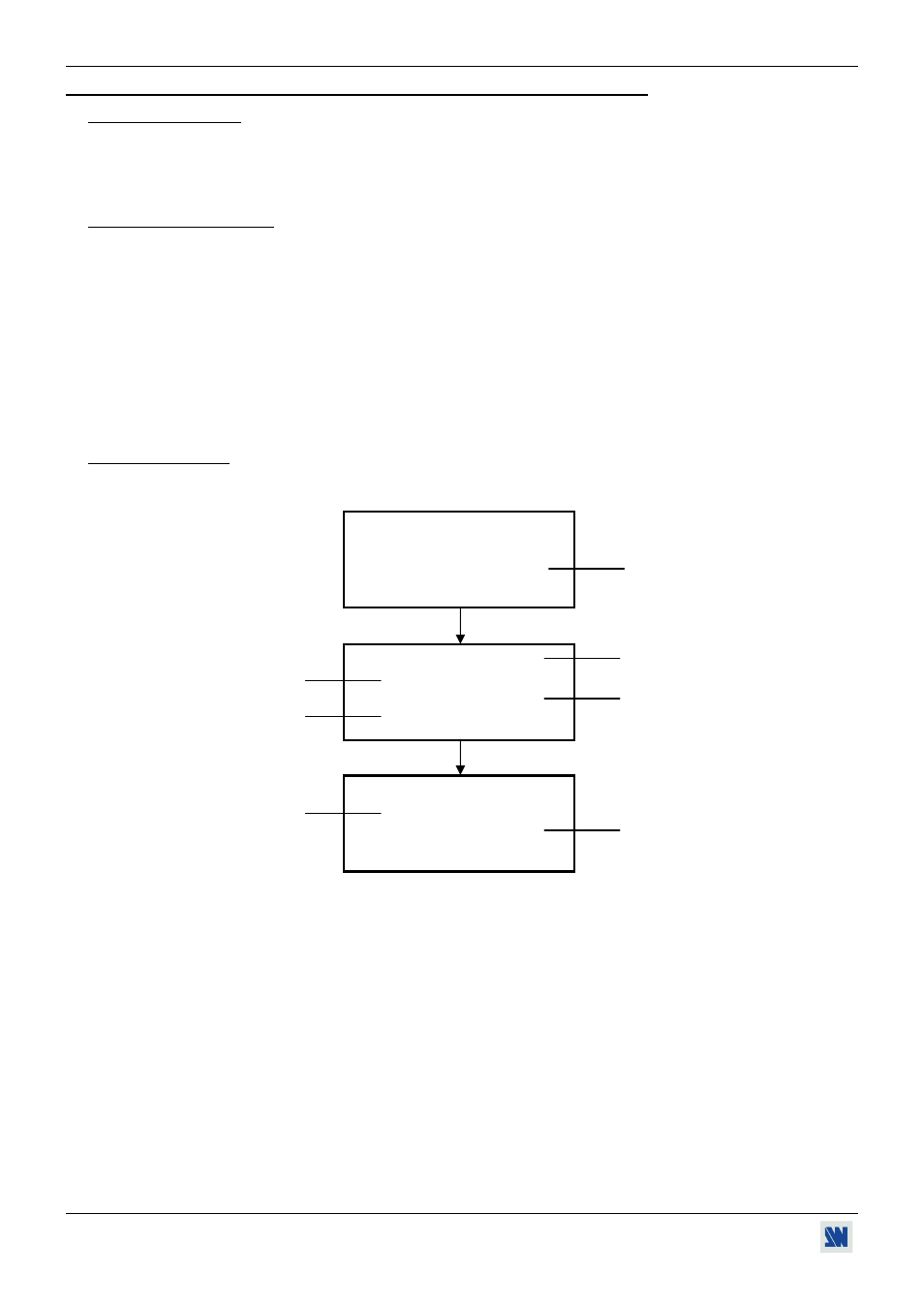

Chapter 6 : Di-VentiX & REMOTE KEYPAD SCREEN DESCRIPTION
6-1. INTRODUCTION
The front panel screen is composed of 2 modes: the STATUS MODE and the CONTROL MODE.
• The STATUS MODE indicates the input and the output status.
• The CONTROL MODE allows selecting and adjusting the parameters.
6-2. CONTROL BUTTONS
The front panel screen is controlled by 3 buttons:
 knob: To scroll thru the different menus.
EXIT MENU button: • From the STATUS MODE, press on this button to display the CONTROL MODE.
• From the CONTROL MODE, press on this button to:
- return to the previous menu without safeguarding the item.
- return to the STATUS MODE (press several times).
ENTER button: • From the STATUS MODE, press on this button to display the CONTROL MODE.
• From the CONTROL MODE, press on this button to confirm a selected item.
6-3. STATUS MODE
When switching ON the device, the front panel screen shows the product's name and status as follows:
Device version.
Input number displayed on MAIN.
Format/standard of the input displayed on MAIN.
Input number displayed on PREVIEW.
Format/standard of the input displayed on PREVIEW.
Output format/resolution.
Output rate mode/output rate frequency.
DI-VENTIX
DVX8022 V_._
main = 1
PAL = 15.6 K / 50Hz
preview = 2
NTSC = 15.7 K / 60 Hz
out = 1024x768
intern rate 60 Hz
