Di-VentiX™
PAGE 16
Chapter 3 : OPERATING MODE
3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE
Your Di-VentiX is shipped with a WINDOWS compatible software. This software allows you to control and do
adjustments by a simple mouse click.
3-1-1. SOFTWARE INSTALLATION
Turn your computer ON and wait for Windows to completely start.
Insert the CD-ROM into your drive: the ANALOG WAY home window will open automatically.
Select the language of the CD-ROM menus, then click on "Install a Remote Control Software and select a name
of your device.
IMPORTANT: If the autorun is not enabled: From the windows desktop, open My Computer and select the
CD-ROM drive. Select the Autorun folder, and then select the autorun.exe file.
Follow the Windows installation instructions.
3-1-2. COMMUNICATION SETUP
• CASE OF RS-232 PORT:
Connect the RS-232 cable between the Di-VentiX and the control device according to your installation, as
indicating in the section 2-2-1.
Then only power ON all of the devices.
Click on the program files iX8022 in Start > program >ANALOGWAY > iX8022 to run the software.
Click on Controls menu and select RS232/LAN setup, then:
- With the Controls menu of the software, select RS232/LAN setup, then select the COM port number
corresponding to the connection of the Di-VentiX
device.

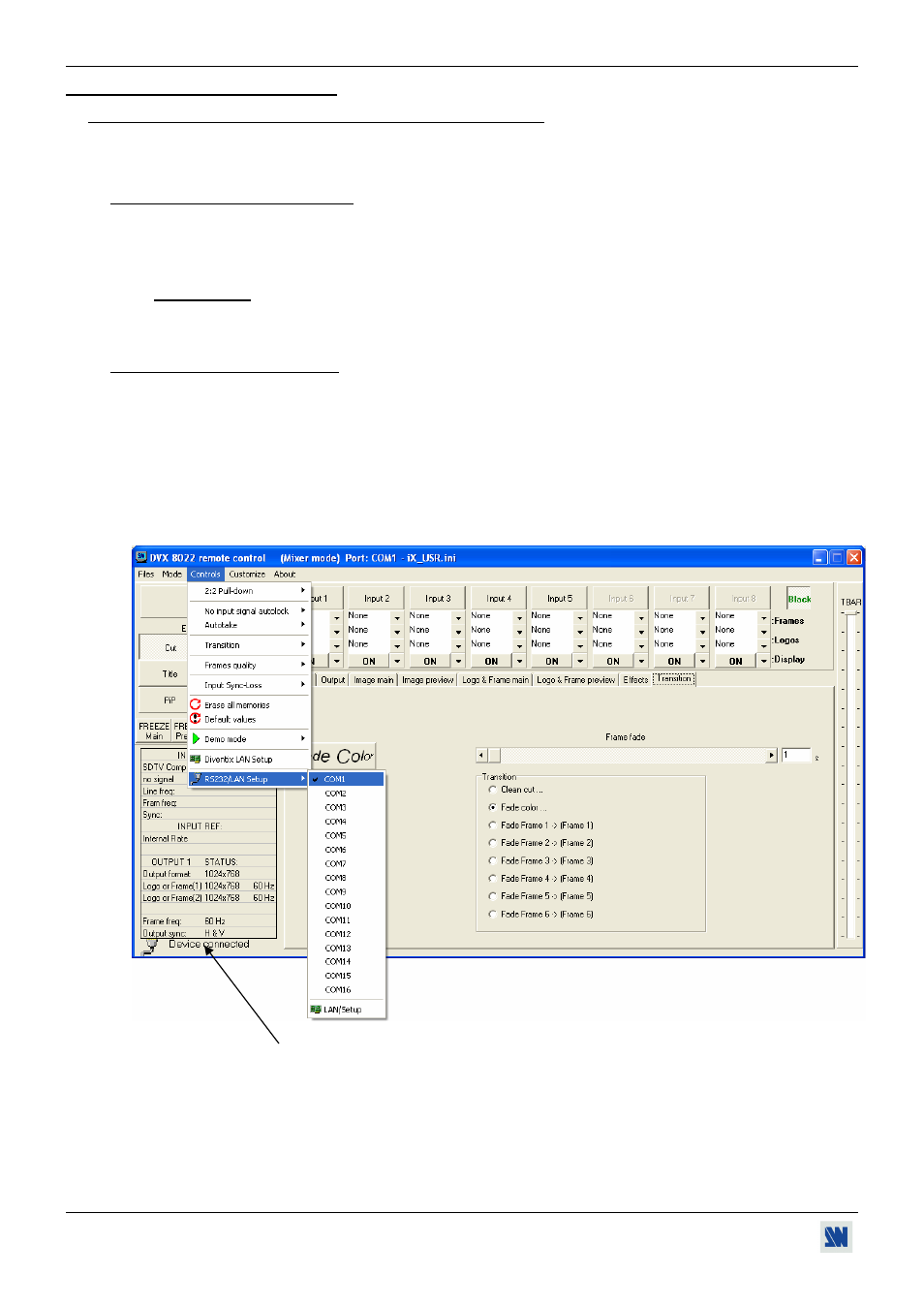

Figure 14
If the communication is OK, the message
"Device connected" is displayed.
