Chapter 2 : CONNECTING (continued) Di-VentiX™
PAGE 14
2-1. CONNECTING THE Di-VentiX (continued)
2-1-2. MAIN (OUTPUT 1) AND PREVIEW (OUTPUT 2) OUTPUTS
The device is equipped with 2 MAIN outputs on HD15 female connector, and two PREVIEW outputs on HD15
female connector. Connect the MAIN display device onto the MAIN output. Connect the monitoring devices onto
the MAIN & PREVIEW outputs.
2-1-3. OPTIONAL AUDIO INPUTS
The devices with the OPT-iX-A option are equipped with 8 audio inputs & 1 auxiliary input (on 5-pin MCO male
connectors). This connector allows connecting BALANCED or UNBALANCED audio sources. Connect your

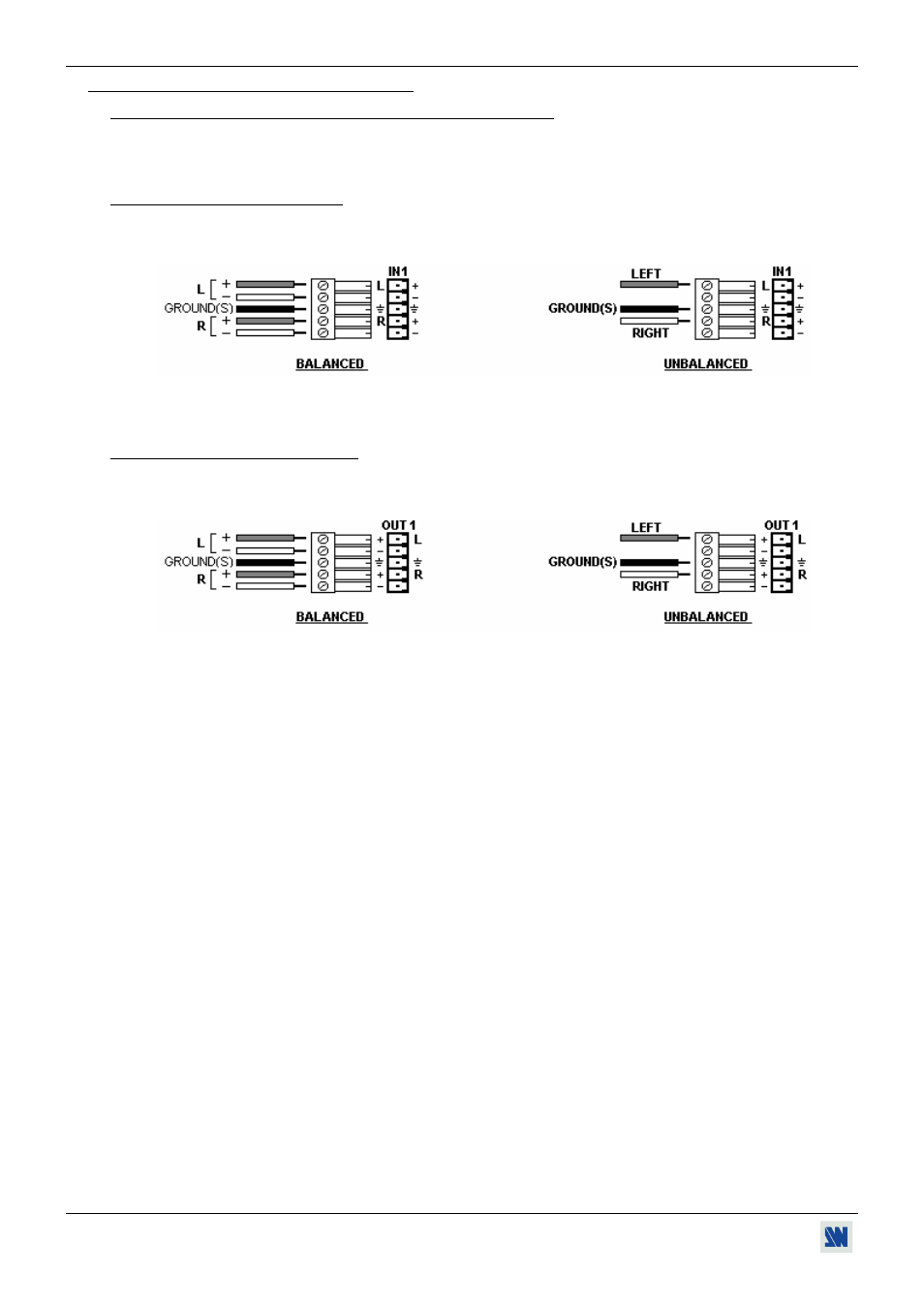

audio sources as follow:
Figure 10
2-1-4. OPTIONAL AUDIO OUTPUTS
The devices with the OPT-iX-A option are equipped with 2 audio outputs (MAIN / OUT1 & PRELIST / OUT2 on
5-pin MCO male connectors). This connector allows connecting BALANCED or UNBALANCED audio systems.
Connect your audio systems as follow:
Figure 11
