Chapter 3 : OPERATING MODE (continued) Di-VentiX™
PAGE 32
3-2. OPERATING WITH THE FRONT PANEL OF THE Di-VentiX
IMPORTANT: The Di-VentiX can be used in two different modes: the MIXER MODE and the MATRIX MODE.
The MIXER MODE allows switching seamlessly, fading and titling between all the inputs. The
MATRIX MODE allows to display the inputs onto two independents display devices. The default
mode is the MIXER MODE. To set the Di-VentiX in MATRIX MODE, please refer to the section:
3-2-2.
3-2-1. OPERATING IN MIXER MODE
• SETTINGS
We recommend resetting the Di-VentiX device to its default values, with the screen menu (CONTROL >
default value > yes) before proceeding.
Verify the Di-VentiX is set in MIXER MODE with the screen menu (MODE > mixer mode).
Select the input type connected to the inputs with the screen menu (INPUT > input type).
Select the output sync according to your display device with the screen menu (OUTPUT > output sync).
Select the output rate mode with the screen menu (OUTPUT > output rate).
Select one of the output formats with the screen menu (OUTPUT > output format).
NOTE: For fixed pixels display device (DMD, LCD, PLASMA…), always select the output format corresponding
to the native resolution of your display device. Thus, the display device will not have to scale the image
and the result will be better.
Select the type of screen (4/3 or 16/9) with the screen menu (OUTPUT > type of screen > 4/3 or 16/9),
according to your wall mounted projection screen shape.
• INPUT SELECTION
Select an input with the PREVIEW row buttons.
Select an effect with the EFFECT buttons.
Press on TAKE to do the transition.

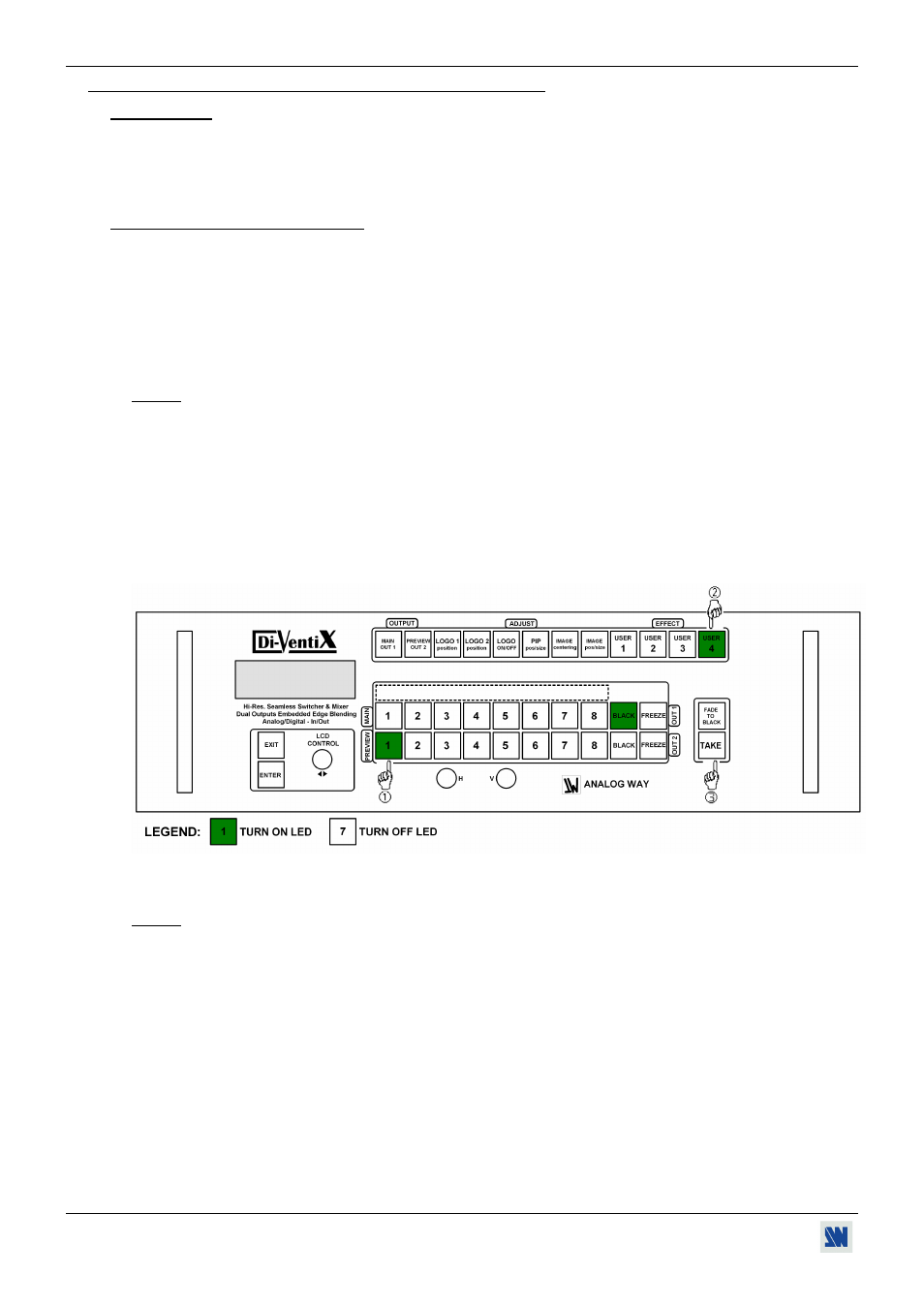

Figure 40
NOTE: According to the selected effect the TAKE button may turn ON or blink during the transition. When the
TAKE button is turned ON you should wait for the end of the transition before doing another selection.
When it is blinking, you should press the TAKE button to stop the transition.
