Di-VentiX™ Chapter 5 : USING FRAME STORE AND LOGO INSERTION (continued)
PAGE 45
5-1. USING LOGO INSERTION WITH THE REMOTE CONTROL SOFTWARE (continued)
5-1-6. EXAMPLE OF LOGO INSERTION

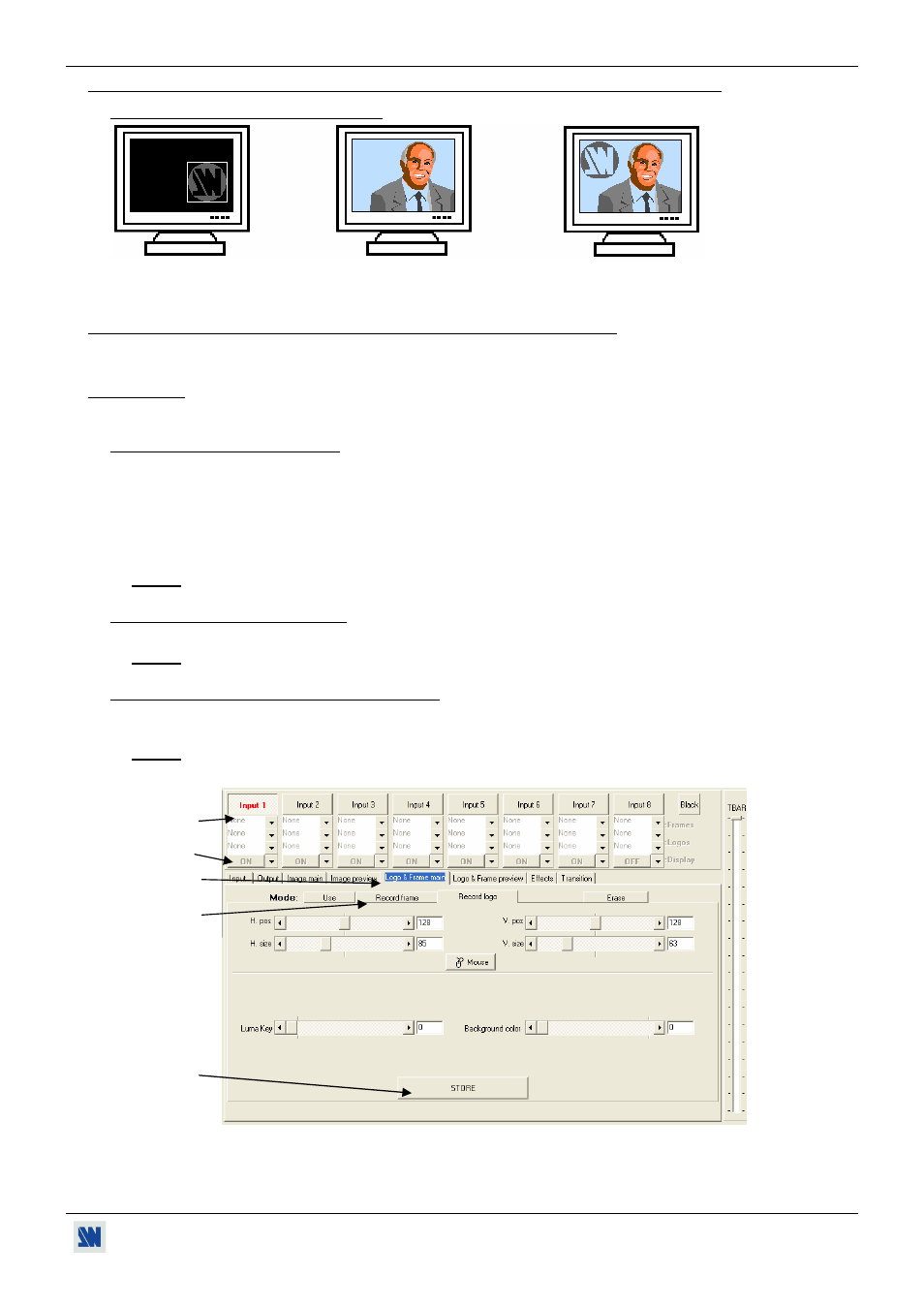

Figure 46
Logo source Video source Video source with inserted logo.
(white border = logo area) (logo made with luma key)
5-2. USING FRAME STORE WITH THE REMOTE CONTROL SOFTWARE
This function allows memorizing up to 6 frames (up to 3 in embedded SEB mode) in order to display it at any time during
the show.
IMPORTANT: The output format used when displaying the frame should be the same that the output format used during
the frame storing.
5-2-1. HOW TO STORE A FRAME
Click on the Logo & Frame main tab to record the frame from the MAIN output or click on the Logo & Frame
preview tab to record the frame from the PREVIEW output.
Then click on the Record frame tab: the device displays a white rectangle corresponding to the frame selection area
onto the output. As required adjust the position and size of the frame area with the position & size functions.
Adjust the Luma Key level to get to the desired Luma Keying.
Click on STORE to store the frame into a memory. The memorization starts and will take about 2 minutes.
NOTE: For motion picture, you can use the FREEZE function, before doing the memorization.
5-2-2. HOW TO ASSIGN A FRAME
In the assignment table, assign a frame to the needed inputs.
NOTE: To remove the frame of an input, select none in the corresponding window.
5-2-3. HOW TO DISPLAY ON or OFF the FRAME
To display ON or OFF the assigned frame of an input, click on the display button of the corresponding input to
change the status (ON or OFF). The frame appears onto the output, instead of the source connected to this input.
NOTE: When displaying ON or OFF a frame, this one appears/disappears with a fade effect. You can adjust the
duration of the fade effect with the Frame fade duration function of the Control menu.
Figure 47
