Di-VentiX™
PAGE 44
Chapter 5 : USING FRAME STORE AND LOGO INSERTION
5-1. USING LOGO INSERTION WITH THE REMOTE CONTROL SOFTWARE
This function allows storing up to 8 logos in order to incrust them into the displayed image (up to 2 logos at a same time).
IMPORTANT: The output format used when displaying logo should be the same that the output format used during the
logo storing.
5-1-1. HOW TO STORE A LOGO
Click on the Logo & Frame main tab to record the logo from the MAIN output or click on the Logo & Frame
preview tab to record the logo from the PREVIEW output.
Then click on the Record logo tab: the device displays a white rectangle corresponding to the logo selection area
onto the output. Then adjust the position and size of the logo area with the position functions.
NOTE: The logo area is limited to an eighth (1/8) of the displayed area.
As required, adjust the luma key level. This function allows to "erasing" the darkest portions of the logo selection
area in order to make special logo contour. Otherwise set the luma key level to zero.
NOTE: You can change the color of the "erased portions" of the logo with the background color function.
Click on STORE to store the logo into a memory. The memorization of the logo starts and will take about few
seconds.
NOTE: Renew the steps to to store another logo (up to 8).
5-1-2. HOW TO ASSIGN A LOGO
NOTE: You can assign the stored logos to one or many of the 8 inputs (up to 2 logos by inputs).
In the assignment table, assign for each input the needed logos.
NOTE: To remove a logo of an input, select none in the corresponding window.
5-1-3. HOW TO DISPLAY OFF or ON A LOGO
To display OFF or ON the assigned logos of an input, click on the display button of the corresponding input to
change the status (ON or OFF).
NOTE: When displaying ON or OFF a logo, this one appears/disappears with a fade effect. You can adjust the
duration of the fade effect with the Frame fade duration function of the Control menu.
5-1-4. HOW TO ADJUST THE LOGO POSITION
Select the input of the logo to adjust (with the INPUT SELECTION buttons).
Click on the logo to adjust, and then click on the use tab of the Logo & frame window. Then adjust the logo
position with the H &V position functions.
NOTE: When you are using 2 logos by input, make sure to not superpose a logo onto an other one. In case of
superposition, the logo areas will appear colored.
5-1-5. HOW TO ADJUST THE LOGO TRANSPARENCY
To adjust the logo transparency: click on the arrow in assignment table and move the scroll bar.

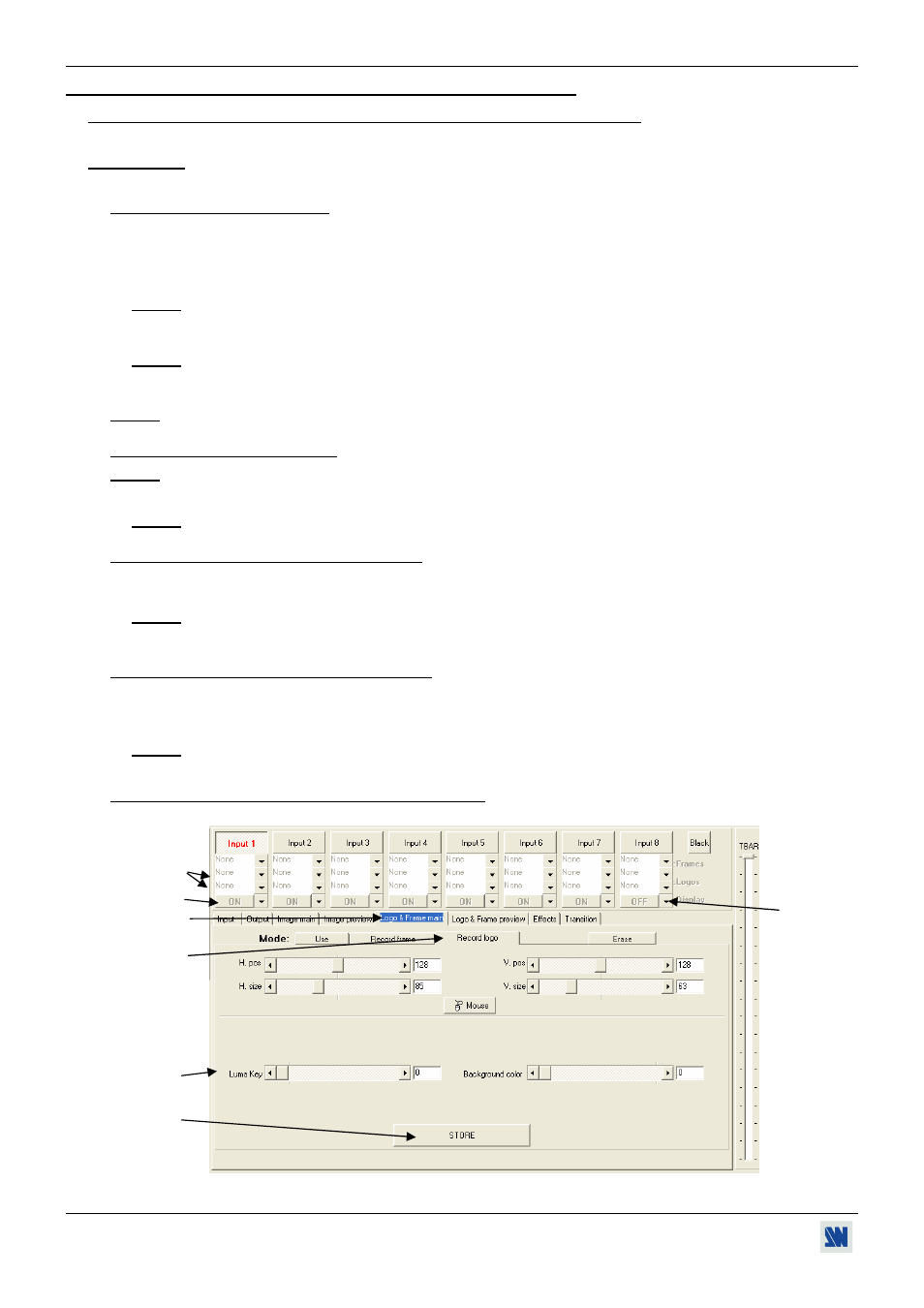

Figure 45
