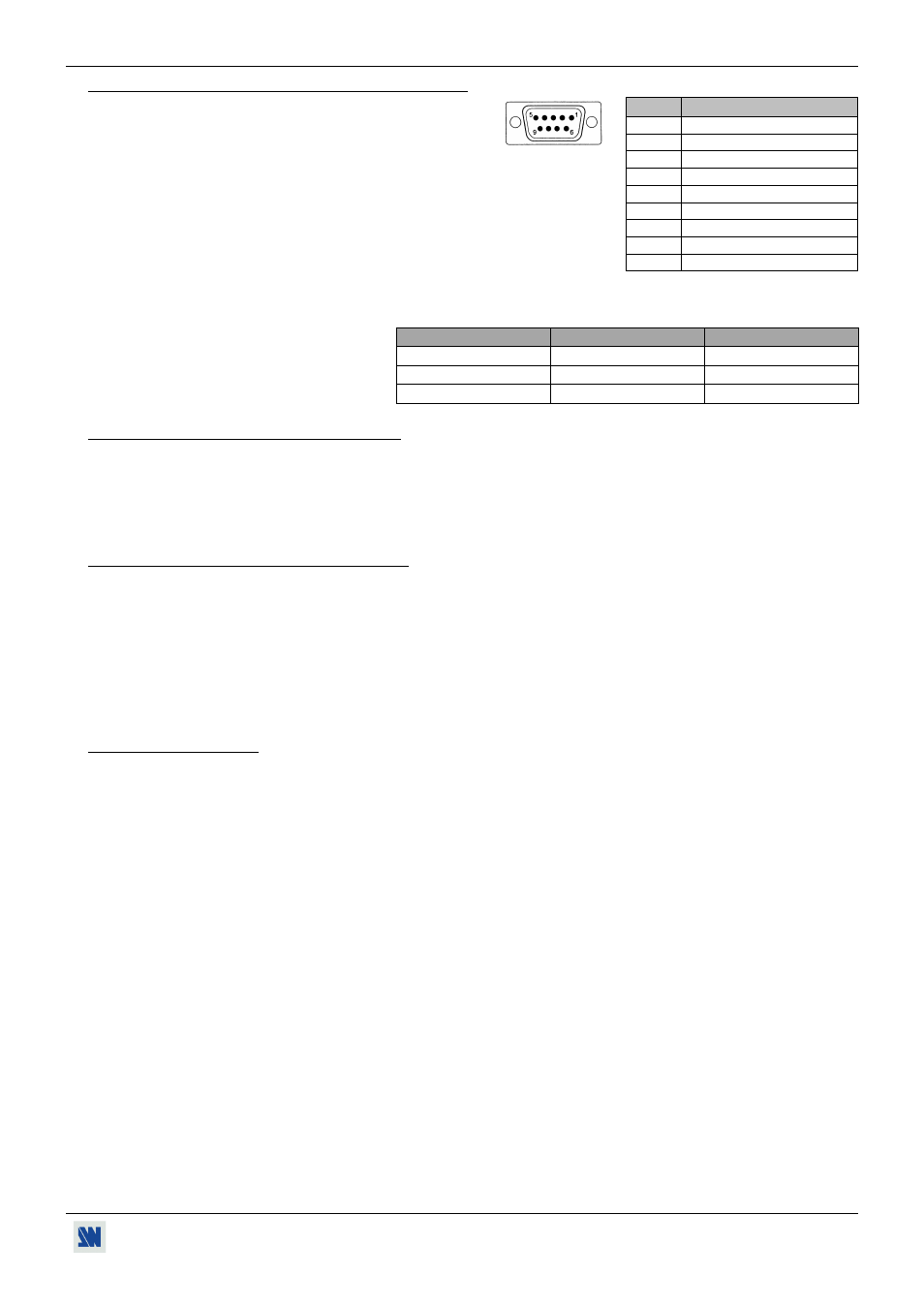

Di-VentiX™ Chapter 7 : TECHNICAL SPECIFICATIONS (continued)
PAGE 67
7-3. COMMUNICATION PORTS & TALLY OUTPUTS
• REMOTE RS-232 (on DB 9 female connector)
Level: RS-232.
Data Rate: 9600 Bauds, 8 data bits, 1 stop bit,
no parity bit, no flow control.
• TALLY OUT (on DB 9 female connector)
Rating: 20 Vdc MAX, 50 mA MAX (open collector).
• LAN (on RJ45 connector)
Protocol: UDP (User Datagram Protocol) or TCP (Transmission
Control Protocol).
Data Rate: 10 / 100 Mbps.
LED functions (on RJ45 connector):
Top LED Bottom LED Meaning
OFF OFF No link
OFF ON 100 BASE-T link.
ON OFF 10 BASE-T link.
7-4. OPTIONAL AUDIO INPUTS (OPT-iX-A)
• 9 Balanced and unbalanced stereo inputs (on 5-pin MCO male connector).
• Vi = + 18 dBu (max).
• Zi = 20 kΩ unbalanced.
• Zi = 40 kΩ balanced.
7-5. OPTIONAL AUDIO OUTPUT (OPT-iX-A)
• 2 Balanced and unbalanced mono/stereo outputs (on 5-pin MCO male connector).
• Vo max: Unbalanced = + 18 dBu (+12 dBu with 300Ω load).
Balanced = + 24 dBu (+18 dBu with 600Ω load).
• Zo = 600 Ω balanced.
• Zo = 300 Ω unbalanced.
• G = 0 dB nominal.
• G = + 6 dB / - ∞ adjustable with Master volume.
7-6. ENVIRONMENTAL
Power: 100 VAC to 240 VAC ; 50-60 Hz ; 130 watts, internal, auto-switchable.
Storage Temperature: -25 °C to +85 °C (-13 °F to +185 °F).
Operating temperature: 0 °C to 50 °C (32 °F to 122 °F).
Maximum ambient operating temperature: < 40 °C ( < 104 °F).
Hygrometry:
10% to 80% (without condensation).
Dimension: W 480 x D 420 x H 133 mm / 19”W x 16.5”D x 5.25”H.
(Compatible with a Standard 19” rack, Height = 3 U).
Weight: DVX8022: 8 kg / 17.6 lbs.
OPT-iX-A: + 0.5 kg / 1.1 lbs.
PIN # FUNCTION
1 tally # 1
2 Tx (transmit data)
3 Rx (receive data)
4 reserved for manufacturer
5 Ground
6
tally # 2
7 NC
8
reserved for manufacturer
9 tally # 3
DB9 Female
connector
