2.2.8.11 - SKIN button
Used to make SKIN range adjustments.
The SKIN function is used to associate a detail level with a
given colour of the image.
Two colours can be stored, SKIN 1 and SKIN 2. The same
detail level is applied to both colours.
The principles described in this manual for SKIN 1 apply to
SKIN 2.

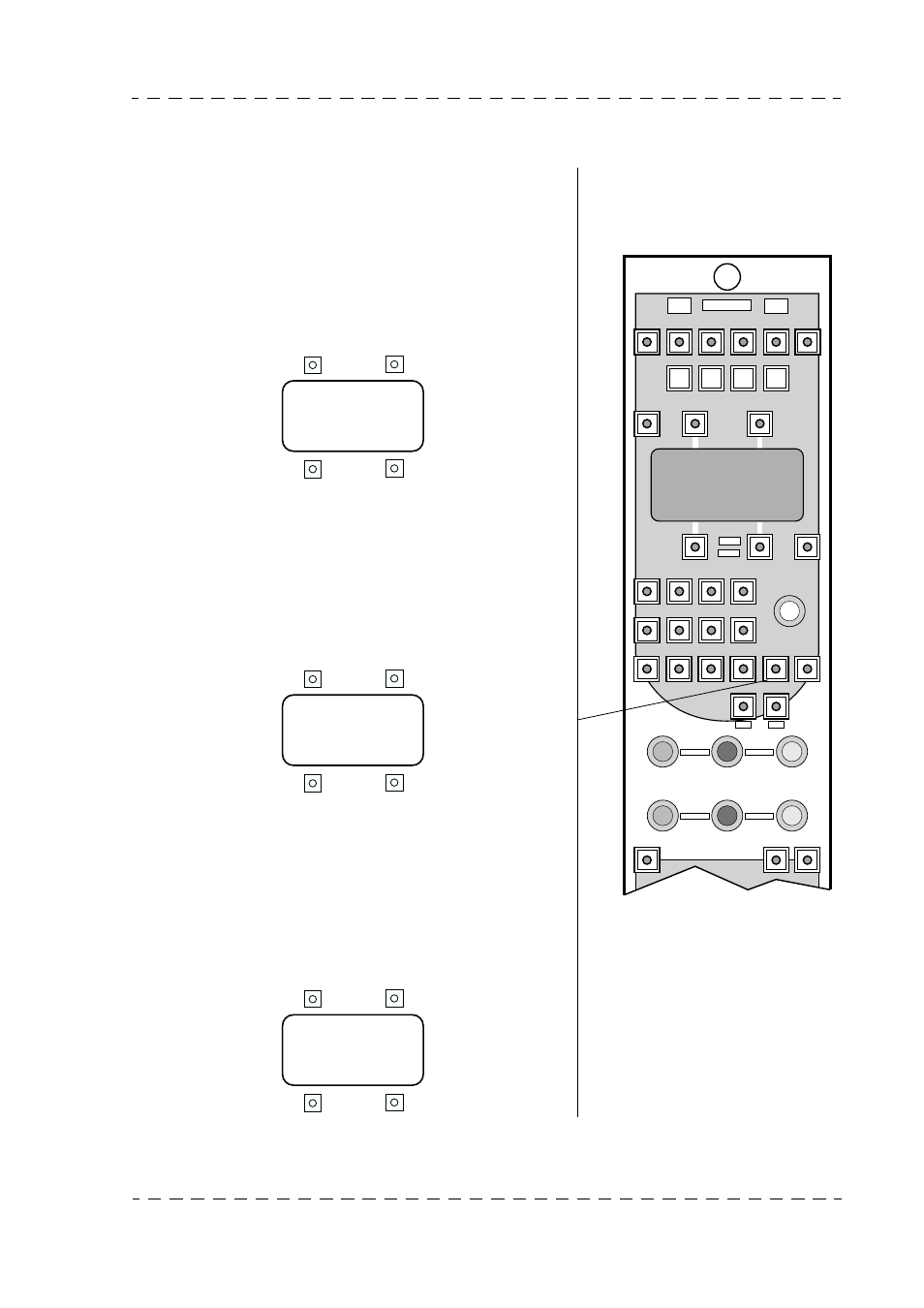

Press SKIN to obtain the following page:
This page is used to:
• SKIN 1: By pressing the button over SKIN 1, SKIN 1
function on/off with the parameters defined in SKIN 1 ADJ.
• SKIN 2: By pressing the button over SKIN 2, SKIN 2
function on/off with the parameters defined in SKIN 2 ADJ.
Operation of the button below SKIN 1 ADJ displays the
SKIN 1 setting page:
This page is used to:
• SKIN 1: Operation of the button under SKIN 1 switches
the SKIN 1 function on and off.
• SKIN LVL: Adjustment of detail level of SKIN 1 or
SKIN 2 colour.
• SKIN IND: Press the button beneath SKIN 1 to display
the following page:
