Chapter 2 - OCP 42/OCP 50 Operating Instructions 141
Description of pushbuttons
THOMSON OCP 42/OCP 50
User manual
B1500M24LA
September 2000

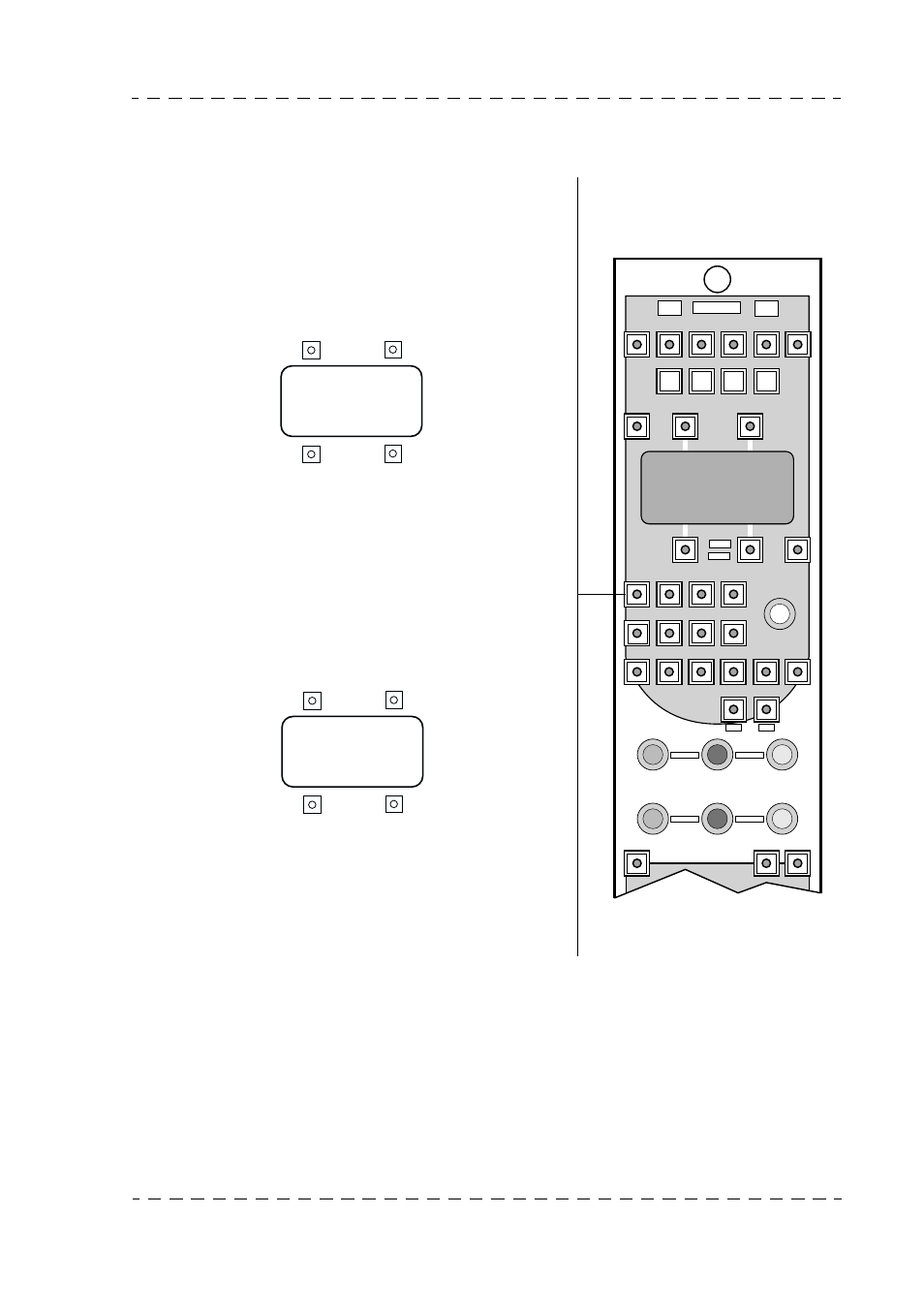

2.2.7.7 - PRESET button
The «PRESET» button is generally used to position the
various operating parameters to a standard value (works or
maintenance defined).
There are 2 types of PRESET:
1. PRESET selected via MENU:
Press the PRESET button to obtain the first «PRESET»
page.
Sustained operation of the PRESET buttons and:
• DETAIL: DTL LEVEL, SOFT LEVEL, SOFT DTL,
DIAG DTL, PEAK FREQ «Preset».
• KNEE: «Preset» KNEE LEVEL and imposed KNEE =
MANU and ON.
• SATURATION: 100% saturation level «Preset».
• PEDESTAL: Master Black «Preset».
With the 1st «PRESET» page displayed, press NEXT to
obtain the 2nd «PRESET» page.
Simultaneous operation of the PRESET buttons and:
• FLARE RGB: Preset of 3 RGB FLARE corrections.
• CORING: CORING «Preset».
• LEVEL DEP: LEVEL DEP «Preset».
• GAMMA: GAMMA «Preset».
D E T A I L KN E E
SAT URA T I ON P E D E S T A L
FLAR E RGB COR I NG
GAMMA L E V E L D E P
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
FINE
ADJUST
SKIN MEMORY
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
