Chapter 2 - OCP 42/OCP 50 Operating Instructions 149
Description of pushbuttons
THOMSON OCP 42/OCP 50
User manual
B1500M24LA
September 2000
This page can be used to alter the following parameters:
• DFZ WIDE: Adjustment of detail level for the zoom
wide angle position.
• DFZ TELE: Adjustment of detail level for the zoom
telelens position.
• DFZ: DFZ function ON/OFF (ON/OFF switching is
made directly with the corresponding operating button).

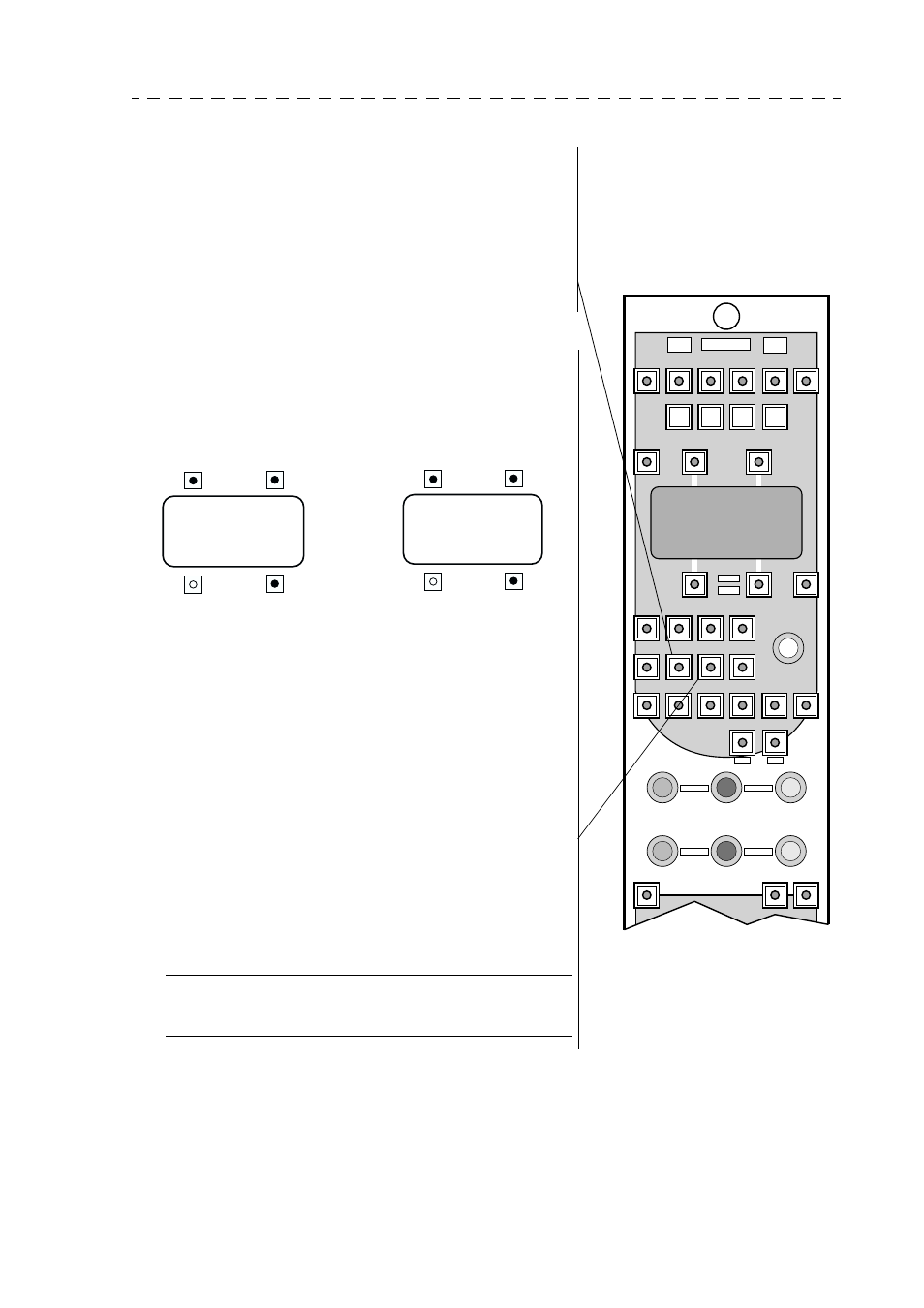

2.2.8.6 - BLACK button
Used to enable adjustment of the BLACK range settings.
Press the button to display the 1st setting page. This page
depend on the partial black controls assignment. Refer to
the INSTALLATION chapter, 1.7.3 - Setting up the OCP
paragraph.
The three button indicator lights corresponding to the
FLARE or partial blacks settings light.
The ASSIGNED lights, indicating that the R, G, B partial
black control are assigned to this range, light.
This page is used to modify the following parameters:
• If the partial black controls ara assigned to partial black
level adjustments
- FLARE R: Red channel FLARE adjustment by
varying the red partial black control.
- FLARE G: Green channel FLARE adjustment by
varying the green partial black control.
- FLARE B: Blue channel FLARE adjustment by
varying the blue partial black control.
NOTE: The ADJUST control is used to adjust the
"MASTER" FLARE R, G, B.
F L AR E R F L AR E G
X X X X
O F F X X
AB L F L AR E B
B L A C K R B L A C K G
X X X X
O F F X X
A B L B L A C K B
or
Controls assigned to
partial blacks
Controls assigned to
FLARE
LOCK
F1
EXIT
NEXT
GAMMA
DETAIL FILTERS
WHITE BAL
AUTO IRIS
LIMIT
ACTIV CCU STATUS BARS SETTING CALL
F2 F3 F4
COLOUR
KNEE
PRESET
BLACK DFZ STORE
RECALL
GAIN
SHUTTER
BLACK BAL
ENABLE
GAIN
BLACK
LIMIT
CTRL
DIAG
ON AIR 1 ON
AIR 2
PRE
VIEW
FINE
ADJUST
SKIN MEMORY
ASSIGNED ASSIGNED
ASSIGNED ASSIGNED
