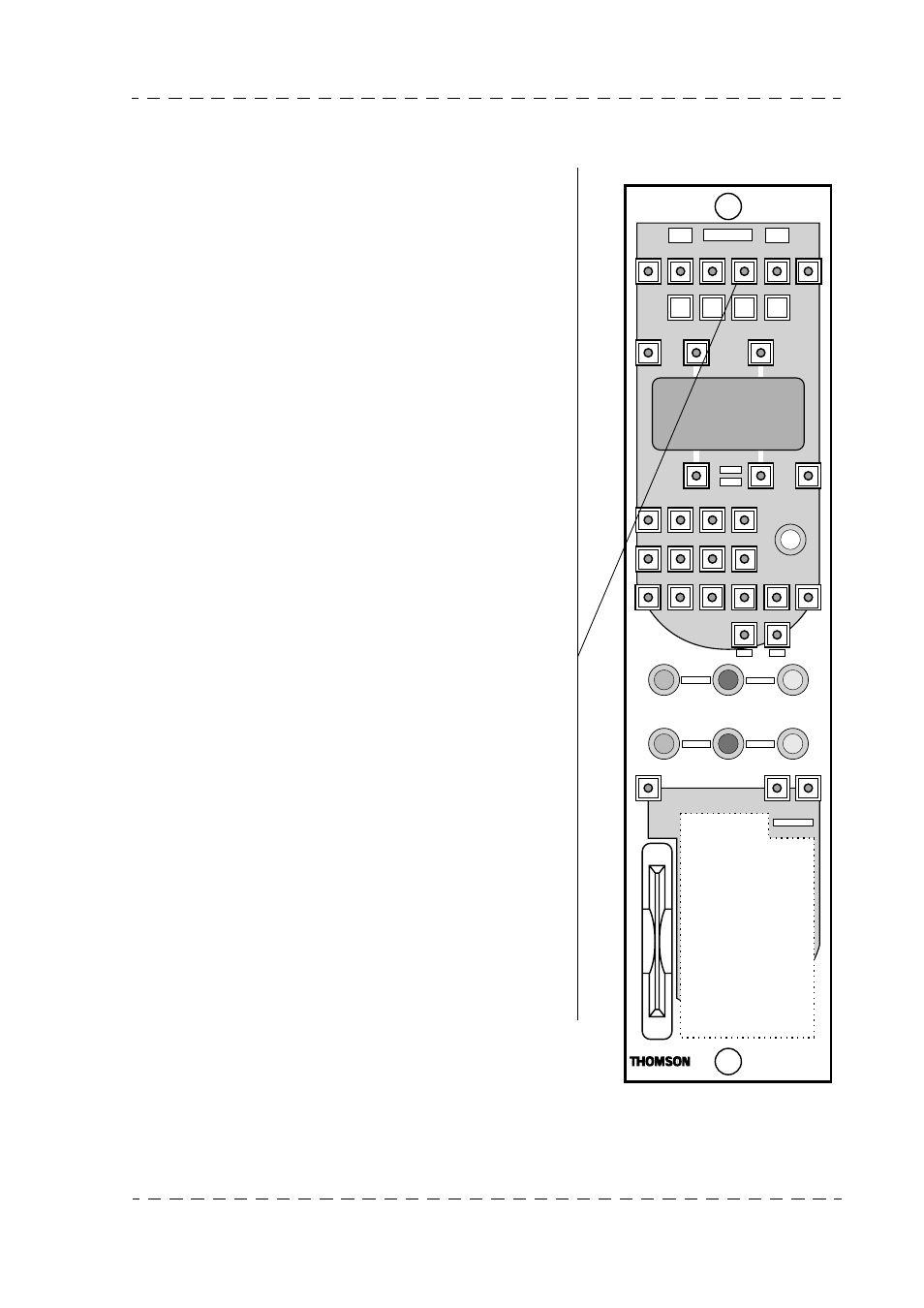

2.2.7.4 - BARS button
This button activates the various test signals. The test
signal available at the equipment output depends on some
of the «PM» monitoring settings (see CCU «SETTING
UP» in the Installation chapter of this manual).
Having selected the camera picture video:
• Press the button once to select the bar pattern video:
CCU 1685 CCU1686
- Camera bar pattern on analog and digital outputs if
«PM» monitoring setting is other than «ENC».
- Camera bar pattern on analog outputs and CCU
synthetic bar pattern on digital outputs if «PM»
monitoring setting is «ENC».
CCU 1542 APCM
- Camera bar pattern on outputs if «PM» monitoring is
other than «ENC».
- CCU bar pattern on «PM» monitoring outputs if
«ENC» selected.
CCU 1625 ou DT500
- Camera bar pattern at outputs whatever the «PM»
monitoring setting.
• 2nd operation of the button selects the test video:
CCU 1685 CCU1686
- Camera test video on analog and digital outputs if the
«PM» monitoring selected is other than «ENC».
- Camera test video on analog and CCU synthetic test
video on digital outputs if the «PM» monitoring setting
is «ENC».
CCU 1542 APCM
- Camera test video on outputs whatever the «PM»
monitoring setting.
CCU 1625/DT500
- Camera test video on outputs whatever the «PM»
monitoring setting.
• 3rd operation of the button is used to return to the
camera image video.
